GIGABYTE B550M X AORUS ELITE AM4 4xDDR4 HDMI DP 2xM.2
|
108,85 EUR |
|
|
( 129,53 EUR incl. VAT ) ≈ £91.11 | ≈ $121.37 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 215400 |
| Mfg Part No: | B550M X A ELITE |
| UPC/EAN: | 4719331883416 |
| Weight: | 1.95 kg |

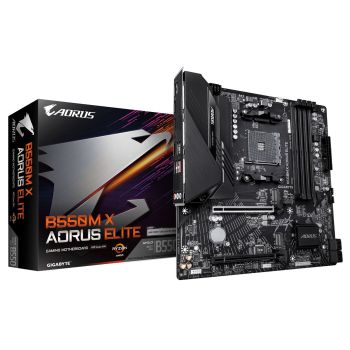

Product information for Gigabyte B550M X A ELITE:
GIGABYTE B550M X AORUS ELITE Mainboard, AMD B550, AM4, DDR4 (B550M X A ELITE) – Das kompakte micro-ATX-Mainboard bietet eine leistungsfähige Basis für Desktop-PCs mit AMD Ryzen™ Prozessoren der Serien 3000, 4000 und 5000. Der AMD-B550-Chipsatz und der AM4-Sockel ermöglichen eine flexible Systemkonfiguration. Vier DDR4-DIMM-Steckplätze unterstützen bis zu 128 GB Arbeitsspeicher im Dual-Channel-Betrieb und bieten Unterstützung für XMP. Für schnelle Grafikkarten steht ein PCIe-4.0-x16-Steckplatz zur Verfügung, während zwei M.2-Schnittstellen schnelle NVMe-SSDs ermöglichen. Ein Realtek-2,5-GbE-LAN-Controller sorgt für schnelle Netzwerkverbindungen. HDMI und DisplayPort sowie USB- und SATA-Anschlüsse runden die vielseitige Ausstattung ab.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| Expansion slots | |
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Graphics | |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| TPM connector | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 1.04 kg |
| Packaging content | |
| Batteries included | |
| Screws included | |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 2.26 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 3.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
