GIGABYTE B550I AORUS PRO AX AM4 DDR4 2xM.2 4xSATA WiFi DP HDMI mITX MB
|
137,60 EUR |
|
|
( 163,74 EUR incl. VAT ) ≈ £115.31 | ≈ $154.52 plus delivery charges: 53,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 363307 |
| Mfg Part No: | B550I AORUS PRO AX |
| UPC/EAN: | 4719331809508 |
| Weight: | 1.313 kg |

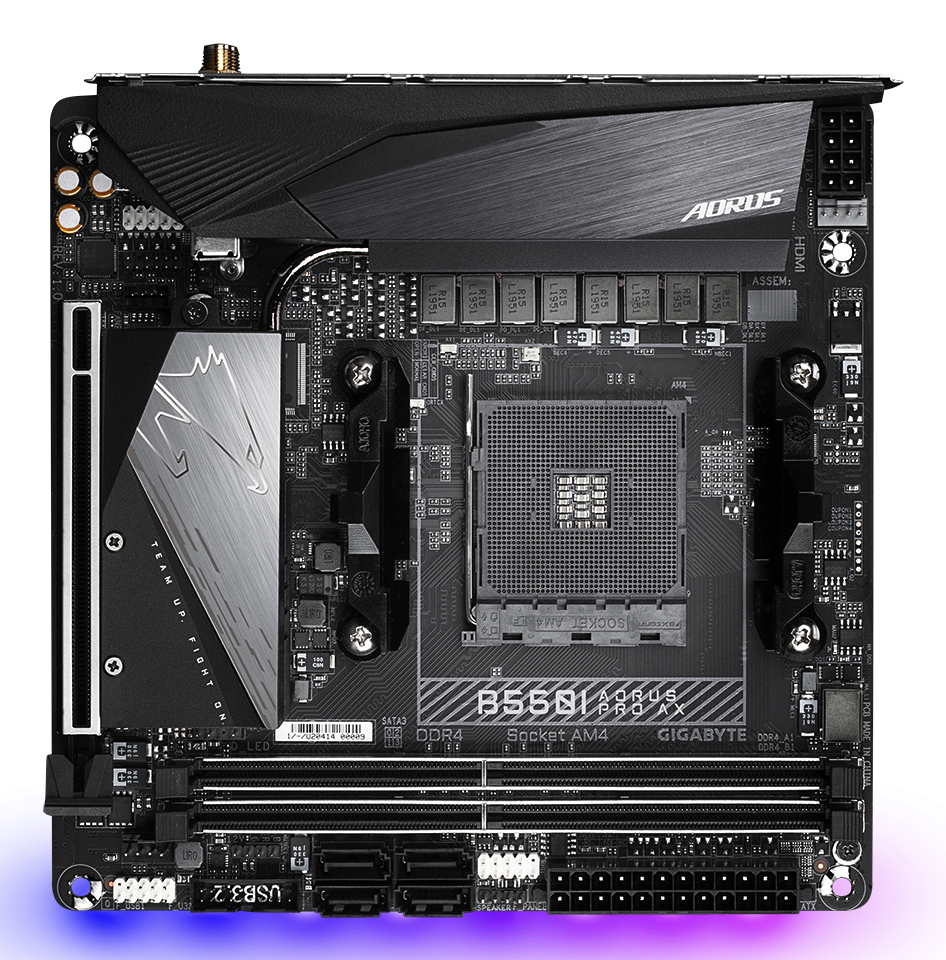

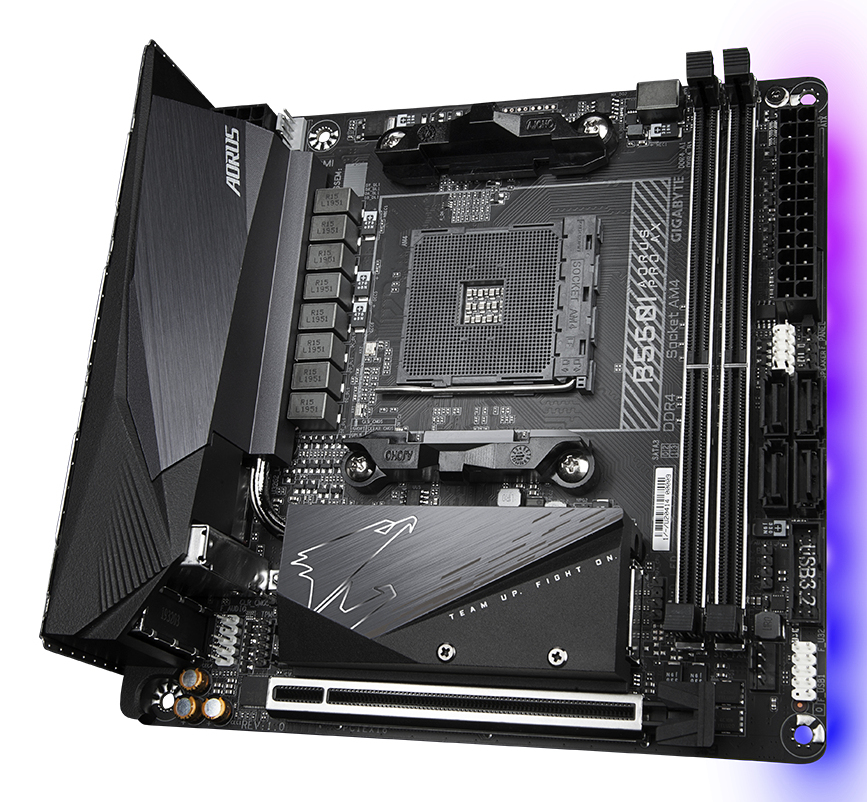

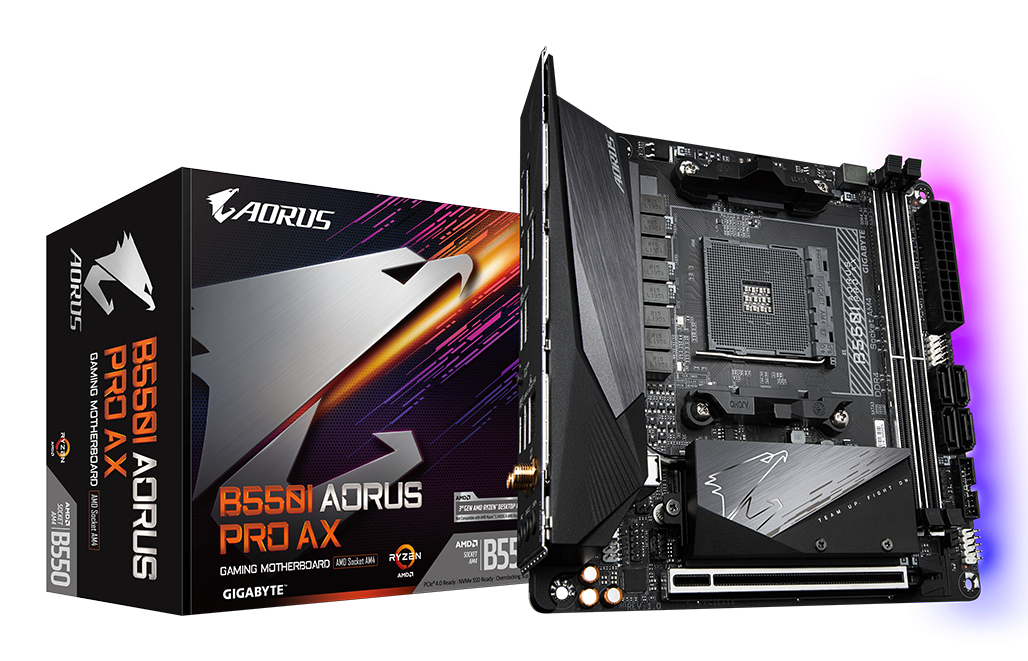

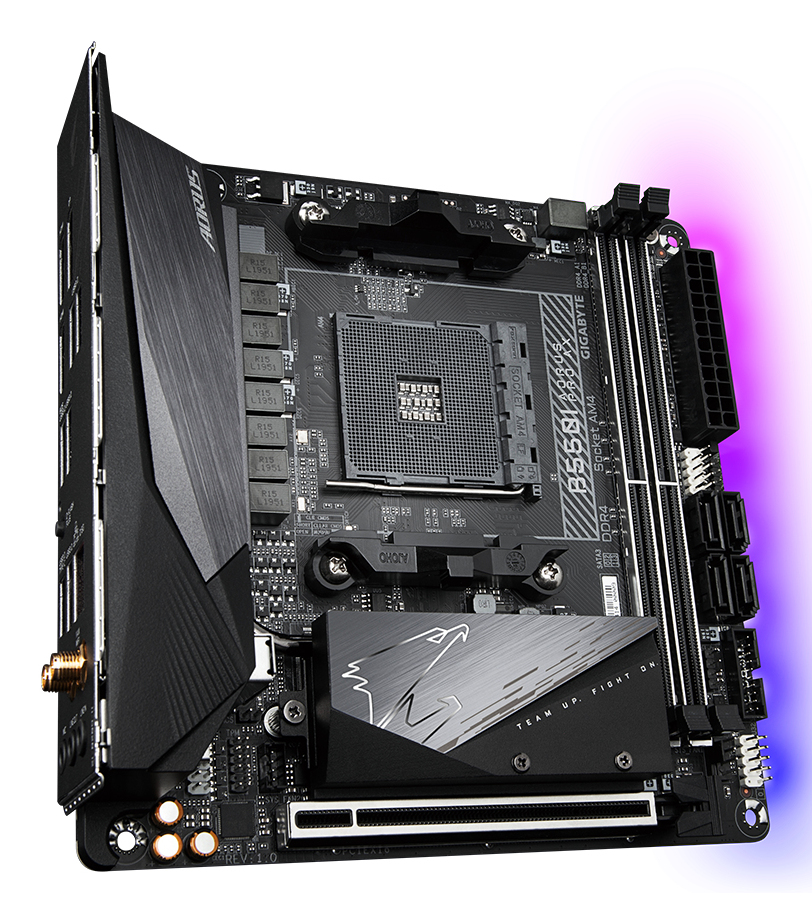

Product information for Gigabyte B550I AORUS PRO AX:
Das B550I AORUS PRO AX ist ein Mini-ITX-Mainboard, ideal für den Bau eines kompakten PCs, der hohe Leistung bietet und zugleich optisch ansprechend ist. Trotz seiner geringen Größe liefert dieser leistungsstarke PC beeindruckende Performance mit modernster CPU, Grafikkarte und ultraschnellen Verbindungsmöglichkeiten. Darüber hinaus verfügt es über eine umfassende Kühlungslösung, um auch bei intensiven Aufgaben einen kühlen Betrieb zu gewährleisten. Die Leistung wird durch das kompakte Design in keiner Weise beeinträchtigt.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| DirectX version | 12.0 |
| Number of displays supported | 3 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 2 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | Taiwan |
| Products per shipping (inner) case | 1 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5300,5200,5100,4800,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Supported memory clock speed (max) | 5300 MHz |
| Maximum internal memory | 64 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | AMD RZ608 |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 790 g |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek® 8125 Gaming LAN Bandwidth Control Utility |
| Batteries included | |
| Antenna included | |
| Screws included | |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 97 mm |
| Package weight | 1.4 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |

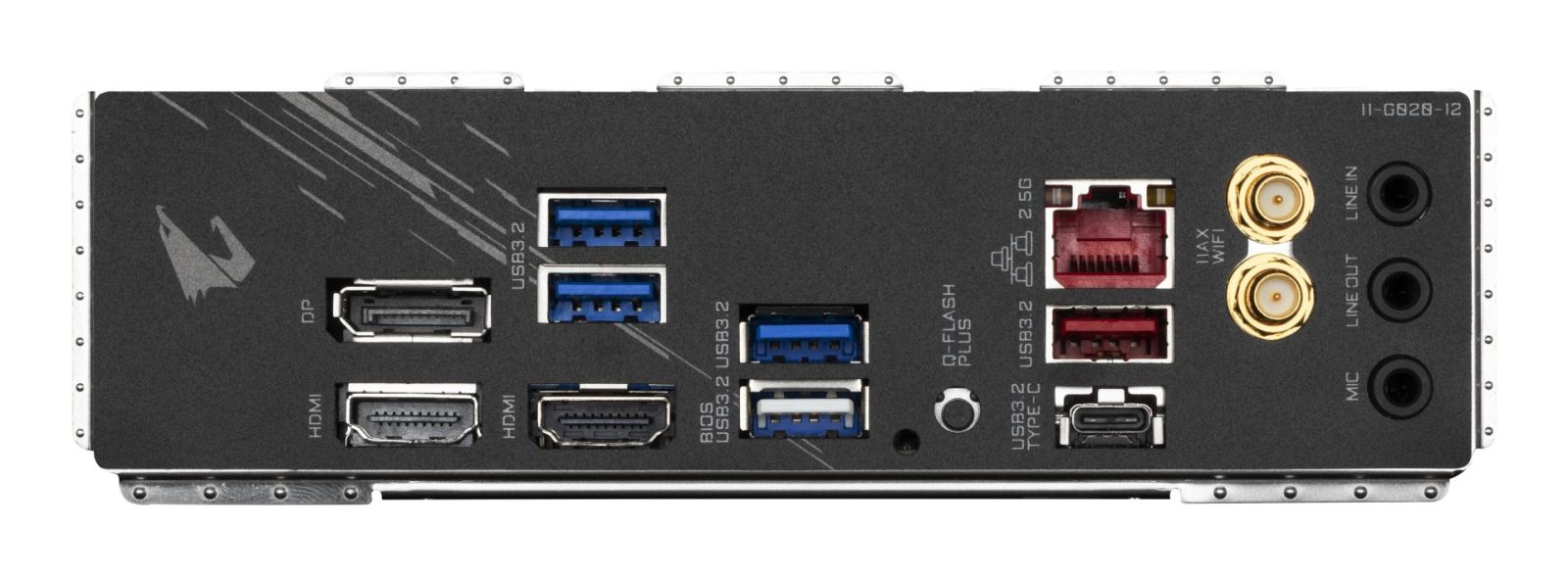

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of GIGABYTE B550I AORUS PRO AX AM4 DDR4 2xM.2 4xSATA WiFi DP HDMI mITX MB?
The article GIGABYTE B550I AORUS PRO AX AM4 DDR4 2xM.2 4xSATA WiFi DP HDMI mITX MB is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte B550I AORUS PRO AX to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you GIGABYTE B550I AORUS PRO AX AM4 DDR4 2xM.2 4xSATA WiFi DP HDMI mITX MB always at the best possible price. We can give you a discount of 2% on GIGABYTE B550I AORUS PRO AX AM4 DDR4 2xM.2 4xSATA WiFi DP HDMI mITX MB if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
