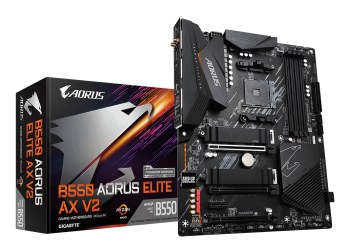

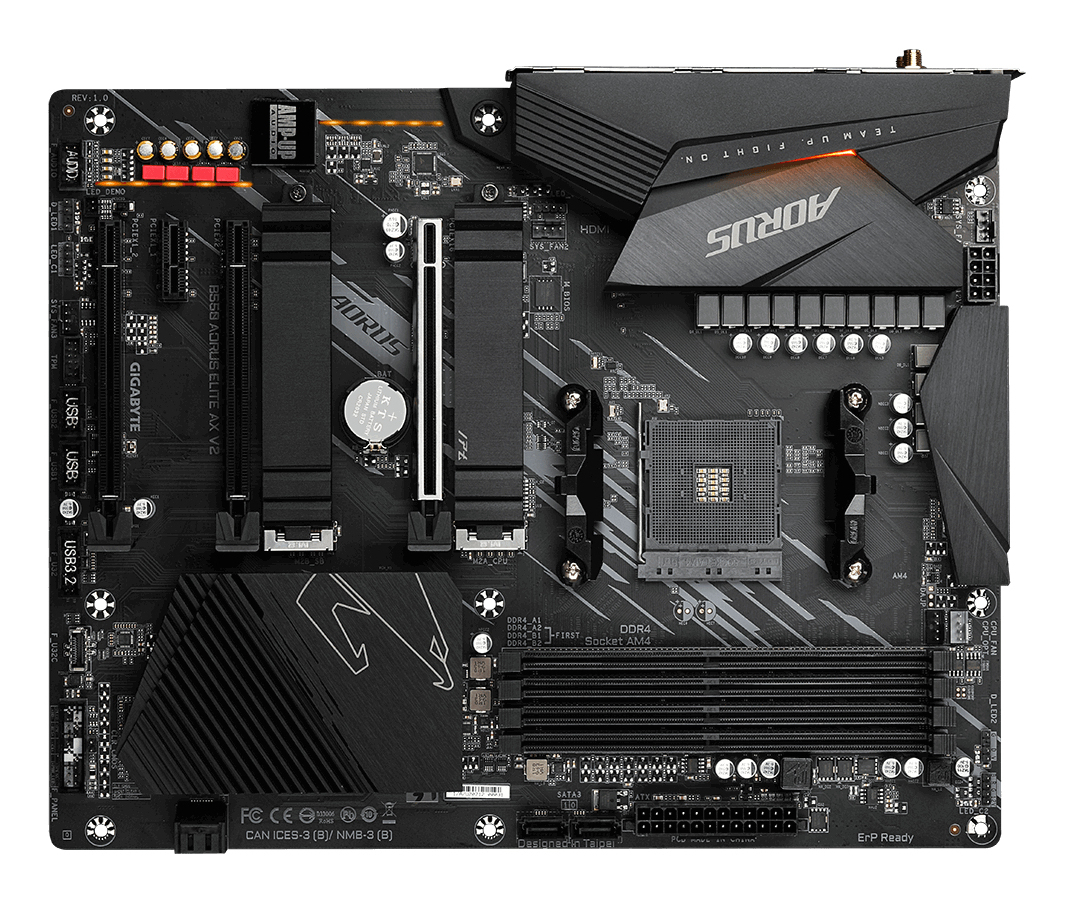

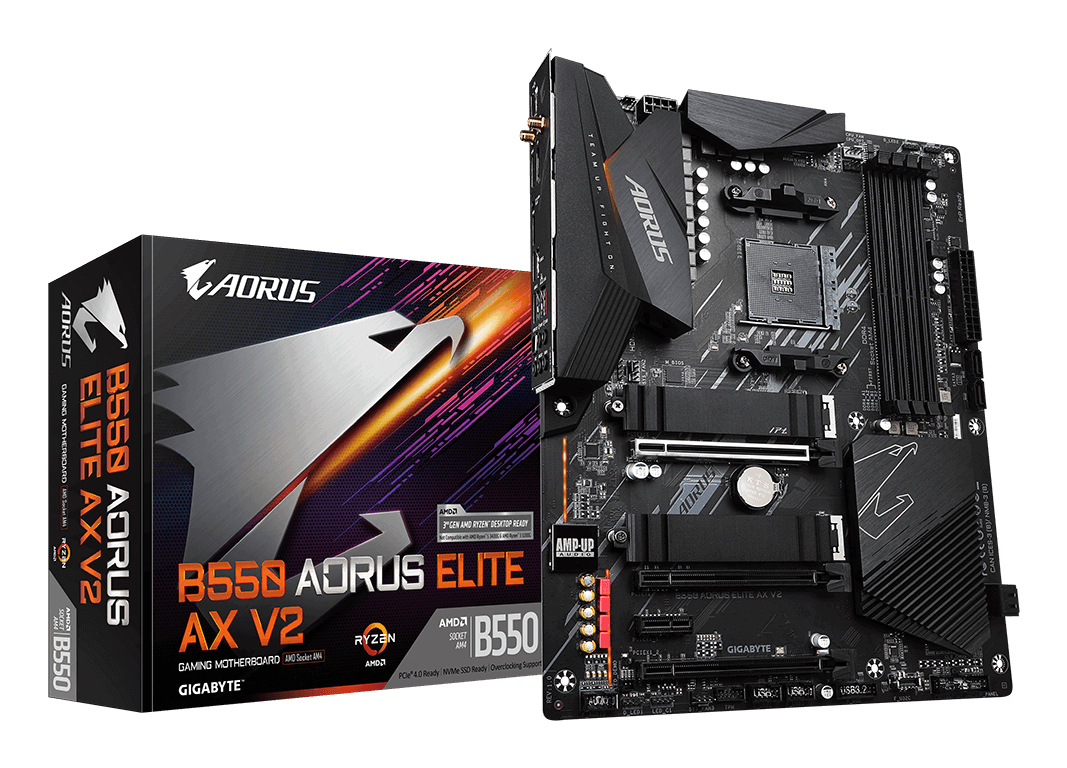

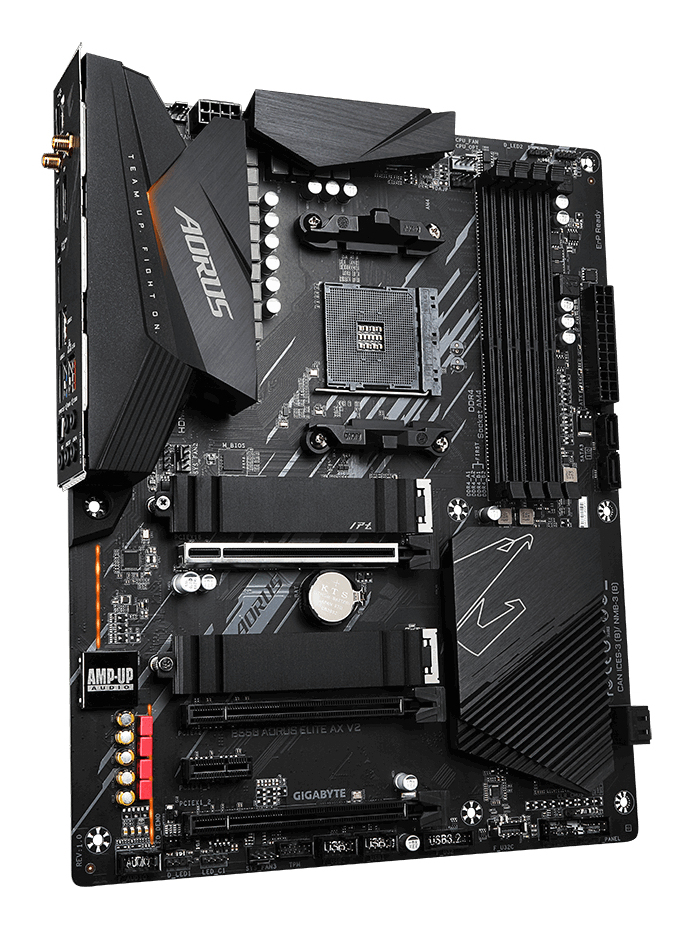

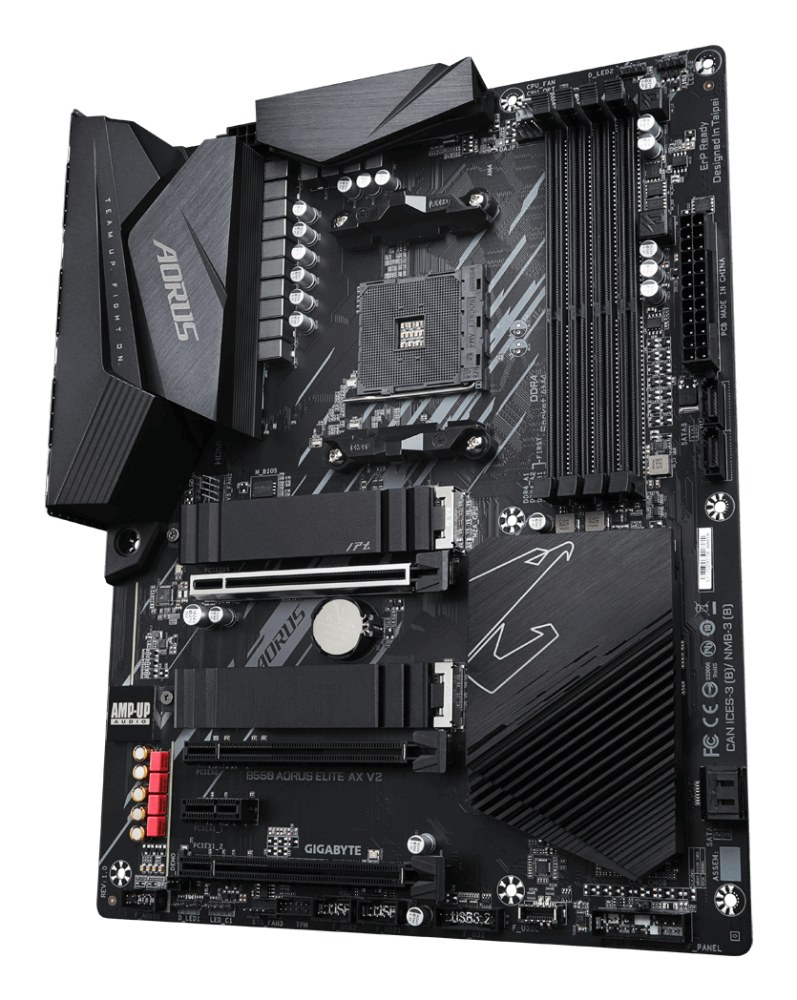

Gigabyte B550 AORUS ELITE AX V2 (B550,AM4,ATX,DDR4)
|
125,63 EUR 125,87 EUR |
|
|
( 149,50 EUR incl. VAT ) ≈ £105.28 | ≈ $141.08 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 363350 |
| Mfg Part No: | B550 AORUS ELITE AX V2 |
| UPC/EAN: | 4719331809904 |
| Weight: | 1.756 kg |
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 4 |
| Number of RGB LED pin headers | 5 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Supported memory clock speed (max) | 4733 MHz |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 1.12 kg |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | |
| Antenna included | |
| Screws included | |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.89 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |

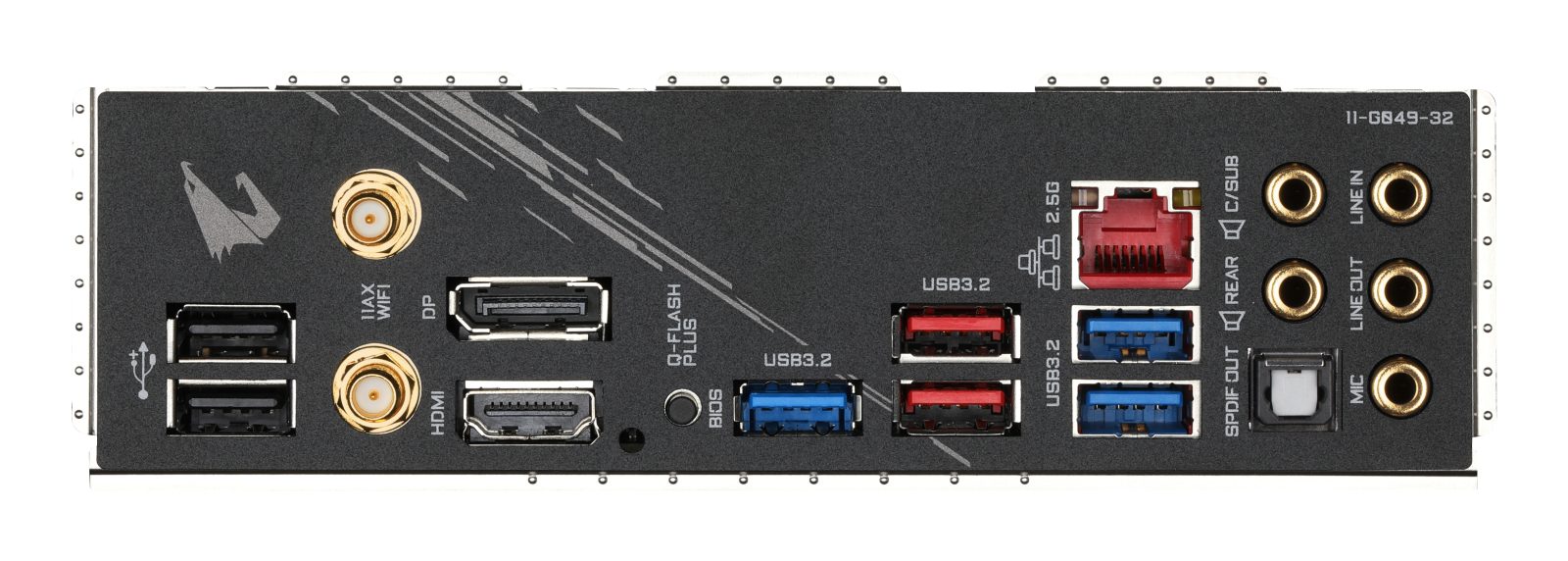

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Line-in | |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of Gigabyte B550 AORUS ELITE AX V2 (B550,AM4,ATX,DDR4)?
The article Gigabyte B550 AORUS ELITE AX V2 (B550,AM4,ATX,DDR4) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte B550 AORUS ELITE AX V2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte B550 AORUS ELITE AX V2 (B550,AM4,ATX,DDR4) always at the best possible price. We can give you a discount of 2% on Gigabyte B550 AORUS ELITE AX V2 (B550,AM4,ATX,DDR4) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
