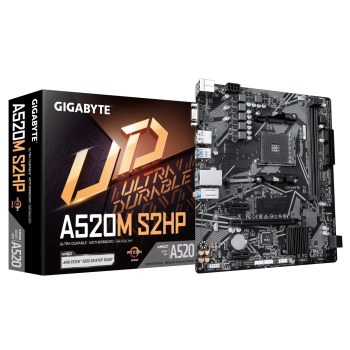

GIGABYTE A520M S2HP AM4 2xDDR4 D-sub HDMI DP M.2
|
53,68 EUR |
|
|
( 63,88 EUR incl. VAT ) ≈ £44.93 | ≈ $59.85 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 215378 |
| Mfg Part No: | A520M S2HP |
| UPC/EAN: | 4719331882457 |
| Weight: | 0.7 kg |
Product information for Gigabyte A520M S2HP:
GIGABYTE A520M S2H Mainboard (A520M S2H) – Das kompakte Micro-ATX-Mainboard mit AMD-A520-Chipsatz bietet eine zuverlässige Basis für Systeme mit AMD-Ryzen-Prozessoren der Ryzen-3000-, 4000-G- und 5000-Serie. Zwei DDR4-DIMM-Steckplätze unterstützen bis zu 64 GB Arbeitsspeicher im Dual-Channel-Betrieb. Für schnelle Datenträger steht ein M.2-Steckplatz mit PCIe 3.0 x4 zur Verfügung, ergänzt durch vier SATA-6-Gbit/s-Anschlüsse. Zur Ausstattung gehören außerdem ein PCIe-3.0-x16-Steckplatz, Gigabit-LAN, HDMI, DVI-D und D-Sub sowie USB-Anschlüsse. Q-Flash Plus, Smart Fan 5 und RGB Fusion 2.0 runden die Ausstattung ab.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Graphics | |
| On-board graphics card | |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of RGB LED pin headers | 4 |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| CPU fan connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4866 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Batteries included | |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 772 g |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 205 mm |
| Height | 35 mm |
