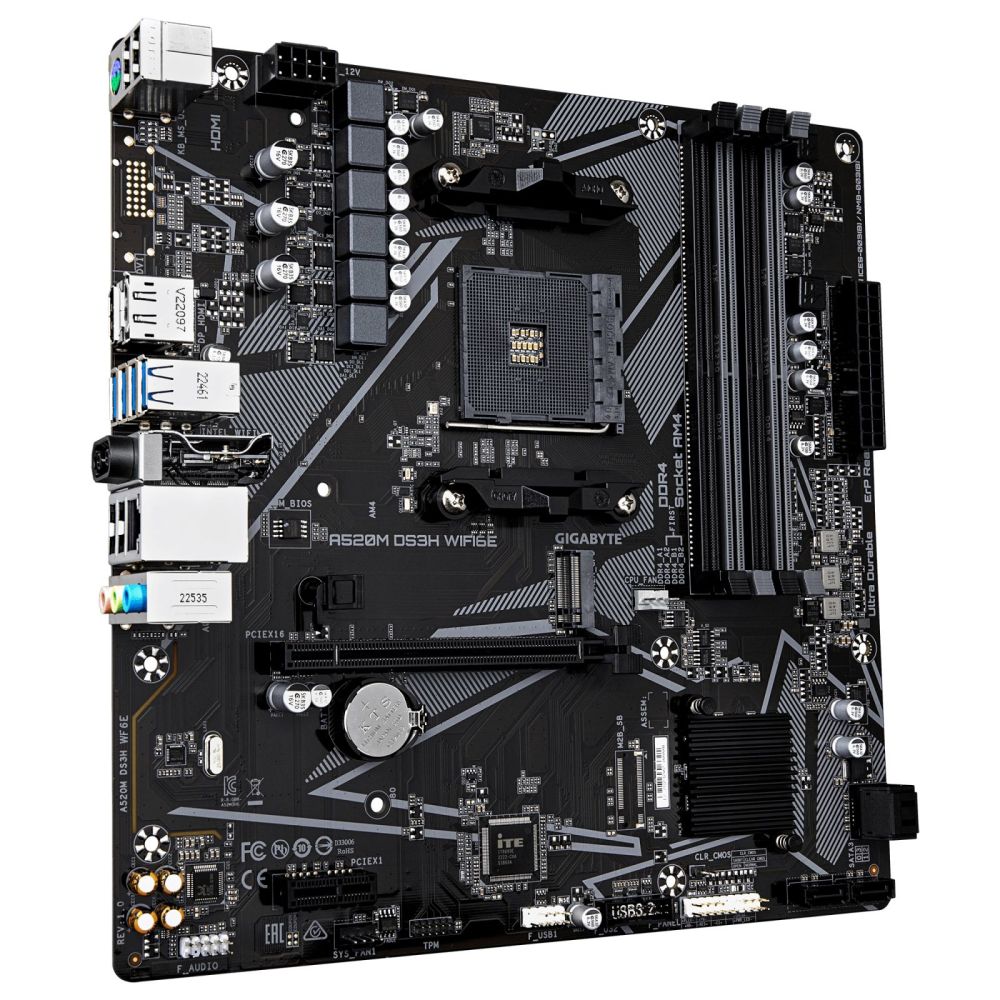

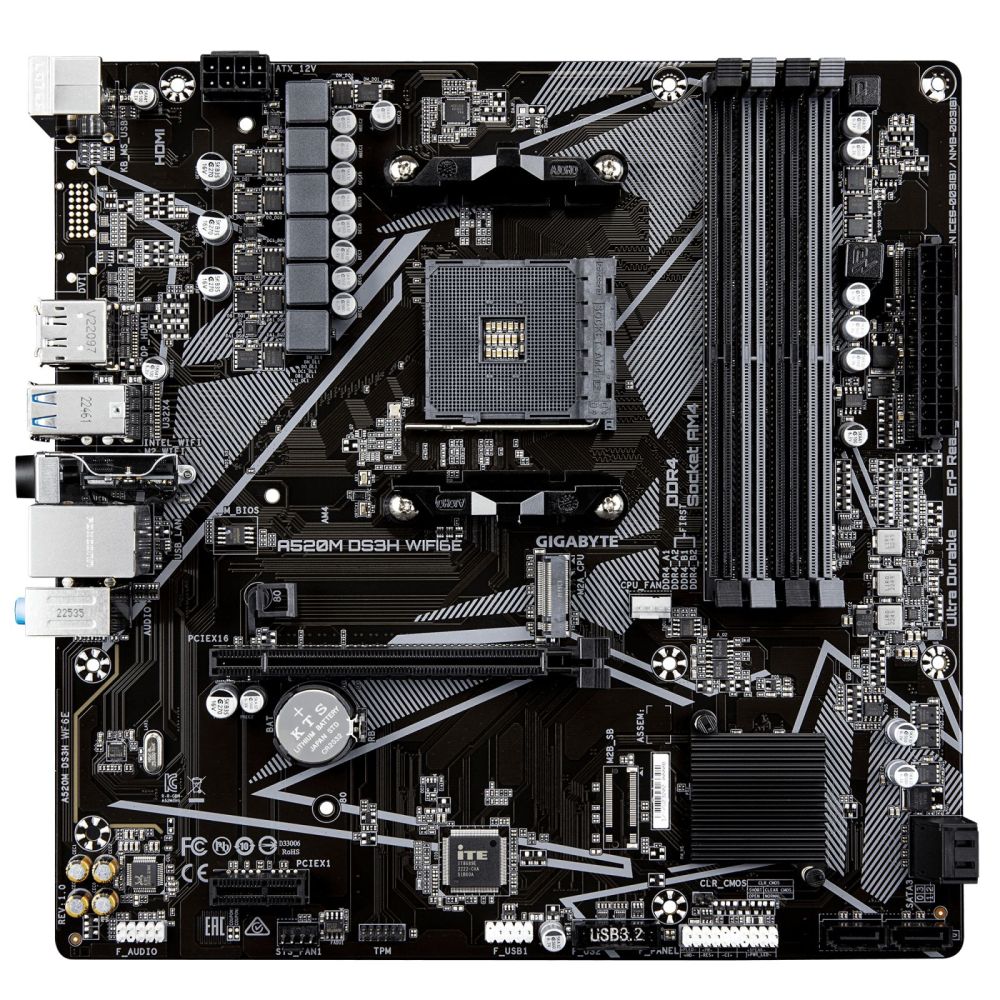

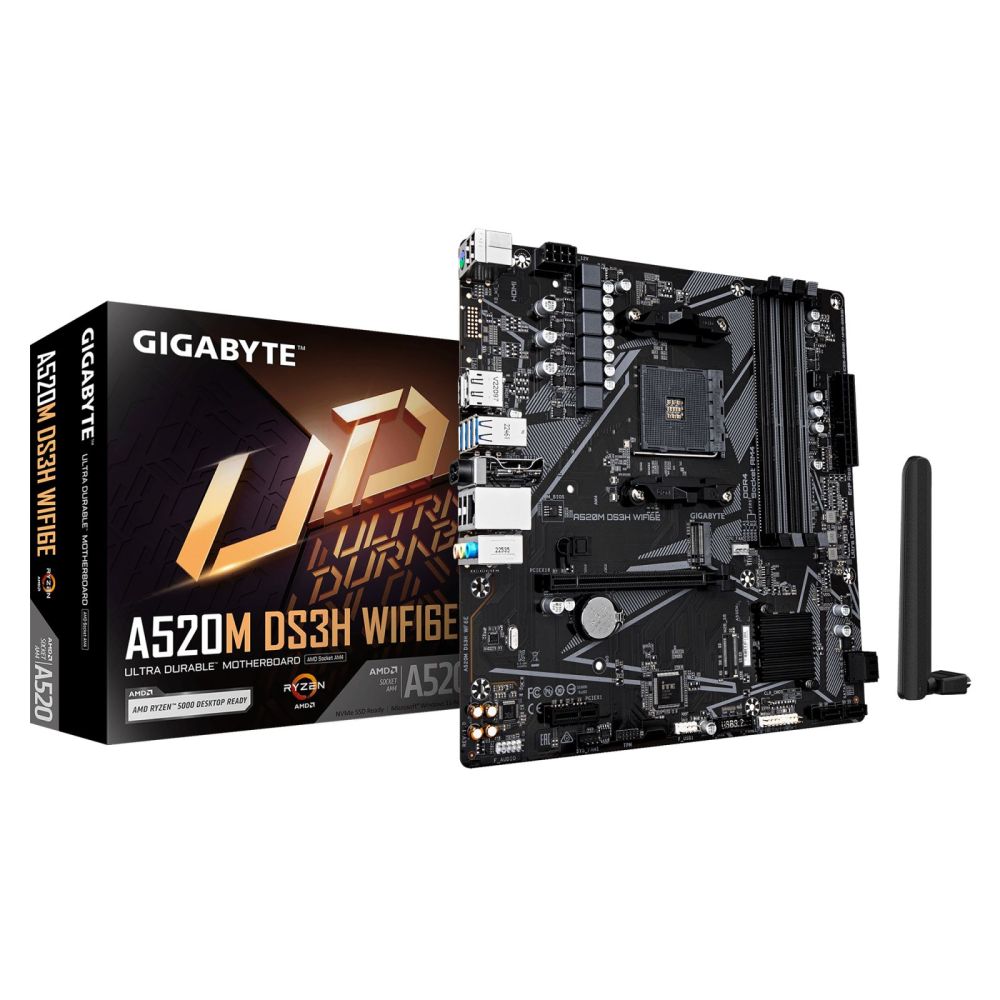

Gigabyte A520M DS3H WF6E
A520M DS3H WiFi6E (A520, AM4, mATX, DDR4)
|
69,43 EUR 69,53 EUR |
|
|
( 82,62 EUR incl. VAT ) ≈ £58.46 | ≈ $77.97 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 904585 |
|---|---|
| Mfg Part No: | A520M DS3H WF6E |
| UPC/EAN: | 4719331880743 |
| Weight: | 1.2 kg |
Further Miscellaneous from GigabyteFurther products in category Miscellaneous
All products of Gigabyte
Product information for Gigabyte A520M DS3H WF6E:
Gigabyte A520M DS3H WF6E (EAN: 4719331880743)
Das A520M DS3H WIFI6E ist ein Einsteiger-AM4-Mainboard von Gigabyte auf Basis des AMD A520 Chipsatzes.
Sehr günstiges AM4 Mainboard (Entry-Level)
✔ gut für einfache Ryzen-Builds (ohne Overclocking)
✔ mit WLAN eine seltene Kombination in dieser Klasse
nur PCIe 3.0 (kein PCIe 4.0)
nur 1 M.2 Slot
kein High-End VRM für starke CPUs/OC
Das A520M DS3H WIFI6E ist ein Budget-AM4-Board mit WLAN, geeignet für einfache Gaming- oder Office-PCs mit Ryzen 3000–5000, aber klar nicht für High-End-Systeme oder zukünftige Plattformen.
Das A520M DS3H WIFI6E ist ein Einsteiger-AM4-Mainboard von Gigabyte auf Basis des AMD A520 Chipsatzes.
Sehr günstiges AM4 Mainboard (Entry-Level)
✔ gut für einfache Ryzen-Builds (ohne Overclocking)
✔ mit WLAN eine seltene Kombination in dieser Klasse
nur PCIe 3.0 (kein PCIe 4.0)
nur 1 M.2 Slot
kein High-End VRM für starke CPUs/OC
Das A520M DS3H WIFI6E ist ein Budget-AM4-Board mit WLAN, geeignet für einfache Gaming- oder Office-PCs mit Ryzen 3000–5000, aber klar nicht für High-End-Systeme oder zukünftige Plattformen.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Temperature, Voltage, Fan |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP version | 2.3 |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz |
| Supported memory clock speed (max) | 4733 MHz |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | MediaTek MT7902 |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 880 g |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | |
| Antenna included | |
| Screws included | |
| Drivers included | |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 972 g |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series |
| Supported processor sockets | Socket AM4 |

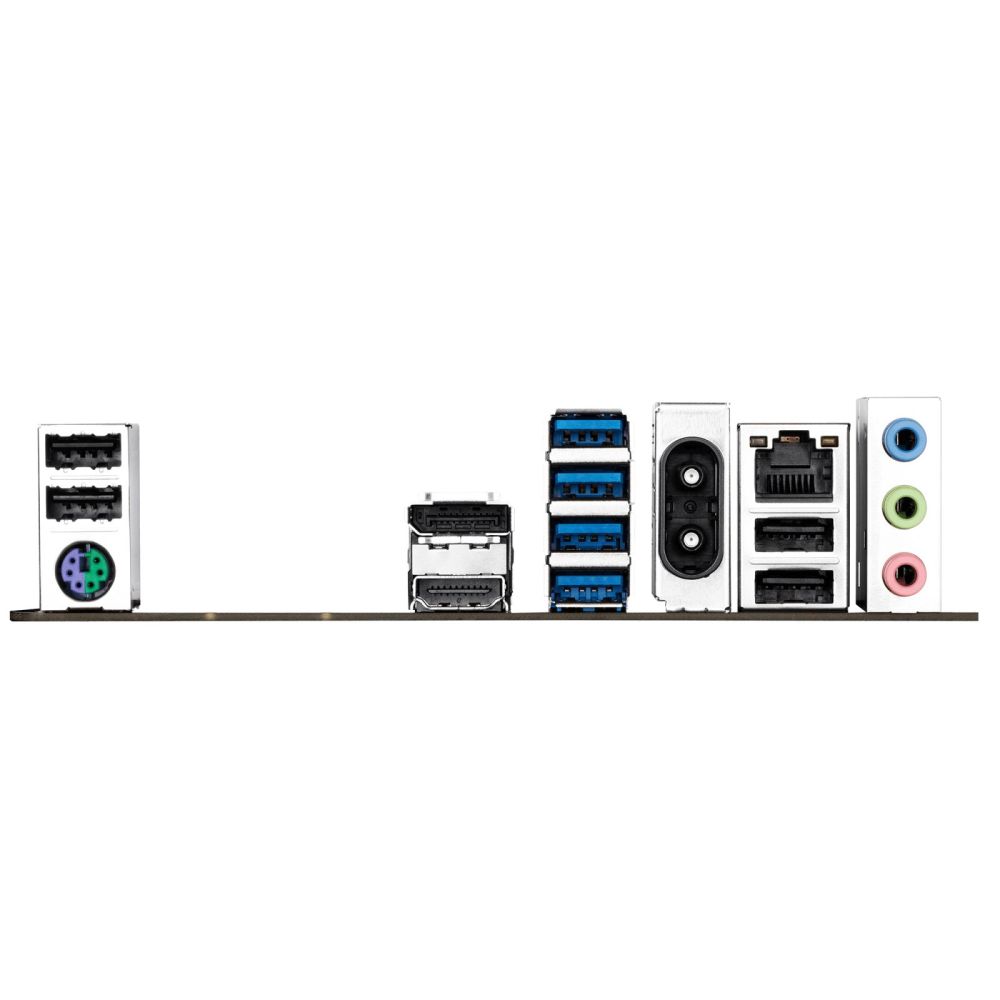

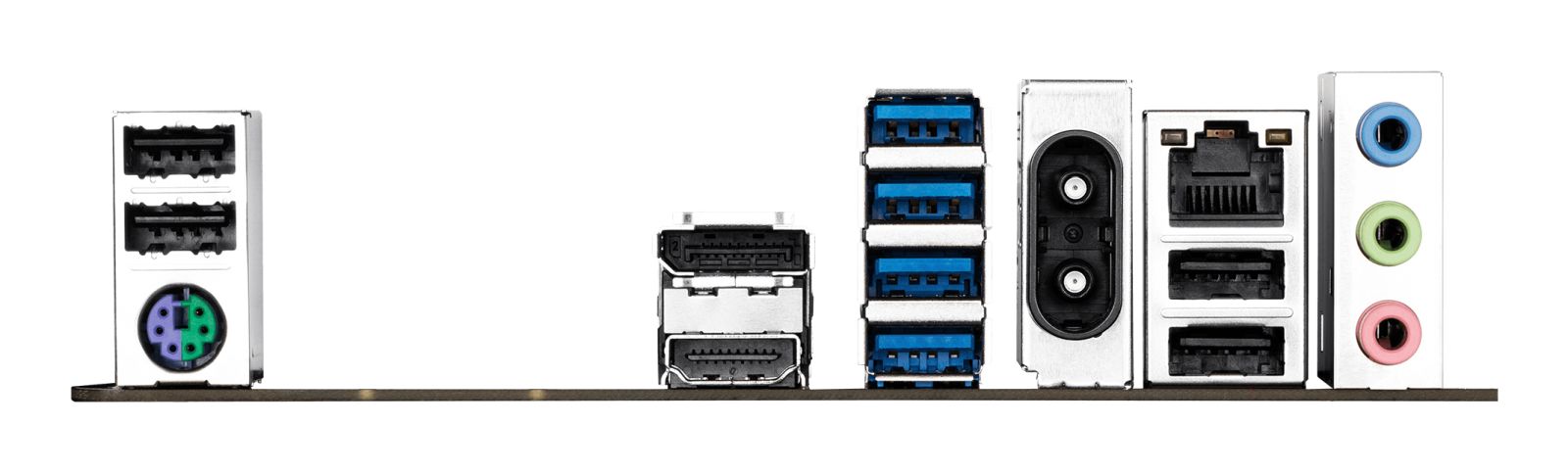

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
