GIGABYTE A520M H ARGB AM4 1xHDMI
|
54,27 EUR |
|
|
( 64,58 EUR incl. VAT ) ≈ £45.42 | ≈ $60.51 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 858070 |
| Mfg Part No: | A520M H ARGB |
| UPC/EAN: | 4719331879822 |
| Weight: | 1 kg |

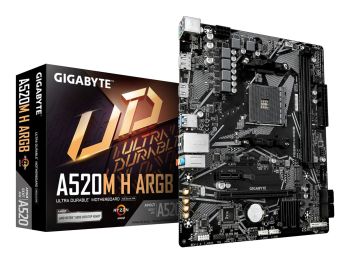

Product information for Gigabyte A520M H ARGB:
Gigabyte A520M H ARGB ist ein leistungsstarkes Micro‑ATX‑Mainboard im A520‑Chipsatz‑Format, ideal für AMD‑Systeme mit AM4‑Prozessoren. Es unterstützt AMD Ryzen‑CPUs der 3., 4. und 5. Generation und bietet stabile Leistung für Office‑, Multimedia‑ und Gaming‑Systeme.
Das Board verfügt über Dual‑Channel‑DDR4‑Speicherunterstützung, mehrere PCIe‑Steckplätze, M.2‑NVMe‑Slots für schnelle SSDs und RGB‑Beleuchtung über ARGB‑Header zur individuellen Lichteffekten‑Steuerung. Mit modernen Anschlüssen wie USB 3.2, HDMI und Gigabit‑LAN eignet sich das A520M H ARGB perfekt für kompakte Desktop‑Builds, Heim‑PCs und Alltags‑Rechner, die robusten Betrieb und gute Upgrade‑Optionen bieten.
Das Board verfügt über Dual‑Channel‑DDR4‑Speicherunterstützung, mehrere PCIe‑Steckplätze, M.2‑NVMe‑Slots für schnelle SSDs und RGB‑Beleuchtung über ARGB‑Header zur individuellen Lichteffekten‑Steuerung. Mit modernen Anschlüssen wie USB 3.2, HDMI und Gigabit‑LAN eignet sich das A520M H ARGB perfekt für kompakte Desktop‑Builds, Heim‑PCs und Alltags‑Rechner, die robusten Betrieb und gute Upgrade‑Optionen bieten.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP version | 2.3 |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz |
| Supported memory clock speed (max) | 5100 MHz |
| Maximum internal memory | 64 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 700 g |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | |
| Screws included | |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 772 g |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series, AMD Ryzen PRO 4000 Series, AMD Ryzen PRO 5000 Series |
| Supported processor sockets | Socket AM4 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 233 mm |
| Depth | 198 mm |
| Height | 35 mm |
