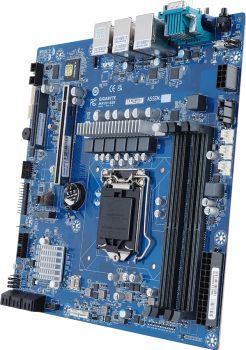

Gigabyte 9MX33BS0MR-00 Mainboard MX33-BS0
|
384,61 EUR 393,12 EUR |
|
|
( 457,69 EUR incl. VAT ) ≈ £322.30 | ≈ $428.07 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195465 |
| Mfg Part No: | 9MX33BS0MR-00 |
| UPC/EAN: | 4719331824433 |
| Weight: | 0 kg |
| Expansion slots | |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | Intel C252 |
| Product colour | Blue |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Compatible operating systems | Red Hat Enterprise Linux 6.9; Red Hat Enterprise Linux 7.3; SUSE Linux Enterprise Server 11.2; SUSE Linux Enterprise Server 12.2; Ubuntu 16.04.6 LTS; Ubuntu 18.04.2 LTS; VMware 6.5; Windows Server 2016; Windows Server 2019; Windows Server 2022 |
| Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card | |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 6 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 5 |
| Number of EPS power connectors (8-pin) | 1 |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3200,2666 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging content | |
| Cables included | SATA |
| Packaging data | |
| Package width | 321 mm |
| Package depth | 308.5 mm |
| Package height | 78.5 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Xeon®, Intel® Pentium® |
| Intel Xeon series | E-2300 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
