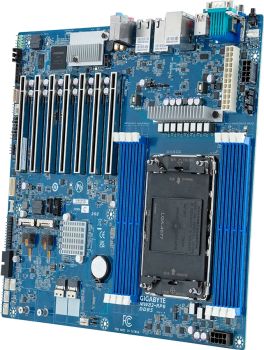

Gigabyte 9MW83RP0MR-000 Mainboard MW83-RP0
|
1.026,78 EUR 1.058,85 EUR |
|
|
( 1.221,87 EUR incl. VAT ) ≈ £859.41 | ≈ $1,144.86 plus delivery charges: 55,00 € |
|
| Made to order · Expected to be available from 01.01.2199info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195461 |
| Mfg Part No: | 9MW83RP0MR-000 |
| UPC/EAN: | 4719331851927 |
| Weight: | 1.648 kg |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel W790 |
| Product colour | Blue |
| Component for | Server |
| Motherboard form factor | CEB |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Compatible operating systems | CentOS Stream 9; Debian 11.5.0; Red Hat Enterprise Linux 9.0; Ubuntu 22.04 LTS; Windows 11 Enterprise |
| Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card | |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 6 |
| Number of EPS power connectors (8-pin) | 2 |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speed (max) | 4800 MHz |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 330 mm |
| Package height | 80 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | W-3400, W-2500, W-2400, W-3500 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 4677 (Socket E) |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Serial ports quantity | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SlimSAS, SATA |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 266.7 mm |
Questions & answers
What is the delivery time of Gigabyte 9MW83RP0MR-000 Mainboard MW83-RP0?
The article Gigabyte 9MW83RP0MR-000 Mainboard MW83-RP0 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 9MW83RP0MR-000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 9MW83RP0MR-000 Mainboard MW83-RP0 always at the best possible price. We can give you a discount of 2% on Gigabyte 9MW83RP0MR-000 Mainboard MW83-RP0 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
