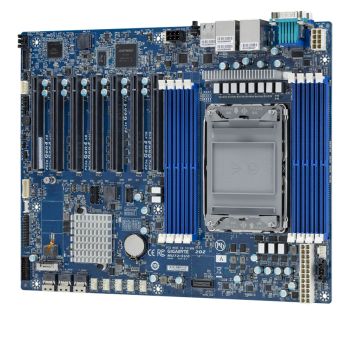

Gigabyte 9MU72SU0MR-00 Mainboard MU72-SU0
|
733,64 EUR 756,62 EUR |
|
|
( 873,03 EUR incl. VAT ) ≈ £614.06 | ≈ $818.01 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195455 |
| Mfg Part No: | 9MU72SU0MR-00 |
| UPC/EAN: | 4719331822934 |
| Weight: | 1.524 kg |
| BIOS | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x4 slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | Intel C621A |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 12 |
| Total number of SATA connectors | 12 |
| Serial port headers | 1 |
| CD/AUX audio in | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Number of chassis fan connectors | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| Number of COM connectors | |
| TPM connector | |
| Parallel connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Other features | |
| Supported LRDIMM clock speeds | 1600,1866,2133 MHz |
| Maximum LRDIMM memory | 128 GB |
| Number of DIMM slots | 12 |
| Number of processors supported | 1 |
| Azalia Digital Header (ADH) connector | |
| CF card connector | |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 330 mm |
| Package height | 80 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W3300 |
| Processor special features | |
| Trusted Platform Module (TPM) | |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Microphone in | |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| Number of HDDs supported | 12 |
| Number of storage drives supported | 13 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 304 mm |
| Depth | 244 mm |
