Gigabyte 9MS036L0MR-000 Mainboard MS03-6L0
|
-16% 885,92 EUR 1.052,41 EUR |
|
|
( 1.054,24 EUR incl. VAT ) ≈ £741.52 | ≈ $987.80 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195440 |
| Mfg Part No: | 9MS036L0MR-000 |
| UPC/EAN: | 4719331855499 |
| Weight: | 0.123 kg |

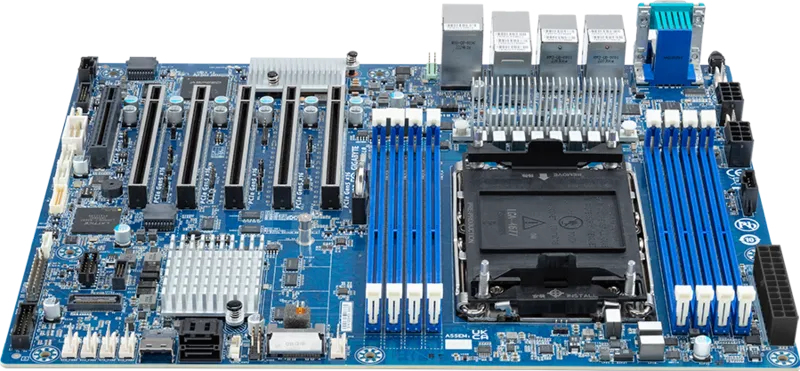

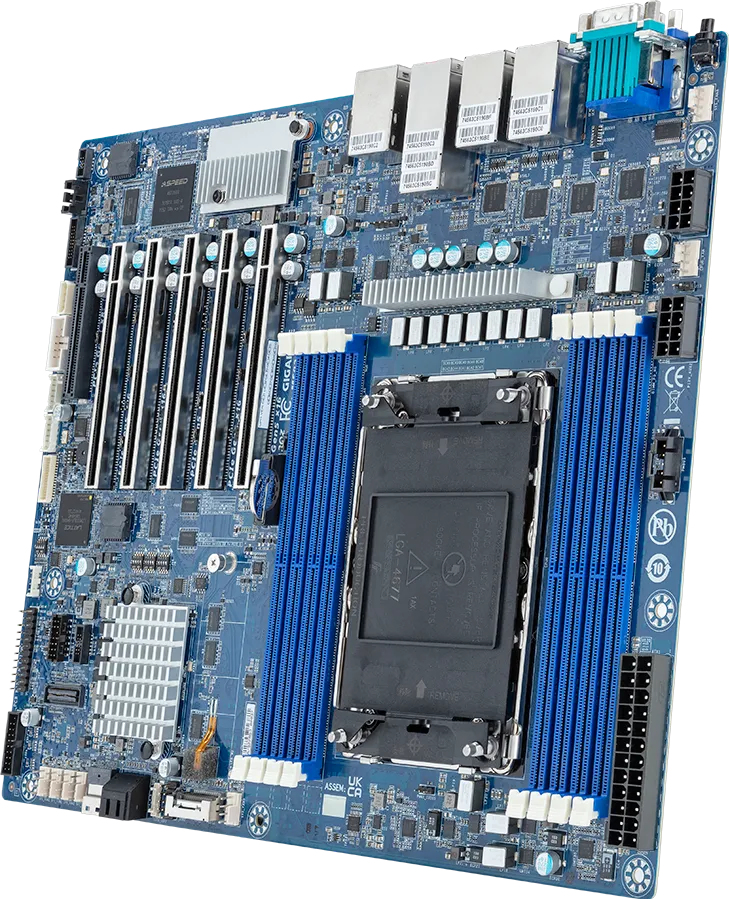

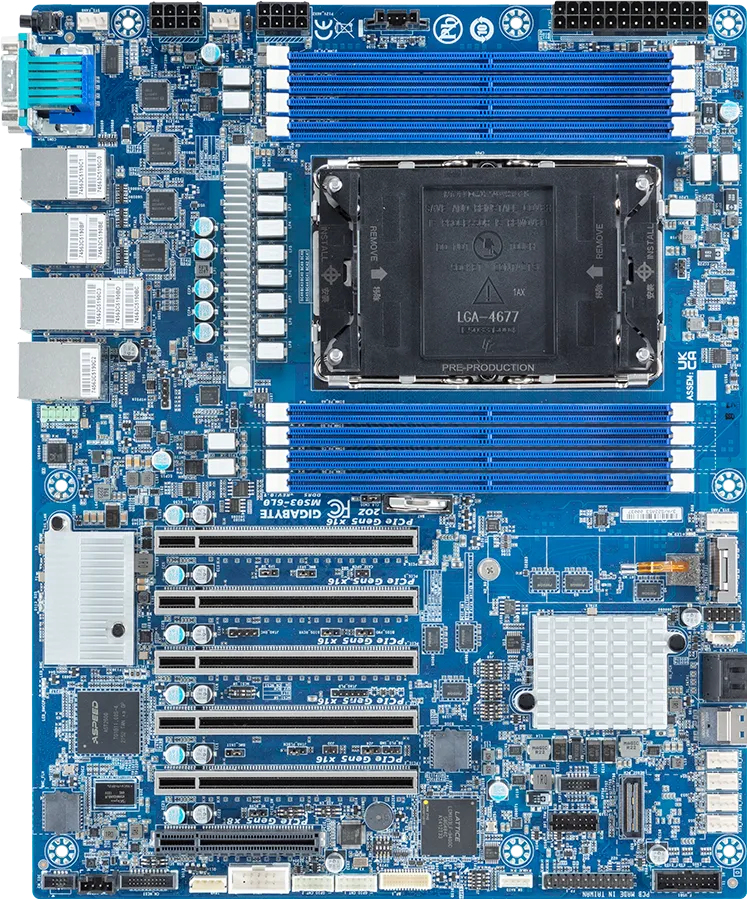

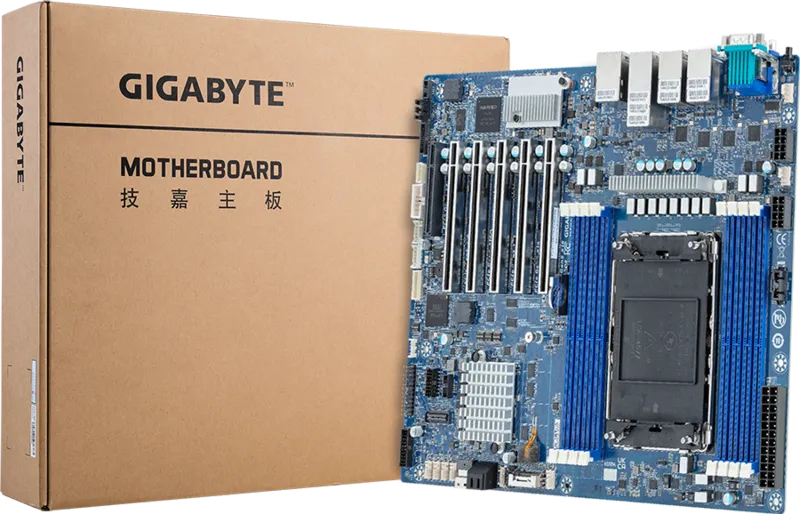

Product information for Gigabyte 9MS036L0MR-000:
Single Sockel 4677, 5th/4th Generation Intel Xeon Scalable Processors, ATX, C741, TDP bis zu 350W, 8x DIMM, DDR5 RDIMM, 1x SlimSAS 4i for 4x SATA, from PCH, 2x SATA, from PCH, 1x M.2 (2280), PCIe Gen3 x4, from PCH, 4x PCIe 5.0 x16, 1x PCIe 5.0 x16 oder x
| Expansion slots | |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | Intel C741 |
| Product colour | Blue |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card | |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 7 |
| Number of EPS power connectors (8-pin) | 2 |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speed (max) | 5600 MHz |
| Network | |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet |
| LAN controller | Broadcom BCM57416, Intel® I210-AT |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 330 mm |
| Package height | 80 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4677 (Socket E) |

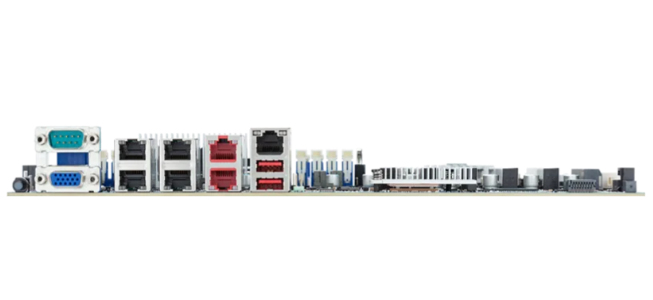

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 244 mm |
