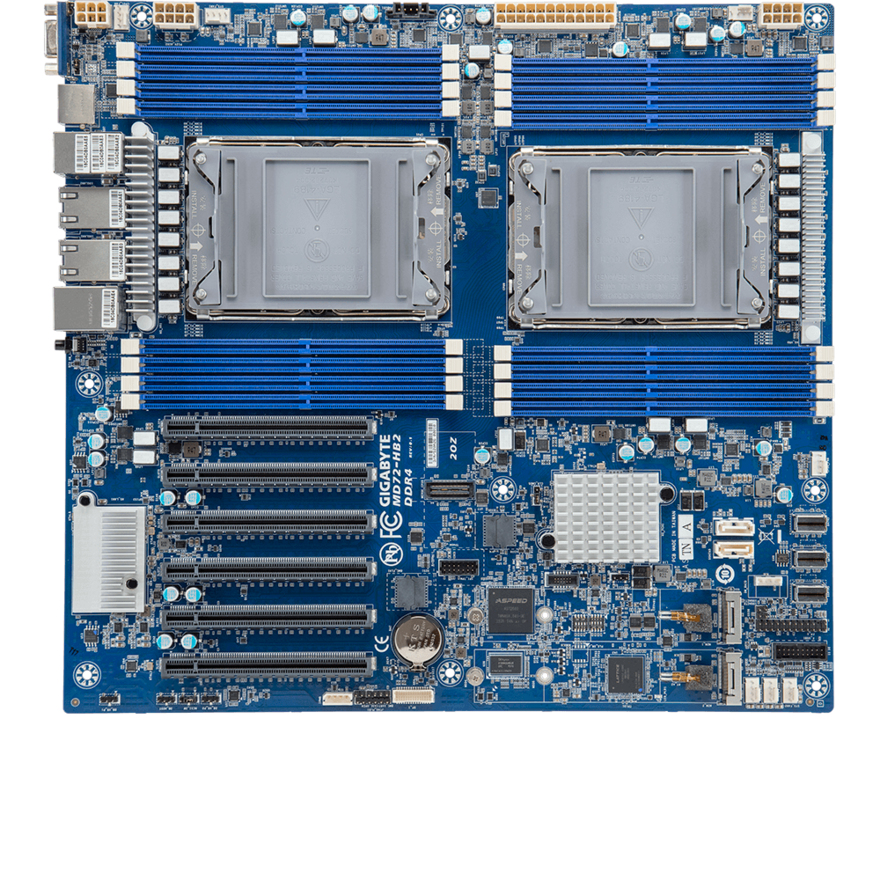

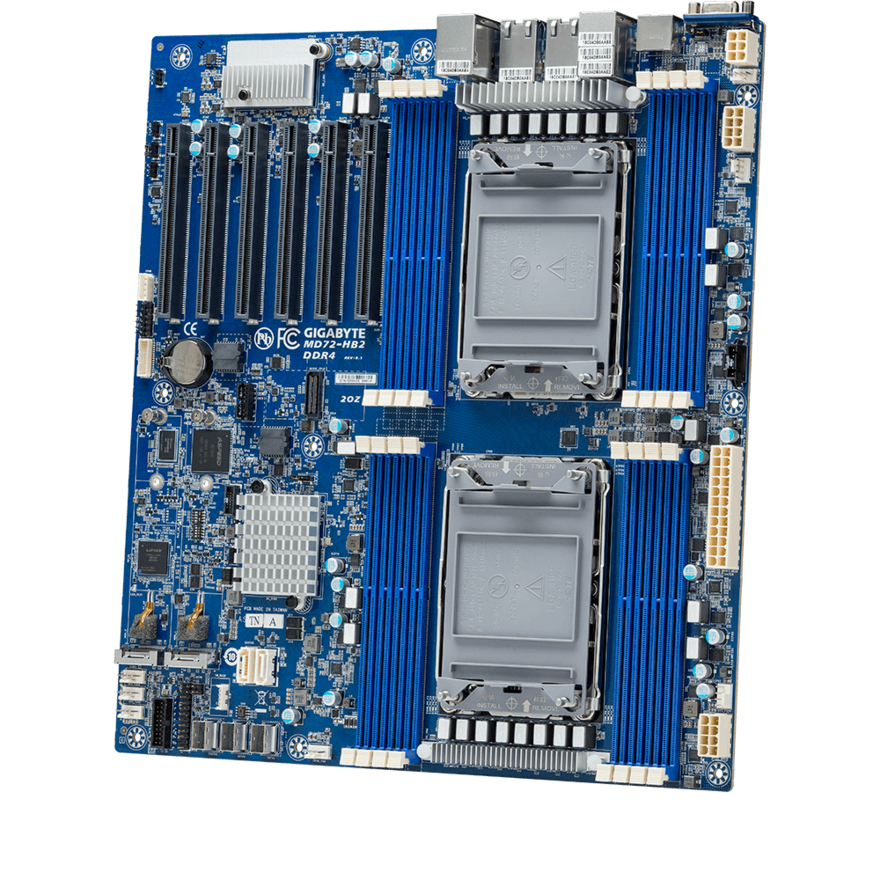

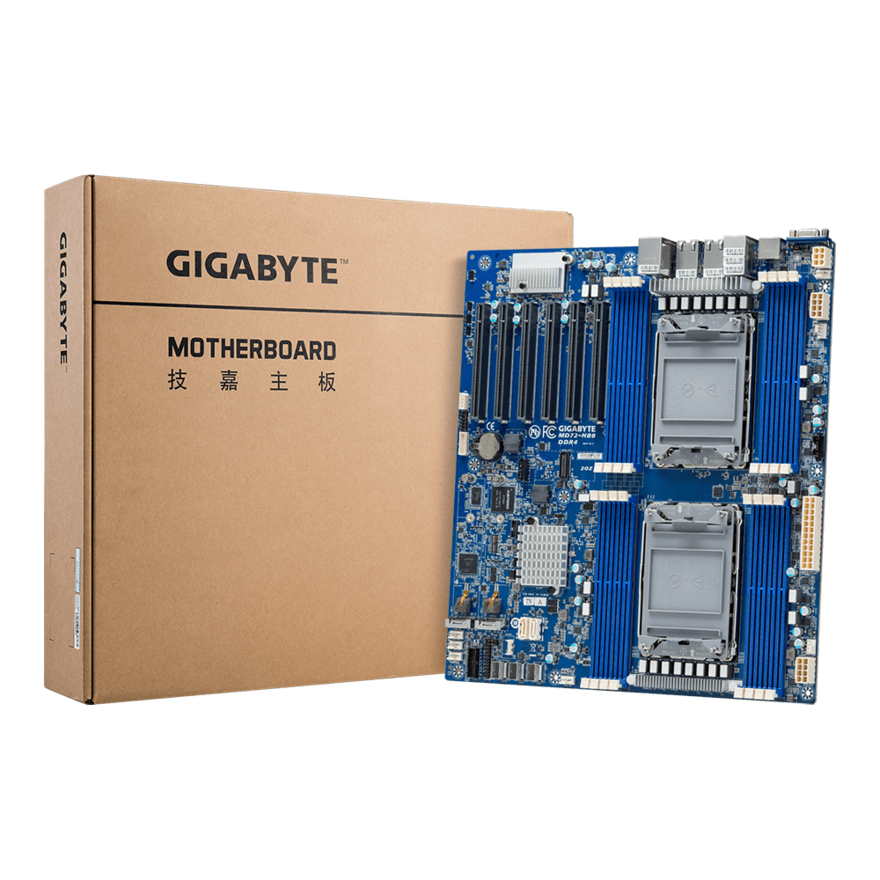

Gigabyte 9MD72HB2MR-00 Mainboard MD72-HB2
|
1.162,07 EUR 1.198,34 EUR |
|
|
( 1.382,86 EUR incl. VAT ) ≈ £972.65 | ≈ $1,295.71 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195423 |
| Mfg Part No: | 9MD72HB2MR-00 |
| UPC/EAN: | 4719331827458 |
| Weight: | 0 kg |
| BIOS | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel C621A |
| Audio output channels | 8 channels |
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Integrated SAS ports | 5 |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Hexa-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Maximum RDIMM memory | 64 GB |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi standards | Not supported |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Other features | |
| Maximum LRDIMM memory | 64 GB |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| Disk on Module (DOM) power connector | |
| Quick installation guide | |
| Packaging content | |
| Cables included | SATA |
| Packaging data | |
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| AMD Opteron series | 6200 |
| Processor thermal power (max) | 205 W |
| Processor special features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | |

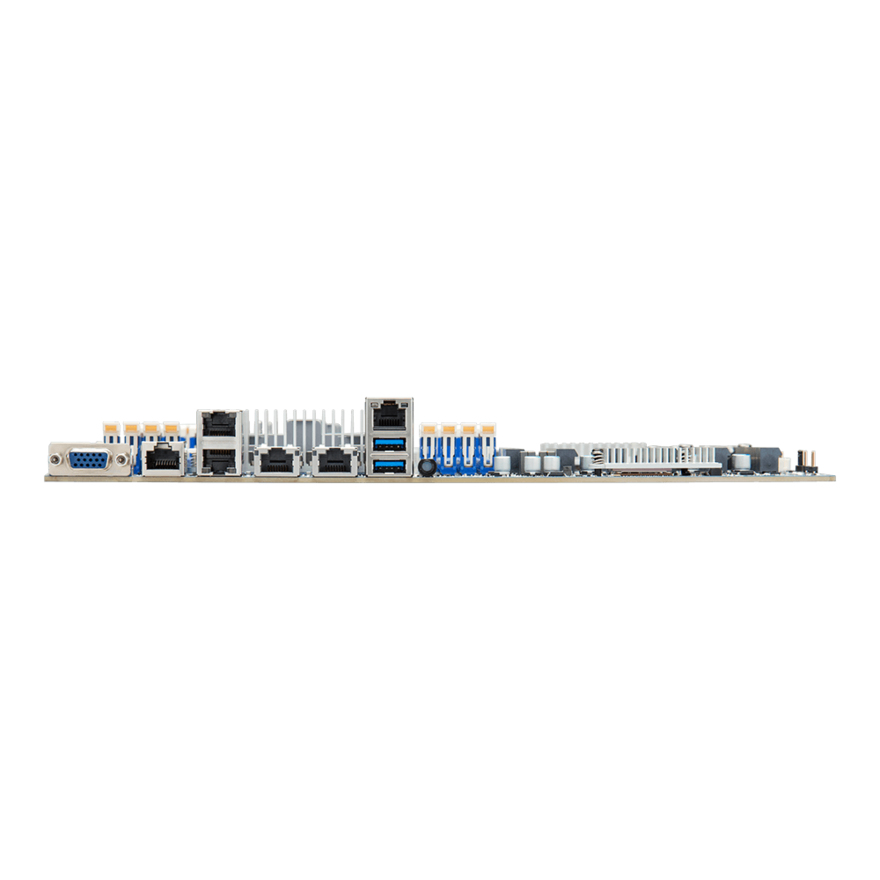

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
Questions & answers
What is the delivery time of Gigabyte 9MD72HB2MR-00 Mainboard MD72-HB2?
The article Gigabyte 9MD72HB2MR-00 Mainboard MD72-HB2 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 9MD72HB2MR-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 9MD72HB2MR-00 Mainboard MD72-HB2 always at the best possible price. We can give you a discount of 2% on Gigabyte 9MD72HB2MR-00 Mainboard MD72-HB2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
