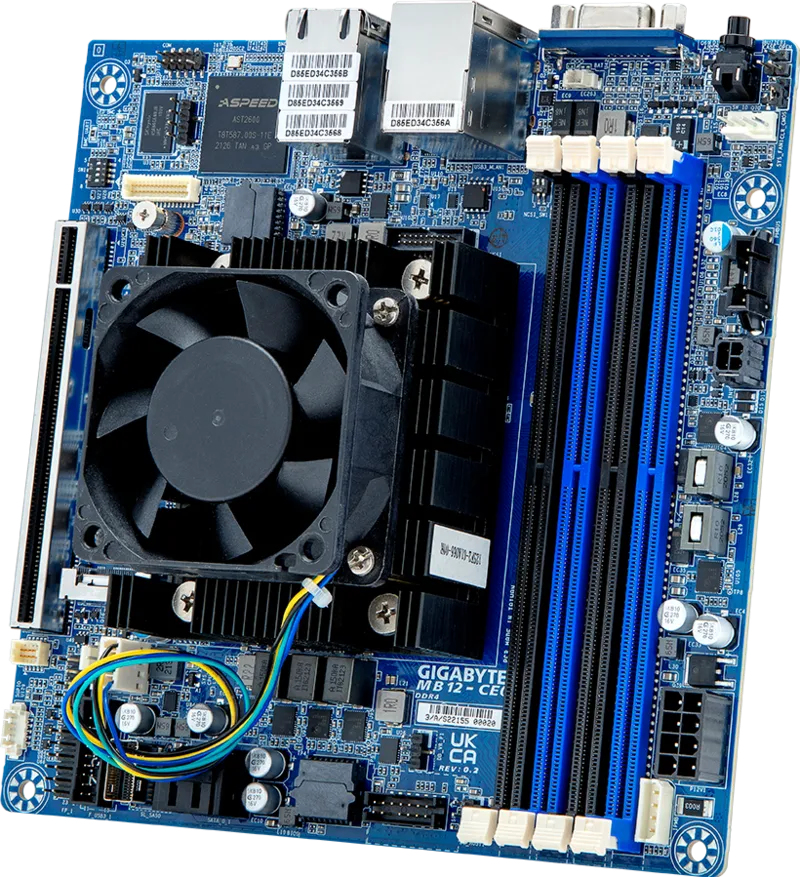

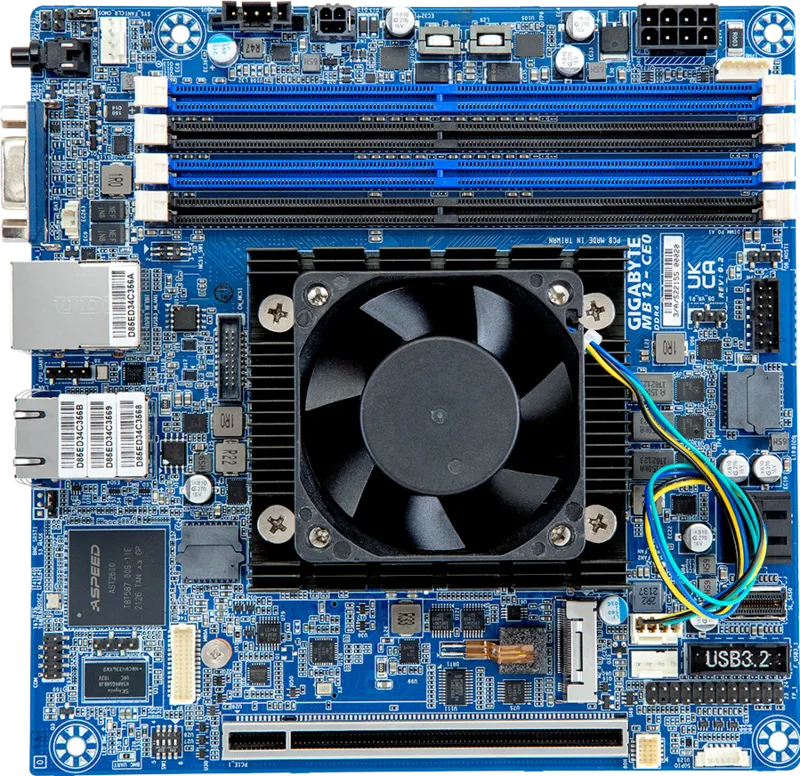

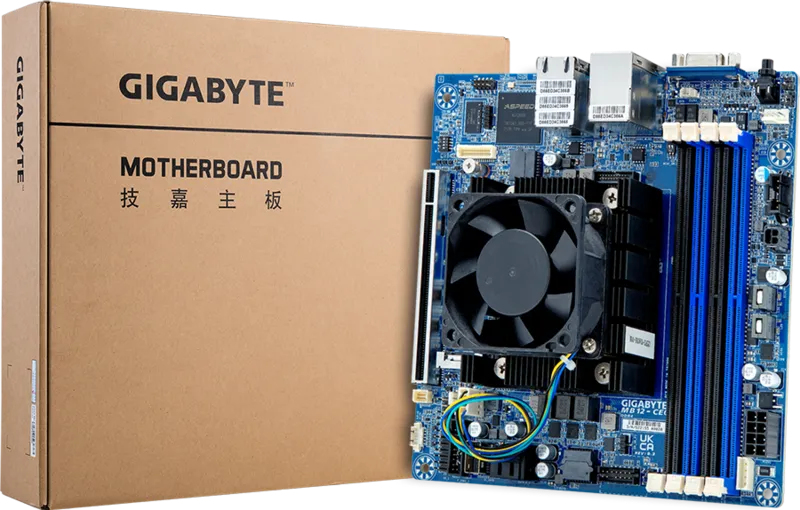

Gigabyte 9MB12CE0NR-00 Mainboard MB12-CE0
|
1.571,66 EUR 1.620,63 EUR |
|
|
( 1.870,28 EUR incl. VAT ) ≈ £1,315.48 | ≈ $1,752.40 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1195367 |
| Mfg Part No: | 9MB12CE0NR-00 |
| UPC/EAN: | 4719331848828 |
| Weight: | 0 kg |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | Intel SoC |
| Product colour | Blue |
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Compatible operating systems | Windows 10; Windows 11; Windows Server 2012 R2; Windows Server 2016; Windows Server 2019; Windows Server 2022 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card | |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of COM connectors | 1 |
| Integrated SAS ports | 1 |
| Front panel connector | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 2933 MHz |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210-AT2 |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 451 mm |
| Package height | 330 mm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | BGA 2227 |
| Compatible processor series | Intel® Xeon® D |
| Intel Xeon series | D-1700 |
| Processor model | D-1739 |
| Processor cores | 8 |

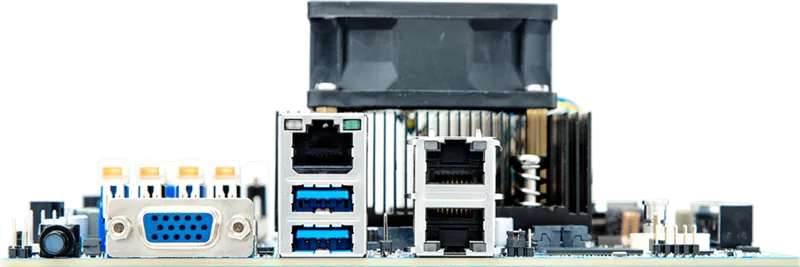

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SlimSAS, SATA |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
Questions & answers
What is the delivery time of Gigabyte 9MB12CE0NR-00 Mainboard MB12-CE0?
The article Gigabyte 9MB12CE0NR-00 Mainboard MB12-CE0 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 9MB12CE0NR-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 9MB12CE0NR-00 Mainboard MB12-CE0 always at the best possible price. We can give you a discount of 2% on Gigabyte 9MB12CE0NR-00 Mainboard MB12-CE0 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
