Gigabyte 6NR283ZF0DR000ACL1 R283-ZF0-AAL1 2U AMD 9005/9004 12x8,9 cm ( 3,5 inch )/6,3 cm ( 2,5 inch ) 2x2700W content_copy

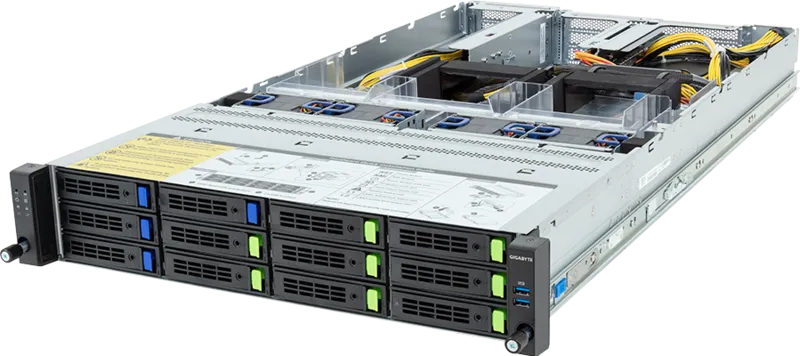

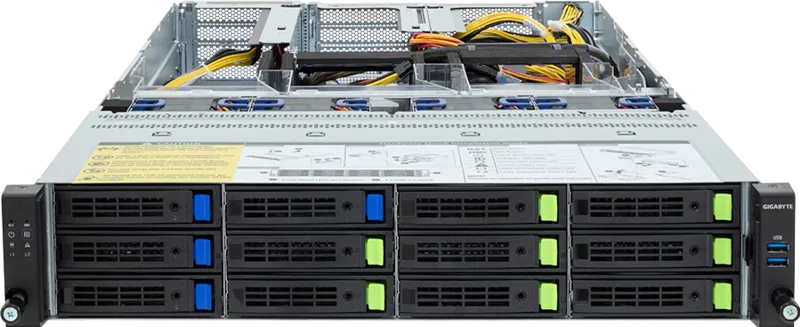

The Gigabyte R283-ZF0-AAL1 (Rev. 3.x) is a powerful 2U rack server platform specifically designed for demanding compute and GPU-based workloads. The platform features a dual-socket SP5 (LGA 6096) and supports AMD EPYC 9004 and 9005 processors, enabling high computational performance and scalability for modern applications such as AI, Big Data, or virtualization. With 24 DIMM slots for DDR5-SDRAM in Dodeca-channel mode, the server offers extended memory capacity and high bandwidth, which are critical for data-intensive applications. The platform is designed for data center and high-performance infrastructures and supports flexible storage configurations with 14 drive bays, including 12x 6,3 cm ( 2,5 inch ) expansion slots, as well as support for M.2 and 8,9 cm ( 3,5 inch )/6,3 cm ( 2,5 inch ) drives in SATA and SAS formats. The integrated graphics solution is based on the Aspeed AST2600 chipset, providing efficient remote management and system monitoring. Network functionality includes two RJ-45 ports with 10/100/1000 Mbit/s, supplemented by USB 3.2 Gen 1 ports and a Mini DisplayPort, enabling flexible connectivity to networks and peripheral devices. Power supply is provided by two redundant 2700 W power supplies in 1+1 mode, ensuring high availability and energy efficiency — certified 80 PLUS Titanium. The platform supports PCIe Gen5 expansions, including OCP NIC 3.0, and offers up to four PCIe Gen5 x16 slots for GPUs, making it ideal for accelerated applications. The robust steel construction in black, complemented by LED indicators for HDD, LAN, and status, ensures reliable and maintenance-friendly integration into existing infrastructures.

Design
Chassis type	Rack (2U)
Product colour	Black, Steel
LED indicators	HDD, LAN, Status
Expansion slots
PCI Express slots version	4.0
Number of M.2 (M) slots	3
Features
Trusted Platform Module (TPM)
Backplanes support
Graphics
On-board graphics card model	Aspeed AST2600
Memory
Number of DIMM slots	24
Supported memory types	DDR5-SDRAM
Memory channels	Dodeca-channel
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	20 - 95%
Packaging data
Packaging content	1 x R283-ZF0-AAL12 x CPU heatsinks1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 150mm)1 x GPU power cable (16-pin, 250mm)1 x GPU power cable (16-pin, 450mm)1 x GPU power cable (16-pin, 550mm)1 x 2-Section Rail kit
Package width	1082 mm
Package depth	685 mm
Package height	314 mm
Package weight	36 kg

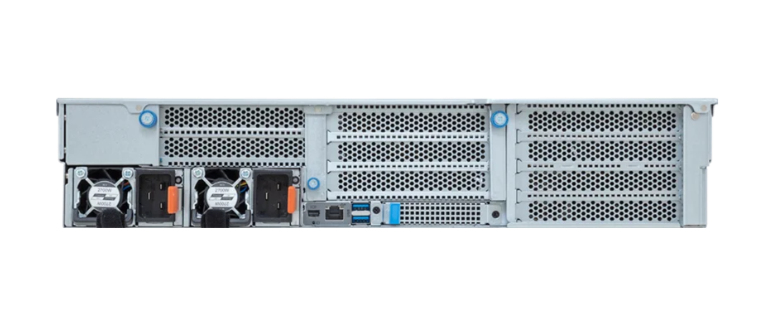

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	2
Mini DisplayPorts quantity	1
Power
Power supply	2700 W
Number of main power supplies	2
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Input current	12 - 16 A
80 PLUS certification	80 PLUS Titanium
Redundant power supply (RPS) support
Processor
Processor socket	LGA 6096
Number of processors supported	2
Compatible processor series	AMD EPYC 9004
Built-in processor
Storage
Number of storage drives supported	14
Number of 2.5" bays	12
Storage drive sizes supported	2.5,M.2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Hot-swap HDD bays
Weight & dimensions
Width	438 mm
Depth	815 mm
Height	87.5 mm
Weight	31.7 kg

---
