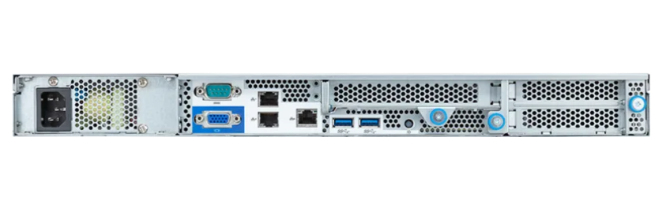

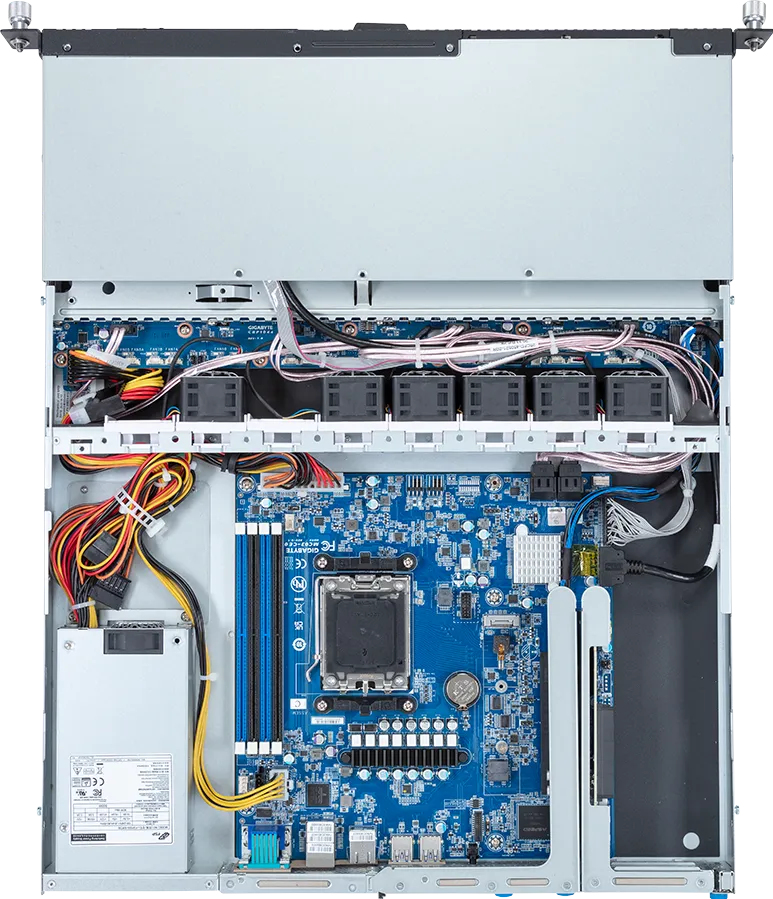

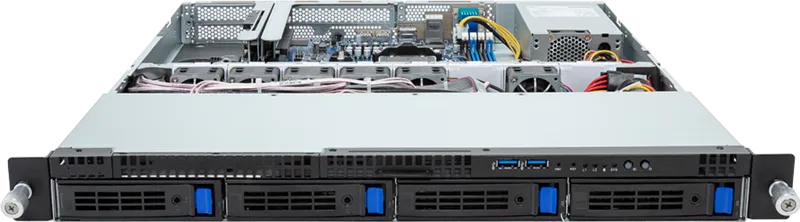

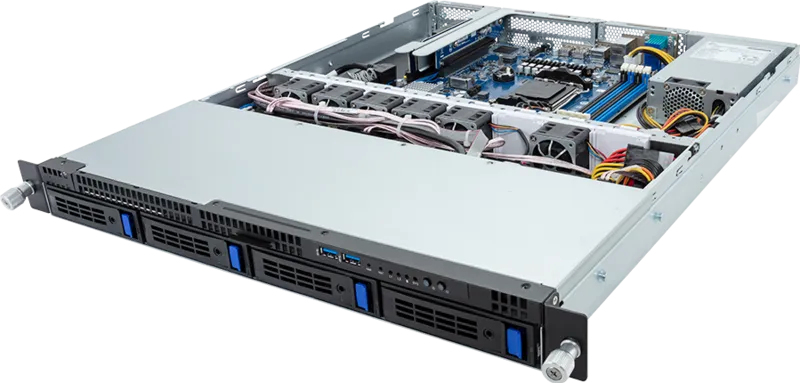

Gigabyte 6NR123C00DR000AA Barebone R123-C00-AA
|
1.285,91 EUR 1.285,91 EUR |
|
|
( 1.530,23 EUR incl. VAT ) ≈ £1,076.31 | ≈ $1,433.79 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1191617 |
| Mfg Part No: | 6NR123C00DR000AA |
| UPC/EAN: | 4719331855574 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, SSD, Status |
| Cooling type | Active |
| Number of fans | 6 fan(s) |
| Fan diameter | 4 cm |
| On/off switch | |
| Reset button | |
| Heat sink included | |
| Expansion slots | |
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Compatible operating systems | Windows 10 21H2; Windows 11 |
| Trusted Platform Module (TPM) | |
| Backplanes support | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| ECC | |
| Non-ECC | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 30 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x R123-C00-AA01; 1 x CPU heatsink; 1 x 2-Section Rail kit |
| Package width | 806 mm |
| Package depth | 594 mm |
| Package height | 241 mm |
| Package weight | 16 kg |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Power | |
| Power supply | 400 W |
| Number of main power supplies | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 3 - 6 A |
| DC output current (+5 V) | 16 A |
| DC output current (+12 V) | 33 A |
| 80 PLUS certification | 80 PLUS Gold |
| Redundant power supply (RPS) support | |
| Processor | |
| Motherboard chipset | AMD B650E |
| Processor socket | Socket AM5 |
| Number of processors supported | 1 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 5 |
| Number of 2.5" bays | 4 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, PCI Express 4.0 |
| RAID levels | 0, 1, 10 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 536 mm |
| Height | 43.5 mm |
| Weight | 13.9 kg |
