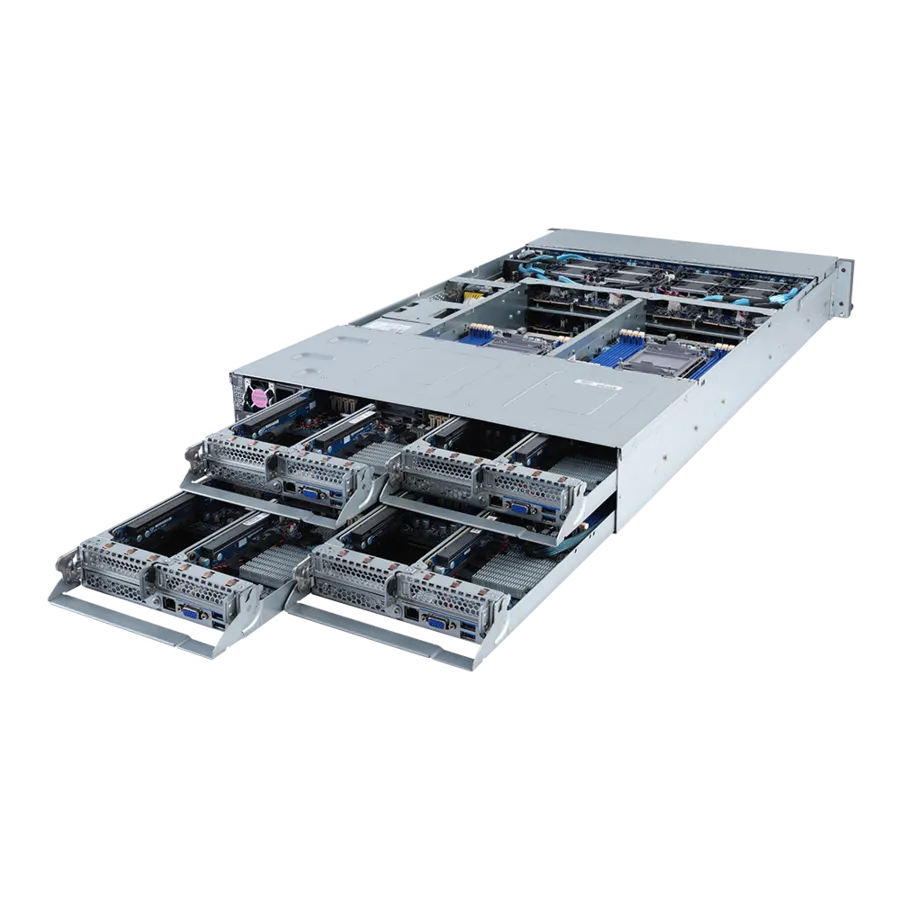

Gigabyte 6NH233Z80DR000AAW1 Barebone H233-Z80-AAW1
|
6.967,86 EUR |
|
|
( 8.291,75 EUR incl. VAT ) ≈ £5,832.10 | ≈ $7,769.16 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1191523 |
| Mfg Part No: | 6NH233Z80DR000AAW1 |
| UPC/EAN: | 4719331857318 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (2U) |
| LED indicators | Power, Reset, Status |
| Number of fans | 8 fan(s) |
| Fan diameter | 8 cm |
| On/off switch | |
| Reset button | |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| PCI Express x8 slots | 4 |
| PCI Express x16 slots | 4 |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Compatible operating systems | Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 8.2 ( x64) or later Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later VMware ESXi 6.7 Update3 P03 VMware ESXi 7.0 Update2 Citrix Hypervisor 8.2.0 |
| Trusted Platform Module (TPM) | |
| Backplanes support | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Memory | |
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128GB |
| Maximum RDIMM memory | 128 GB |
| Maximum UDIMM memory | 128 GB |
| Memory channels | Octa-channel |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Copper ethernet cabling technology | 10BASE-T |
| LAN controller | Intel X710-AT2 |
| Ethernet LAN | |
| Packaging data | |
| Packaging content | 1 x H262-NO0 8 x CPU heatsinks 1 x Rail Kit |
| Package width | 1180 mm |
| Package depth | 779 mm |
| Package height | 300 mm |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 4 |
| Power | |
| Power supply | 2200 W |
| Number of main power supplies | 2 |
| AC input voltage | 220 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12.6 A |
| 80 PLUS certification | 80 PLUS Platinum |
| Processor | |
| Motherboard chipset | Intel® C621 |
| Processor socket | LGA 4189 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 8 |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 28 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express, Serial ATA, Serial Attached SCSI (SAS) |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 87.5 mm |
| Height | 840 mm |
Questions & answers
What is the delivery time of Gigabyte 6NH233Z80DR000AAW1 Barebone H233-Z80-AAW1?
The article Gigabyte 6NH233Z80DR000AAW1 Barebone H233-Z80-AAW1 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 6NH233Z80DR000AAW1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 6NH233Z80DR000AAW1 Barebone H233-Z80-AAW1 always at the best possible price. We can give you a discount of 2% on Gigabyte 6NH233Z80DR000AAW1 Barebone H233-Z80-AAW1 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
