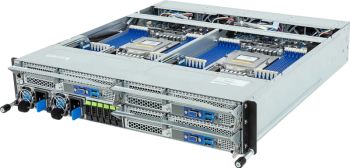

Gigabyte 6NH223Z10DR000AAP1 Barebone H223-Z10-AAP1
|
5.599,29 EUR 5.599,29 EUR |
|
|
( 6.663,16 EUR incl. VAT ) ≈ £4,686.61 | ≈ $6,243.21 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1191521 |
|---|---|
| Mfg Part No: | 6NH223Z10DR000AAP1 |
| UPC/EAN: | 4719331851439 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| LED indicators | Status |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| On/off switch | |
| Heat sink included | |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 6 |
| Number of M.2 (M) slots | 3 |
| Features | |
| Trusted Platform Module (TPM) | |
| Backplanes support | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 36 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dodeca-channel |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x H223-Z10-AAP1; 3 x CPU heatsinks; 1 x L-shape Rail kit |
| Package width | 862 mm |
| Package depth | 676 mm |
| Package height | 294 mm |
| Package weight | 28.2 kg |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 3 |
| Power | |
| Power supply | 3000 W |
| Number of main power supplies | 2 |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15.5 A |
| 80 PLUS certification | 80 PLUS Titanium |
| Redundant power supply (RPS) support | |
| Processor | |
| Motherboard chipset | AMD SoC |
| Processor socket | Socket SP5 |
| Number of processors supported | 3 |
| Compatible processor series | AMD EPYC 9004 |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 9 |
| Storage drive sizes supported | E1.S,M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 447.8 mm |
| Depth | 500 mm |
| Height | 87.5 mm |
| Weight | 17.4 kg |
Questions & answers
What is the delivery time of Gigabyte 6NH223Z10DR000AAP1 Barebone H223-Z10-AAP1?
The article Gigabyte 6NH223Z10DR000AAP1 Barebone H223-Z10-AAP1 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 6NH223Z10DR000AAP1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 6NH223Z10DR000AAP1 Barebone H223-Z10-AAP1 always at the best possible price. We can give you a discount of 2% on Gigabyte 6NH223Z10DR000AAP1 Barebone H223-Z10-AAP1 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
