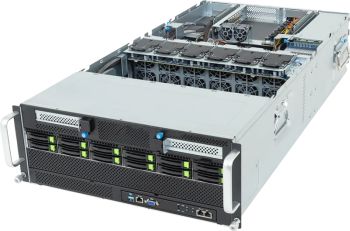

Gigabyte 6NG494ZB4DR000ACP2 G494-ZB4-AAP2 4U AMD EPYC 9005/9004 12x6,3 cm ( 2,5 inch ) 4x3000W content_copy

The Gigabyte G494-ZB4-AAP2 is a powerful 4U rack server, specifically designed for demanding computing applications such as AI training, high-performance computing, and data analysis. It supports two AMD EPYC™ 9005 or 9004 processors in Socket SP5 and features a 12-channel DDR5 RDIMM memory system with up to 48 DIMM slots for maximum memory capacity and bandwidth. The platform is designed to integrate up to eight dual-slot Gen5 graphics cards, including NVIDIA H200 NVL PCIe graphics cards with 4-way NVLink bridges and NVIDIA RTX PRO™ 6000 Blackwell Server Edition graphics cards. This makes the server ideal for GPU-intensive workloads. The storage architecture includes 12 hot-swap bays for 6,3 cm ( 2,5 inch ) drives with support for NVMe, SATA, and SAS-4, complemented by two M.2 slots (PCIe Gen3 x4). Expandability is ensured by a total of 14 PCIe Gen5 x16 slots, including eight for GPUs, two additional FHHL slots, one additional FHHL slot on the front panel, and three LP slots. Network integration is provided via two Gigabit Ethernet ports (10/100/1000 Mbit/s) based on the Intel® I350-AM2 LAN controller. Power supply is ensured by four redundant 3000-watt power supplies with 80 PLUS Titanium certification, enabling high efficiency and reliability even under load. The server features integrated LED indicators for HDD, SSD, and system status, a power switch, reset button, and 14 fans with 6 cm diameter for efficient cooling. An integrated graphics controller (Aspeed AST2600) supports remote management and monitoring. The operating temperature ranges from 10 to 35 °C, with relative humidity during operation at 8–80 %. The server is designed for use in data centers and server rooms, offering a robust, scalable platform for critical enterprise applications.

Design
Chassis type	Rack (4U)
Product colour	Black, Steel
LED indicators	HDD, SSD, System
Cooling type	Active
Number of fans	14 fan(s)
Fan diameter	6 cm
On/off switch
Reset button
Heat sink included
Expansion slots
PCI Express x16 (Gen 5.x) slots	14
Features
Trusted Platform Module (TPM)
Graphics
On-board graphics card model	Aspeed AST2600
Memory
Number of DIMM slots	48
Supported memory types	DDR5-SDRAM
Memory channels	Dodeca-channel
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
LAN controller	Intel® I350-AM2
Ethernet LAN
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	20 - 95%
Packaging data
Packaging content	1 x G494-ZB4-AAP2; 2 x CPU fansinks; 8 x GPU power cables (16-pin, 150mm); 1 x L-shape Rail kit
Package width	1300 mm
Package depth	800 mm
Package height	439 mm
Package weight	68.8 kg
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
Power
Power supply	3000 W
Number of main power supplies	4
Number of redundant power supplies supported	4
Number of redundant power supplies installed	4
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	14.5 - 16 A
80 PLUS certification	80 PLUS Titanium
Redundant power supply (RPS) support
Processor
Motherboard chipset	AMD SoC
Processor socket	Socket SP5
Number of processors supported	2
Compatible processor series	AMD EPYC 9004, AMD EPYC 9005
Built-in processor
Storage
Number of storage drives supported	14
Number of 2.5" bays	12
Storage drive sizes supported	2.5,M.2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, PCI Express 5.0, Serial Attached SCSI (SAS)-4, PCI Express 3.0
SSD form factor	M.2
Hot-swap HDD bays
Weight & dimensions
Width	448 mm
Depth	880 mm
Height	176 mm
Weight	66.8 kg

---
