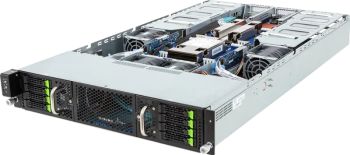

Gigabyte 6NG293S46DR000ABM1 Barebone G293-S46-ABM1
|
7.113,05 EUR 7.113,05 EUR |
|
|
( 8.464,53 EUR incl. VAT ) ≈ £5,953.62 | ≈ $7,931.05 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1191452 |
|---|---|
| Mfg Part No: | 6NG293S46DR000ABM1 |
| UPC/EAN: | 4719331861247 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, SSD, System |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| On/off switch | |
| Reset button | |
| Heat sink included | |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 6 |
| Features | |
| Trusted Platform Module (TPM) | |
| Backplanes support | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 16 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Octa-channel |
| Network | |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x G293-S46-AAM1; 2 x CPU heatsinks; 2 x GPU power cables (16-pin, 250mm); 2 x GPU power cables (16-pin, 280mm); 6 x Carriers; 1 x L-shape Rail kit |
| Package width | 1138 mm |
| Package depth | 730 mm |
| Package height | 275 mm |
| Package weight | 35.4 kg |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Power | |
| Power supply | 2200 W |
| Number of main power supplies | 2 |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15.5 A |
| 80 PLUS certification | 80 PLUS Titanium |
| Redundant power supply (RPS) support | |
| Processor | |
| Motherboard chipset | Intel C741 |
| Processor socket | LGA 4677 (Socket E) |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 8 |
| Number of 2.5" bays | 8 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS), PCI Express 5.0 |
| RAID levels | 1, 0, 5, 10 |
| SSD form factor | 2.5" |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 448 mm |
| Depth | 800 mm |
| Height | 87.5 mm |
| Weight | 33.5 kg |
Questions & answers
What is the delivery time of Gigabyte 6NG293S46DR000ABM1 Barebone G293-S46-ABM1?
The article Gigabyte 6NG293S46DR000ABM1 Barebone G293-S46-ABM1 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 6NG293S46DR000ABM1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 6NG293S46DR000ABM1 Barebone G293-S46-ABM1 always at the best possible price. We can give you a discount of 2% on Gigabyte 6NG293S46DR000ABM1 Barebone G293-S46-ABM1 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
