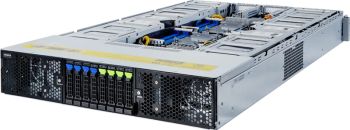

Gigabyte 6NG292280DR000IAY1 Barebone G292-280-IAY1
|
5.739,88 EUR |
|
|
( 6.830,46 EUR incl. VAT ) ≈ £4,804.28 | ≈ $6,399.97 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1191414 |
| Mfg Part No: | 6NG292280DR000IAY1 |
| UPC/EAN: | 4719331849481 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, Status |
| On/off switch | |
| Reset button | |
| Heat sink included | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 10 |
| Features | |
| Compatible operating systems | Citrix Hypervisor 8.2.0 or later; Red Hat Enterprise Linux 7.9 or later; Red Hat Enterprise Linux 8.2 or later; Red Hat Enterprise Linux 9.0 or later; SUSE Linux Enterprise Server 12 SP5 or later; SUSE Linux Enterprise Server 15 SP2 or later; Ubuntu 20.04 LTS or later; Ubuntu 22.04 LTS or later; VMware ESXi 6.7 Update3 P03 or later; VMware ESXi 7.0 Update2 or later; VMware ESXi 8.0 or later; Windows Server 2016; Windows Server 2019; Windows Server 2022 |
| Trusted Platform Module (TPM) | |
| Backplanes support | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 128 GB |
| Memory channels | Octa-channel |
| Network | |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| LAN controller | Intel X710-AT2 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 25 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x G292-280-IAY1; 2 x CPU heatsinks |
| Package width | 1133 mm |
| Package depth | 724 mm |
| Package height | 261 mm |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Power | |
| Power supply | 3200 W |
| Number of main power supplies | 2 |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 14 - 16 A |
| 80 PLUS certification | 80 PLUS Platinum |
| Redundant power supply (RPS) support | |
| Processor | |
| Motherboard chipset | Intel C621A |
| Processor socket | LGA 4189 |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 8 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, Serial ATA |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 448 mm |
| Depth | 800 mm |
| Height | 87.5 mm |
