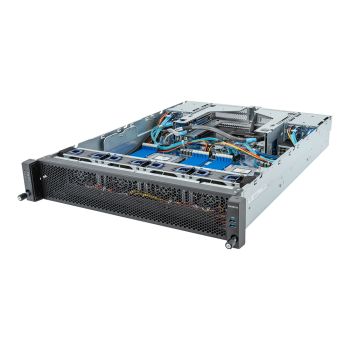

Gigabyte 6NE283Z90DR000AAD1
E283-Z90-AAD1 AMD EPYC 2U 4x 6,3 cm ( 2,5 inch ) 2x 1600W Gen4
|
3.998,69 EUR |
|
|
( 4.758,44 EUR incl. VAT ) ≈ £3,346.90 | ≈ $4,458.54 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1191348 |
| Mfg Part No: | 6NE283Z90DR000AAD1 |
| UPC/EAN: | 4719331850739 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Stainless steel |
| LED indicators | HDD, LAN, Node ID, Power, System |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| On/off switch | |
| Reset button | |
| Rack rails | |
| Rack-Friendly board | |
| Expansion slots | |
| PCI Express slots version | 5.0 |
| PCI Express x16 slots | 6 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Buffered memory type | Registered (buffered) |
| Maximum RDIMM memory | 96 GB |
| Supported RDIMM clock speeds | 4800 MHz |
| Memory channels | Dodeca-channel |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Other features | |
| On-board graphics card | |
| Packaging data | |
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Mini DisplayPorts quantity | 1 |
| Power | |
| Power supply | 1600 W |
| Number of main power supplies | 2 |
| Number of hot-swap PSUs supported | 2 |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| DC output current (+12 V) | 133 A |
| Thermal Design Power (TDP) | 300 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Hot-swap PSU | |
| Processor | |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYC 9004 |
| Processor series | AMD EPYC™ 9004 Series |
| Number of processors supported | 2 |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 4 |
| Number of 2.5" bays | 2 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| SSD form factor | 2.5" |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 625 mm |
| Height | 87 mm |
Questions & answers
What is the delivery time of Gigabyte 6NE283Z90DR000AAD1 E283-Z90-AAD1 AMD EPYC 2U 4x 6,3 cm ( 2,5 inch ) 2x 1600W Gen4?
The article Gigabyte 6NE283Z90DR000AAD1 E283-Z90-AAD1 AMD EPYC 2U 4x 6,3 cm ( 2,5 inch ) 2x 1600W Gen4 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 6NE283Z90DR000AAD1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 6NE283Z90DR000AAD1 E283-Z90-AAD1 AMD EPYC 2U 4x 6,3 cm ( 2,5 inch ) 2x 1600W Gen4 always at the best possible price. We can give you a discount of 2% on Gigabyte 6NE283Z90DR000AAD1 E283-Z90-AAD1 AMD EPYC 2U 4x 6,3 cm ( 2,5 inch ) 2x 1600W Gen4 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
