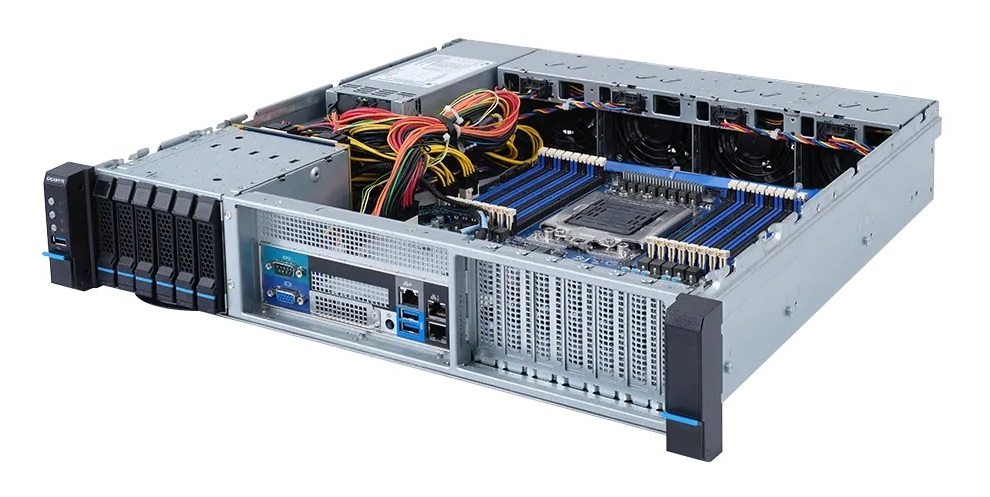

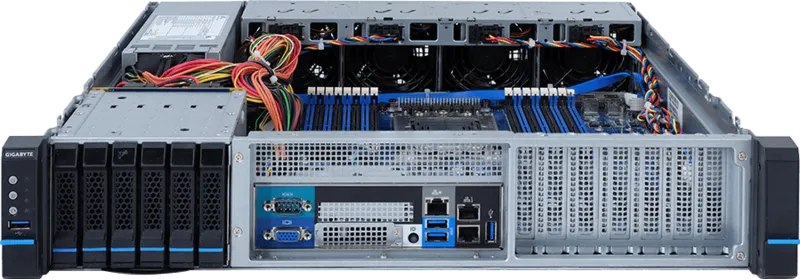

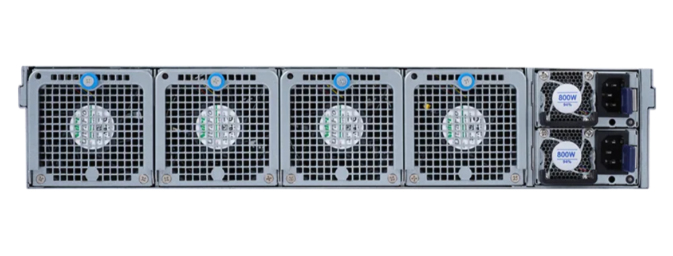

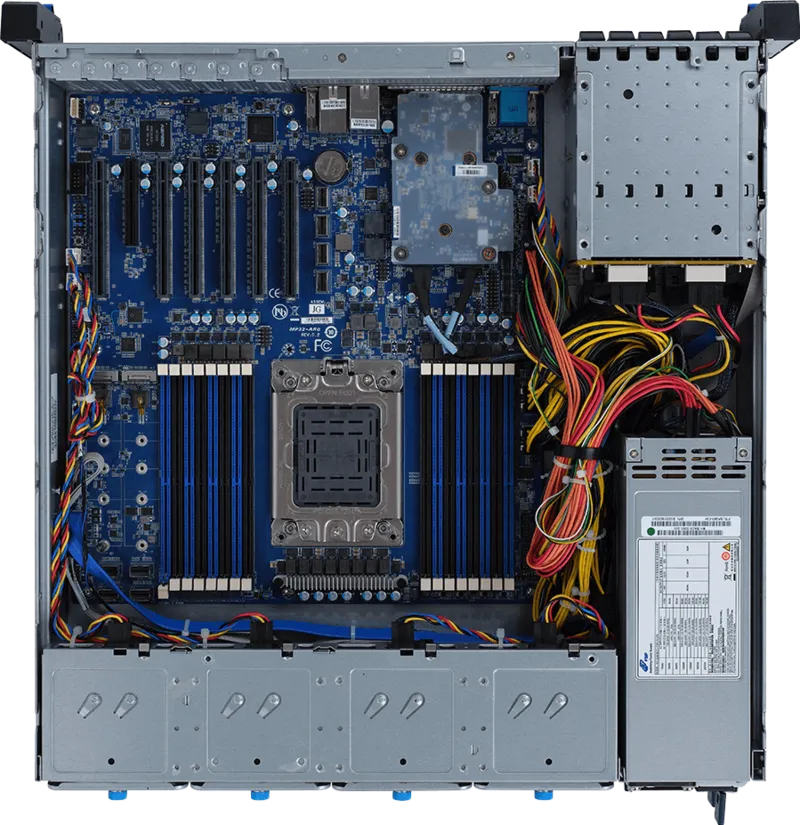

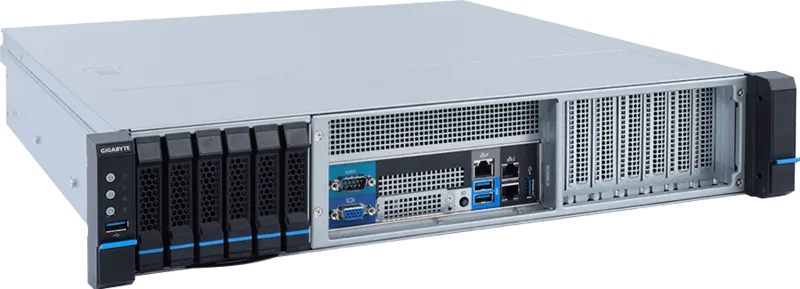

Gigabyte 6NE252P30MR-00
E252-P30 Ampere 2U 6x 6,3 cm ( 2,5 inch ) 2x 800W
|
2.340,99 EUR |
|
|
( 2.785,78 EUR incl. VAT ) ≈ £1,959.41 | ≈ $2,610.20 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1191282 |
|---|---|
| Mfg Part No: | 6NE252P30MR-00 |
| UPC/EAN: | 4719331600761 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, SSD, Status |
| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| On/off switch | |
| Reset button | |
| Heat sink included | |
| Expansion slots | |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 5 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Compatible operating systems | Red Hat Enterprise Linux 8.3 (aarch64) or later Red Hat Enterprise Linux 8.5 (aarch64) or later CentOS 8.3-2011 (aarch64) or later CentOS-8.4.2105 (aarch64) or later CentOS-8.5.2111 (aarch64) or later SUSE Linux Enterprise Server 15 SP2 (aarch64) or later SUSE Linux Enterprise Server 15 SP3 (aarch64) or later Ubuntu 18.04.5 LTS (aarch64) or later Ubuntu 20.04.1 LTS (aarch64) or later Fedora Server 33-1.2 (aarch64) or later Fedora Server 35-1.2 (aarch64) or later OracleLinux R8 U2 OracleLinu |
| Trusted Platform Module (TPM) | |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Memory | |
| Number of DIMM slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x E252-P30; 1 x CPU heatsink |
| Package width | 867 mm |
| Package depth | 588 mm |
| Package height | 276 mm |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Power | |
| Power supply | 800 W |
| Number of main power supplies | 2 |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| 80 PLUS certification | 80 PLUS Platinum |
| Redundant power supply (RPS) support | |
| Processor | |
| Motherboard chipset | Intel SoC |
| Processor socket | LGA 4926 |
| Number of processors supported | 1 |
| Compatible processor series | Ampere Altra |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 8 |
| Number of 2.5" bays | 6 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS), M.2 |
| RAID levels | 0, 1, 1E, 10 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 449 mm |
| Height | 86 mm |
Questions & answers
What is the delivery time of Gigabyte 6NE252P30MR-00 E252-P30 Ampere 2U 6x 6,3 cm ( 2,5 inch ) 2x 800W?
The article Gigabyte 6NE252P30MR-00 E252-P30 Ampere 2U 6x 6,3 cm ( 2,5 inch ) 2x 800W is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 6NE252P30MR-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 6NE252P30MR-00 E252-P30 Ampere 2U 6x 6,3 cm ( 2,5 inch ) 2x 800W always at the best possible price. We can give you a discount of 2% on Gigabyte 6NE252P30MR-00 E252-P30 Ampere 2U 6x 6,3 cm ( 2,5 inch ) 2x 800W if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
