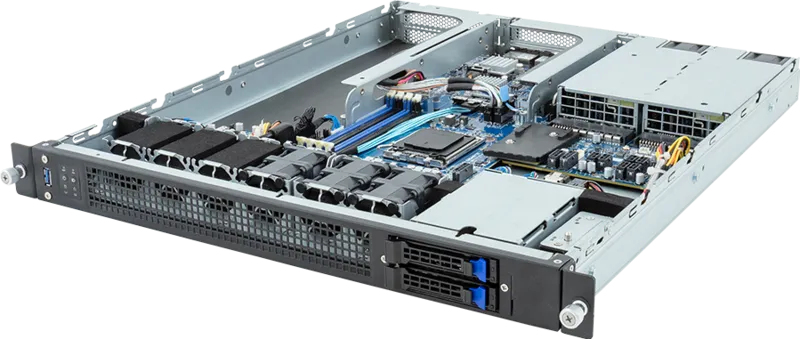

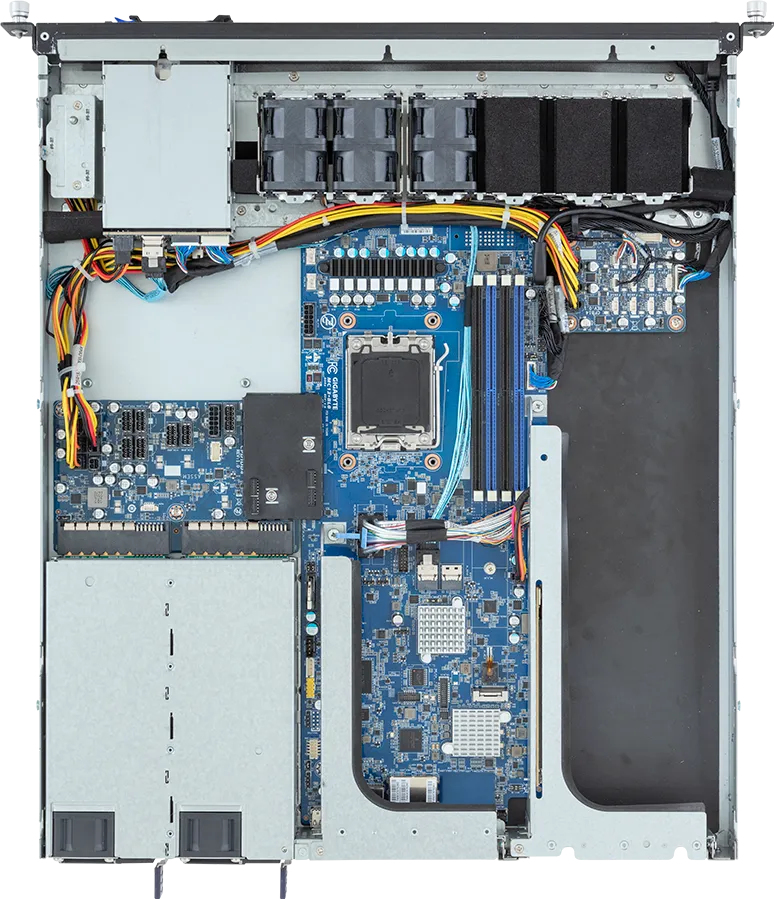

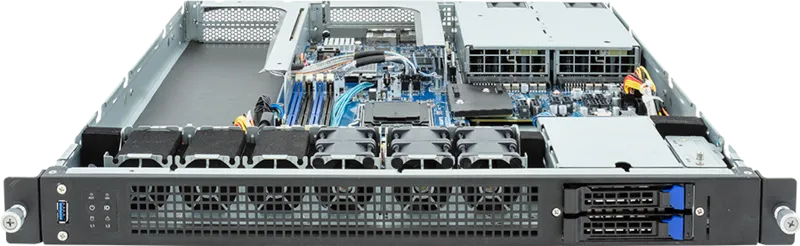

Gigabyte 6NE133C10MR000AAA1
E133-C10-AAA1 AMD EPYC 1U 2x 6,3 cm ( 2,5 inch ) 2x 550W
|
1.566,91 EUR |
|
|
( 1.864,62 EUR incl. VAT ) ≈ £1,319.34 | ≈ $1,759.64 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1191335 |
|---|---|
| Mfg Part No: | 6NE133C10MR000AAA1 |
| UPC/EAN: | 4719331854904 |
| Weight: | 0 kg |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, SSD, Status |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
| On/off switch | |
| Reset button | |
| Heat sink included | |
| Expansion slots | |
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| ECC | |
| Non-ECC | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 30 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x E133-C10-AAA1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable |
| Package width | 787 mm |
| Package depth | 594 mm |
| Package height | 226 mm |

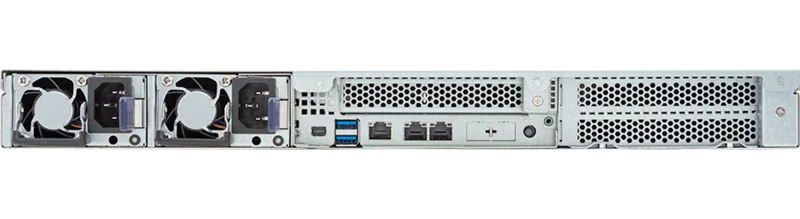

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Mini DisplayPorts quantity | 1 |
| Power | |
| Power supply | 550 W |
| Number of main power supplies | 2 |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 - 8 A |
| DC output current (+12 V) | 44 A |
| 80 PLUS certification | 80 PLUS Platinum |
| Redundant power supply (RPS) support | |
| Processor | |
| Motherboard chipset | AMD B650E |
| Processor socket | Socket AM5 |
| Number of processors supported | 1 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 3 |
| Number of 2.5" bays | 2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, PCI Express 4.0 |
| RAID levels | 0, 1 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 520 mm |
| Height | 43.5 mm |
| Weight | 12.4 kg |
Questions & answers
What is the delivery time of Gigabyte 6NE133C10MR000AAA1 E133-C10-AAA1 AMD EPYC 1U 2x 6,3 cm ( 2,5 inch ) 2x 550W?
The article Gigabyte 6NE133C10MR000AAA1 E133-C10-AAA1 AMD EPYC 1U 2x 6,3 cm ( 2,5 inch ) 2x 550W is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte 6NE133C10MR000AAA1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte 6NE133C10MR000AAA1 E133-C10-AAA1 AMD EPYC 1U 2x 6,3 cm ( 2,5 inch ) 2x 550W always at the best possible price. We can give you a discount of 2% on Gigabyte 6NE133C10MR000AAA1 E133-C10-AAA1 AMD EPYC 1U 2x 6,3 cm ( 2,5 inch ) 2x 550W if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
