FRITZ! GmbH 20002998 AVM FRITZ!Box 7590 AX content_copy

The FRITZ!Box 7590 AX brings ultra-fast Wi-Fi to your home with advanced Wi-Fi 6 (WLAN AX). Wi-Fi 6 significantly improves speed, efficiency, and reliability, allowing for seamless handling of multiple simultaneous applications such as 4K streaming, video conferencing, and cloud services. Equipped with VDSL Supervectoring 35b, the FRITZ!Box achieves internet speeds of up to 300 MBit/s. This is complemented by Gigabit LAN, USB 3.0, and a DECT base for cordless telephony and smart home applications.

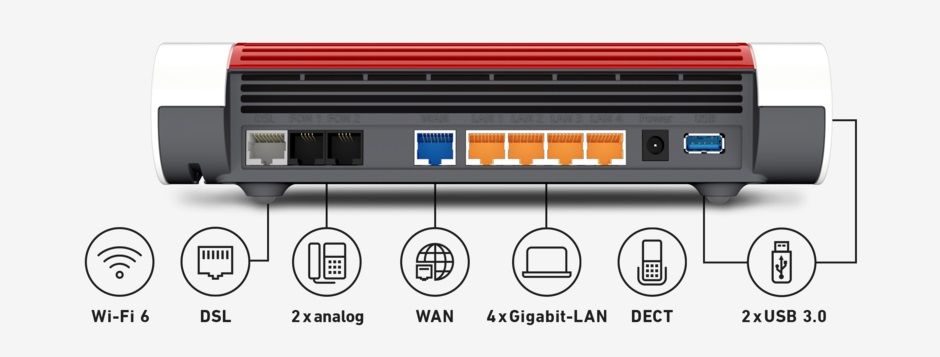

Connections:

• Internet access with VDSL (including Supervectoring) or ADSL2+
• Telephony via All-IP
• 4 x Gigabit LAN (10/100/1000 Base-T)
• 1 x Gigabit WAN for connection to cable/DSL/fiber modem or network
• WLAN Access Point IEEE 802.11ax, ac, n, g, a
• 2 x USB 3.0 for storage and printers
• DECT base for up to 6 handsets
• 2 a/b ports (either TAE/RJ11) for connecting analog phones, answering machines, and fax machines

Highlights:

• Internet speed of up to 300 MBit/s through VDSL Supervectoring 35b
• Secure internet use through pre-configured firewall
• Innovative dual-band 4x4 Wi-Fi 6 (WLAN AX) for a demanding home network with many devices
• Maximum range and ultra-fast transmission with 2,400 MBit/s (5 GHz) and 1,200 MBit/s (2.4 GHz)
• Mesh master function: Combines distributed WLAN access points (e.g., FRITZ!Repeater) into a dynamic intelligent WLAN network
• VoIP telephone system with various comfort functions for analog, DECT, and IP phones
• Smart home hub for light, heat, and power with FRITZ!DECT products
• Base for up to 6 cordless phones (e.g., all FRITZ!Fon models)
• Easy-to-use German interface for all settings
• Provides music, movies, and pictures via integrated media server, e.g., on a smart TV
• 2 powerful USB 3.0 ports for storage media (NAS), network printers, and mobile sticks
• 4 ultra-fast Gigabit LAN ports for computers, TVs, and other network devices

Product Type:

• Stationary router
• ear Category (ElektroG): Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Specifications:

• Modem type: ADSL2, VDSL, Supervectoring

Connections:

• Connection: USB
• USB standard: USB 3.0 (USB 3.2 Gen 1)
• Total number of copper ports: 4
• Number of analog interfaces: 2

Functions:

• DHCP server
• Hotspot
• VPN
• UTM functionality: Network firewall, VPN support, network address translation (NAT)
• Wall mountable
• Telephony functionality: integrated
• Number of DECT devices: 6
• DECT-ULE
• Media server
• Print server
• Parental controls

Power Supply:

• Power supply: external

Basic Properties:

• Color: White, Red
• Height: 48 mm
• Length/Depth: 184 mm
• Width: 250 mm
• Weight: 836 g

Scope of Delivery:

• FRITZ!Box 7590 AX
• Power supply
• 4-meter DSL connection cable
• 1.5-meter LAN cable
• TAE/RJ11 adapter
• Installation manual
