FRITZ! GmbH 20002960 FRITZ!Box 5530 Fiber content_copy

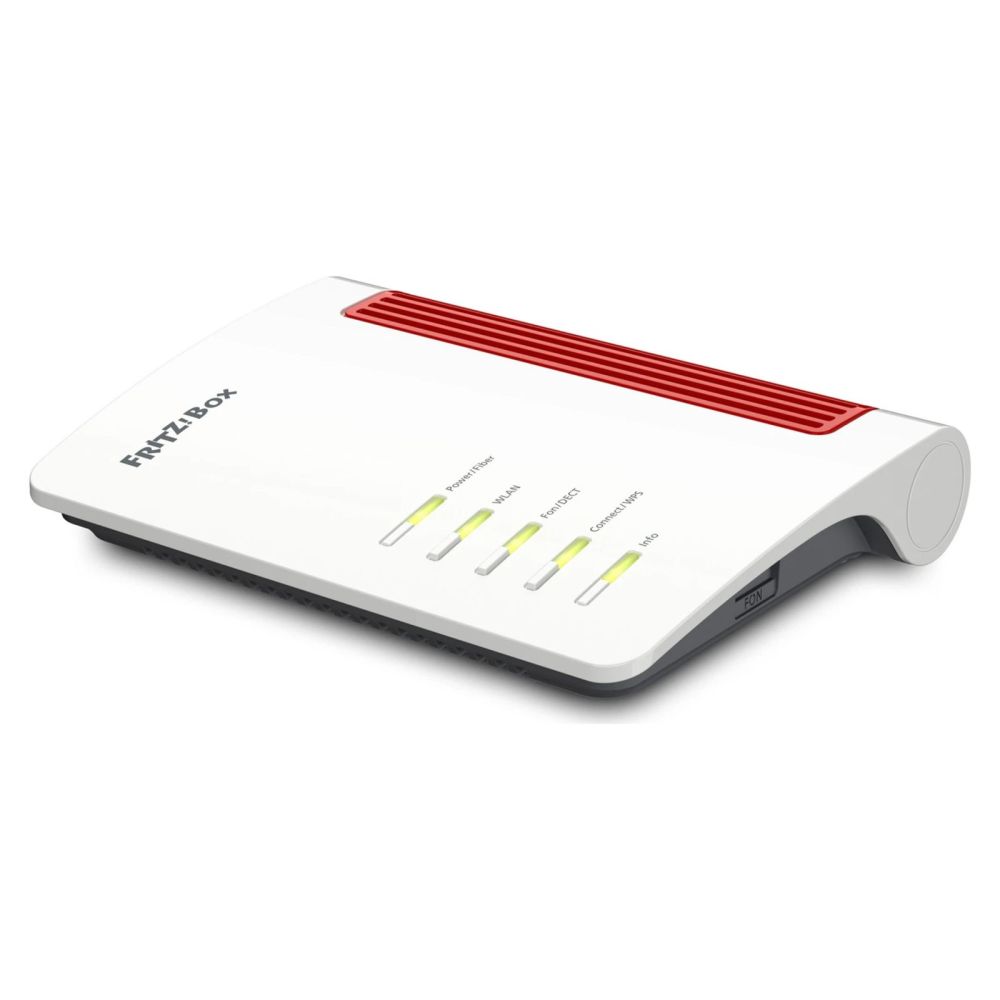

The FRITZ!Box 5530 Fiber from FRITZ! GmbH is a stationary tabletop router, specifically designed for use with fibre-optic connections. The device enables direct connection to AON and GPON networks without additional media converters or upstream modems. To this end, it features an integrated SFP-format slot into which the appropriate fibre-optic module (transceiver) can be inserted depending on the connection type. The box is designed for indoor use and offers comprehensive functionality for home networks, including telephony, WLAN, and Smart-Home integration.

Applications

The FRITZ!Box 5530 Fiber is primarily designed for use in private households where a stable and fast internet connection via fibre optics is required. It is suitable for apartments and houses with multiple end devices accessing the network simultaneously. The integrated telephony system supports analogue, DECT, and IP phones, enabling it to function as a central communication platform. Support for Smart-Home devices via protocols such as DECT-ULE and Han-Fun makes it a central control unit for intelligent home installations.

Functions and Equipment in Detail

The device offers dual-band WLAN functionality with support for the Wi-Fi 6 (802.11ax) standard, achieving a maximum WLAN data transfer rate of 2400 Mbit/s. The WLAN frequency bands include 2.4 GHz and 5 GHz, with the 5-GHz band operating at 2400 Mbit/s (HE160) and the 2.4-GHz band at 600 Mbit/s (QAM1024). WLAN functions also include support for standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), and Wi-Fi 6 (802.11ax). Security features include WPS, WPA, WPA2, WPA3, and guest access. Telephony functions include a VoIP telephone system with up to 5 integrated answering machines, remote access, and optional email forwarding. The DECT base supports up to 6 cordless phones, for example FRITZ!Fon models, and enables integration of Smart-Home applications.

Technology Explained Simply

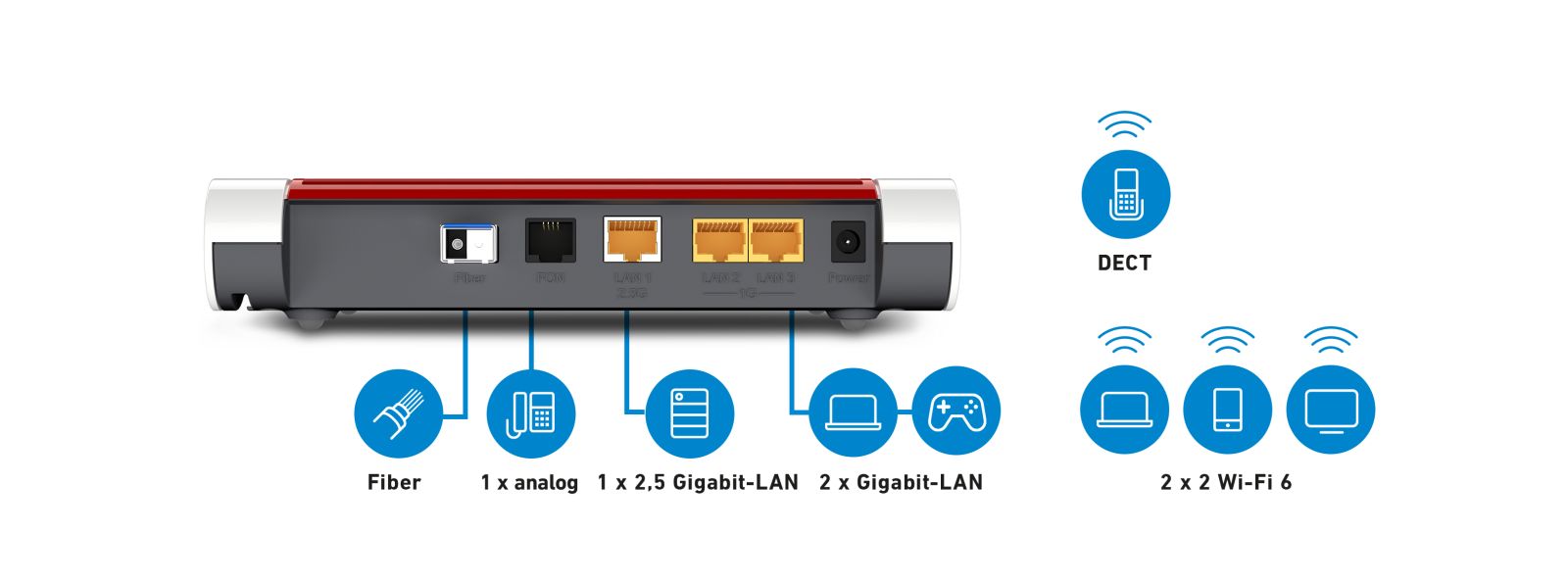

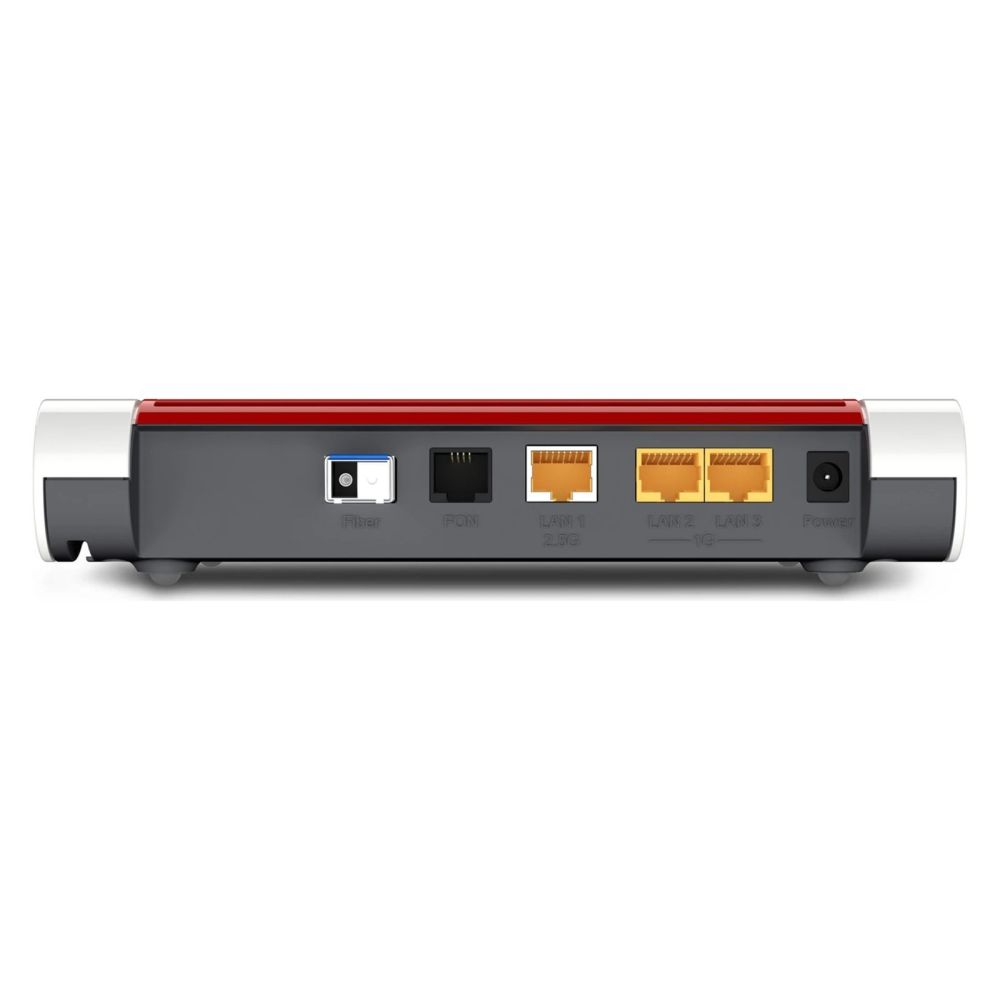

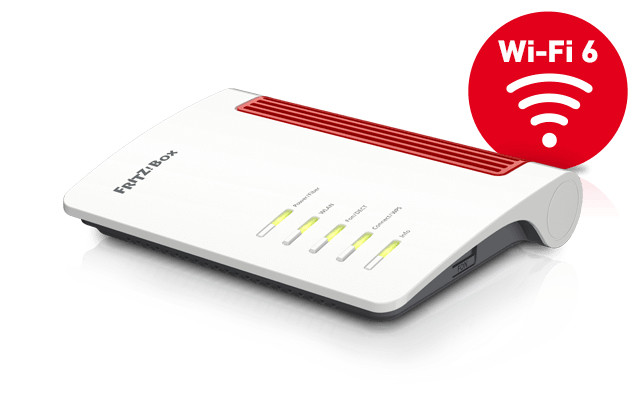

The FRITZ!Box 5530 Fiber uses the modern WLAN standard Wi-Fi 6, which enables simultaneous communication with multiple devices via Multi-User-MIMO technology. This improves network performance when multiple users are connected at the same time. The integrated 2.5-Gigabit LAN port (IEEE 802.3bz) supports data rates of 1000 and 2500 Mbit/s, ensuring fast connections to network devices. The three RJ-45 Ethernet ports allow connection of computers, streaming boxes, or other network devices. The fibre-optic connection is made via an SFP slot, enabling flexible adaptation to various fibre-optic connections. Power supply is provided via an external power adapter.

Compatibility and Accessories

The FRITZ!Box 5530 Fiber is compatible with various accessories that extend network performance. These include Cat.6a patch cables in various lengths, surge protection devices for LAN connections, and Powerline adapters such as the FRITZ!Powerline 1220 Set or FRITZ!Powerline 1260 WLAN AC Single. Integration with WLAN mesh systems using additional FRITZ! devices enables seamless network coverage throughout the living area. The DECT base supports up to 6 end devices, allowing connection of multiple cordless phones.

Installation and Mounting

The FRITZ!Box 5530 Fiber is designed as a tabletop router and can be placed on a flat surface. Installation is performed via the integrated user interface FRITZ!OS, accessible through a web browser (http://fritz.box). Setup of internet access, telephony, and WLAN settings is done via the graphical interface. Registration of DECT phones is done using the “Connect/WPS” button on the box, where the device’s PIN (preset to 0000) can be entered. Connection of an analogue phone is made via the RJ-11 socket on the side or rear of the box.

Operational Advantages

The FRITZ!Box 5530 Fiber provides a stable and fast internet connection via fibre optics with maximum flexibility through interchangeable SFP modules. Support for Wi-Fi 6 ensures high network performance with multiple simultaneous devices. The integrated telephony system with DECT base and Smart-Home functions makes the device a central control unit for the home network. Regular software updates via FRITZ!OS ensure continuous updating of features and security standards. Parental controls with time-based internet access and filtering functions offer additional control over internet usage.

Scope of Delivery

The scope of delivery includes the FRITZ!Box 5530 Fiber, a FRITZ!SFP AON module, a FRITZ!SFP GPON module, a power adapter, a 4-metre fibre-optic cable (LC/APC > LC/APC), a 1.5-metre LAN cable (RJ-45), and an installation guide. The devices are white in colour and have dimensions of 208 mm (width) × 150 mm (depth) × 37 mm (height). The manufacturer’s warranty is 5 years.

Antenna
Antenna design	Internal
Design
Product colour	White
Product type	Tabletop router
Logistics data
Legal guarantee	5 year(s)
Management features
MIMO
Mobile network
3G
4G
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	1000,2500 Mbit/s
Networking standards	IEEE 802.3bz
Ethernet LAN
Dynamic DNS (DDNS)
Packaging content
Cables included	Fiber, LAN (RJ-45)
Packaging data
Package width	265 mm
Package depth	190 mm
Package height	72 mm
Package weight	760 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
RJ-11 ports quantity	1
USB port
Protocols
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	WPS
Guest access
Weight & dimensions
Width	208 mm
Depth	150 mm
Height	37 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2400 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

---
