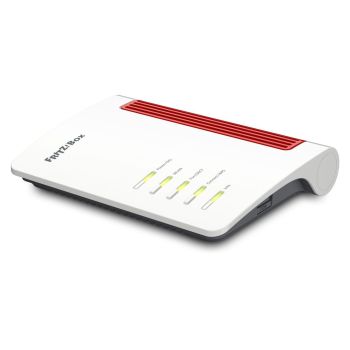

FRITZ! GmbH 20002930 FRITZ!Box 7530 AX content_copy

The AVM FRITZ!Box 7530 AX is a stationary IP router designed for indoor use, developed for IP-based DSL connections. The router connects via ADSL, ADSL2+, and VDSL, including VDSL-Supervectoring 35b, and supports internet speeds of up to 300 MBit/s. It is designed as a tabletop router but also offers the option for wall mounting and is available in Grey, Red, and White. The box features an integrated VoIP telephone system with a DECT base station, supporting up to six cordless phones as well as an analog telephone or fax machine.

Applications
The FRITZ!Box 7530 AX is suitable for use in private households and small offices where a stable and fast internet connection, along with comprehensive telephony and networking functionality, is required. It can be operated on any DSL and IP-based connection, including those from Telekom, 1&1, Vodafone, or O2. Alternatively, it can also be used behind a fiber optic or cable modem to extend existing WLAN networks. Support for 3G/4G USB modems enables flexible use in the absence of a DSL connection.

Functions and Specifications in Detail
The router offers Wi-Fi 6 (802.11ax) as the top WLAN standard, ensuring high data rates and improved efficiency with multiple simultaneous devices. The WLAN operates in Dual-Band mode with frequencies of 2.4 GHz and 5 GHz. The maximum WLAN data transfer rate is 2400 Mbit/s, with 1800 Mbit/s available in the 5-GHz band and 600 Mbit/s in the 2.4-GHz band. This bandwidth enables simultaneous operation of multiple 4K streams, video chats, downloads, and cloud applications without performance loss. The MIMO technology and OFDMA method ensure efficient use of the frequency spectrum and reduce latency.

Technology Explained Simply
The FRITZ!Box 7530 AX uses Wi-Fi 6 (802.11ax), the current WLAN standard, which offers higher efficiency, lower latency, and better performance with multiple simultaneous devices compared to older versions like Wi-Fi 5 (802.11ac). The Dual-Band function allows the use of both frequency bands, with the 5-GHz band providing higher speeds and the 2.4-GHz band offering better range. The Mesh function enables integration with additional FRITZ! devices such as repeaters to create a unified, intelligent WLAN network, where end devices automatically select the best access point (WLAN Mesh Steering). The firewall and support for WPA2 and WPA3 ensure a high security standard for the network.

Compatibility and Accessories
The FRITZ!Box 7530 AX is compatible with a wide range of accessories. It can be combined with FRITZ!DECT Repeater 100 or FRITZ!DECT 210 to extend the range of the DECT base station. For expanding the WLAN network, FRITZ!WLAN USB Stick AC 430 MU-MIMO, FRITZ!Powerline 1220 Set 1200 MBit 2er Kit, or FRITZ!Powerline 1260 WLAN AC Single 1200 MBit are suitable. The FRITZ!Powerline 1260E WLAN AC Set 1200 MBit offers a combination of Powerline and WLAN technology. For network cable connections, Patchkabel Cat.6a in various lengths are available, as well as 130C381200-I E-DAT Cat.6A 2-Port UP0 Anschlussdose for structured cabling. The Kit for AVM Fritz!Box 5530/6850LTE/7530/7530AX RM-FB-T2 supports wall mounting. The TP Cat 6 Überspannungs- und Blitzschutz Surge Protector ALL95100 protects the connections from voltage surges.

Installation and Mounting
The FRITZ!Box 7530 AX can be set up as a tabletop router or mounted on the wall. The package includes an AC power adapter, a DSL connection cable (4 m), a LAN cable (1.5 m), an operating manual, and a quick start guide. Installation is done via the integrated user interface, available in German. Setup is simple and requires no special technical knowledge. Automatic channel selection optimizes WLAN performance without manual intervention.

Operational Advantages
The router provides a Gigabit LAN connection with four RJ-45 ports, suitable for connecting computers, TVs, and other network devices. The USB port allows the use of USB storage devices as a NAS, functioning as a media server to make movies, music, and pictures available on the home network. An integrated print server enables network printing. The DHCP server and client functions, as well as Dynamic DNS (DDNS), support network configuration. VPN support (IPSec) enables secure remote connections. Parental controls and guest access offer additional control options. Power is supplied via an external power adapter with 230 V input voltage; power consumption in standard operation is 6 W. The operating temperature range is 0 to 40 °C, and the relative humidity during operation is 10–90 %.

Security and Firmware
The FRITZ!Box 7530 AX features an integrated firewall and supports Network Address Translation (NAT). Security algorithms WPA2 and WPA3 protect the WLAN. The firmware is upgradable, allowing new features and security updates to be provided via FRITZ!OS. The MyFRITZ! function enables secure remote access to the box and network storage from anywhere. The box is designed for use in a WLAN Mesh, acting as the Mesh Master and controlling connected repeaters. The DECT-ULE/HAN-FUN technology enables integration of smart home devices such as switchable power outlets or heating regulators.

Summary
The AVM FRITZ!Box 7530 AX is a powerful router with Wi-Fi 6 (802.11ax), Dual-Band WLAN, VDSL-Supervectoring 35b, and Gigabit LAN ports. It offers comprehensive telephony and networking functionality, including VoIP telephone system, DECT base station, media server, print server, and USB sharing. The Mesh function and compatibility with accessories such as repeaters and Powerline adapters extend its functionality. The secure network environment provided by firewall, WPA2/WPA3, and VPN support, along with easy installation, make it a suitable solution for private and small business networks.

Note: The specifications regarding height (37 mm vs. 45 mm) and width (208 mm vs. 200 mm), as well as weight (318 g vs. 318 g), vary slightly between sources. The technical data in the shop system have already been corrected and match the manufacturer's specifications.

Antenna
Antenna design	Internal
Design
Product colour	Grey, Red, White
Product type	Tabletop router
Wall mountable
Indication light
DSL features
ADSL
VDSL
Features
Firmware upgradeable
Logistics data
Warranty period	5 year(s)
Legal guarantee	5 year(s)
Management features
Wake-on-LAN ready
Intelligent Mesh technology
MIMO
Network
Ethernet LAN interface type	Gigabit Ethernet
VPN support	IPSec
Ethernet LAN
Automatic channel selection
Dynamic DNS (DDNS)
USB sharing
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Other features
Cable length	1.5 m
Packaging content
Cables included	DSL, LAN (RJ-45)
AC adapter included
Manual
Quick start guide
Packaging data
Package width	190 mm
Package depth	270 mm
Package height	72 mm
Package weight	740 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
USB port
DC-in jack
Power
Power source type	DC
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	6 W
Protocols
DHCP client
DHCP server
Security
Security algorithms	WPA2, WPA3
Firewall
Guest access
Network address translation (NAT)
WAN connection
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	200 mm
Depth	152 mm
Height	45 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2400 Mbit/s
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	1800 Mbit/s
WLAN data transfer rate (second band)	600 Mbit/s

---
