Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted

Your rating:
Average rating
product review for Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted
( 4.6 / 5 ) 14 ratings

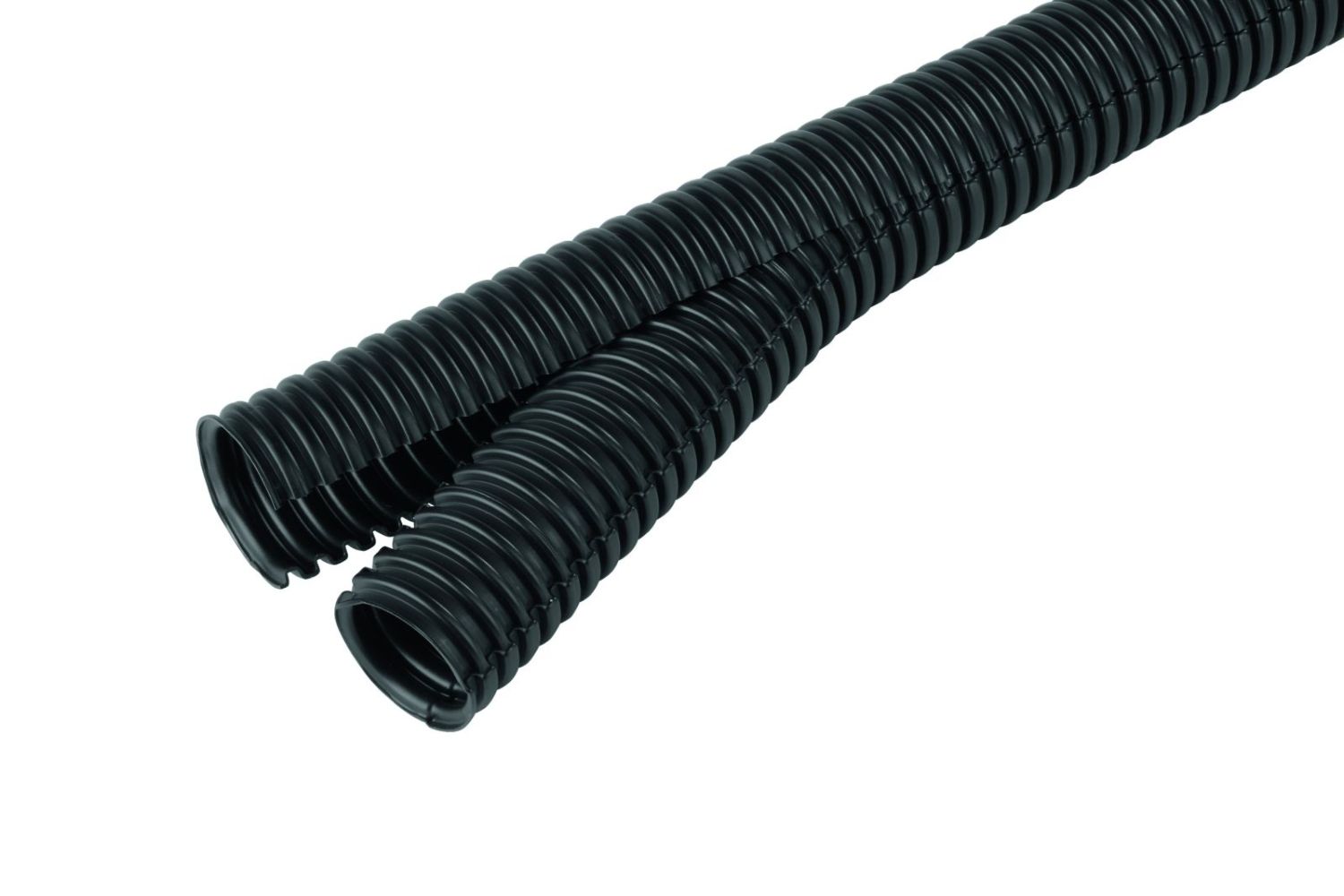

Fränkische Rohrwerke 38401600
This image may differ from the desired article.
Fränkische Rohrwerke 38401600Fränkische Rohrwerke 38401600
368,60 EUR 384,12 EUR
( 438,63 EUR incl. VAT )
≈ £308.52  |  ≈ $405.09
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
Sales unit: 50 meters
In Stock: 2 meters
1x Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted
Datasheet:file_download Download
Lieske Part No.:563249
Mfg Part No: 38401600
UPC/EAN: 4013960357776
Weight:3 kg
Type:Co-flex PP-UV NW 16 schwarz 50m
Graduated prices net
From piecesPrice per meters
4354,78 EUR
8340,96 EUR
12327,13 EUR
16313,31 EUR

Product information for Fränkische Rohrwerke 38401600:

The Co-flex PP-UV NW 16 black 50m from Fränkische Rohrwerke is a slotted, closable corrugated pipe made of polypropylene (PP-MOD-BS-UV), specifically designed for outdoor use. It serves the protective and guiding function for electrical cables in outdoor installations, particularly in solar installations, photovoltaic systems, and satellite systems. The product features high UV stability, guaranteed for up to 20 years, and provides protection against damage from rodents and gnawing animals. The flexible design allows for easy installation around already installed cables, with the system being processed by opening the inner pipe, inserting the cable, and then closing it by sliding on the outer pipe.

Applications
This corrugated pipe is primarily intended for outdoor applications, where it must provide protection against environmental influences such as sunlight, moisture, and mechanical stress. The main application areas are solar and photovoltaic installations as well as satellite systems, where a durable, weather-resistant, and animal-resistant cable routing is required. The UV resistance and temperature resistance from -40 °C to +105 °C (according to LV312-3) and from -25 °C to +105 °C (according to DIN EN 61386-22) make it particularly suitable for these applications.

Functions and Equipment in Detail
The product is designed as a slotted, two-part system, allowing it to be installed without tools and without damaging existing installations. The inner surface of the corrugated pipe is not coated with a high-slip layer, which must be considered during cable installation. The slotted design enables the cable to be inserted, and then the system is closed by sliding on the outer pipe. The black color supports heat absorption and is designed for outdoor use.

Technology Explained Simply
The corrugated pipe is made of polypropylene (PP), a thermoplastic polymer known for its chemical resistance, particularly against mineral oils, fats, and many organic solvents. It is not resistant to halogen-containing, oxidizing, and aromatic compounds. The protection class IP40 means the product is protected against solid foreign objects with a diameter of 1.0 mm or more and against splashing water from any direction. The fire protection class UL94 V2 indicates that the material is not flame-propagating, but may produce flames when ignited. The temperature resistance according to DIN EN 61386-22 (VDE 0605-22) ranges from -25 °C to +105 °C, which is sufficient for use under various climatic conditions.

Compatibility and Accessories
The Co-flex PP-UV is compatible with various accessories, such as the threaded two-part connector and nut (COV 491 10), the Cofix connector (491 10), and the mounting clamp COS 491 20. These components enable secure and durable connections and mounting of the corrugated pipe on various substrates. An auxiliary tool, the insertion tool 490 90, supports installation.

Installation and Mounting
Installation is carried out by opening the slotted inner pipe, inserting the cables, and then closing the system by sliding on the outer pipe. The system is designed for surface mounting, not for flush mounting. The product is supplied in 50-m coils, with the base unit being the meter.

Operational Advantages
The UV and temperature resistance ensures a long service life outdoors. Protection against rodents prevents damage from gnawing. The easy tool-free installation and the ability to mount the system around already installed cables reduce installation time and costs. The non-flame-propagating property increases safety when used in electrical installations.

The item price shown refers to 50 meters Fränkische Rohrwerke 38401600
Delivery form
Minimum quantity50
Pallet content700
Base unit quantityMetre
Technical data
Nominal size in inchOther
Outer diameter22 mm
Inner diameter16.0 mm
MaterialPolypropylene
Degree of protection (IP)IP40
Flame retardant per UL94V2
ColourBlack
Sheathing materialNot sheathed
Bending strengthFlexible
UV resistantJa
Oil resistantJa
Lengthwise slottedJa
Closable (two-part)Ja
Flush-mounted installationNo
Surface mountingJa
With draw wireNo
High conducting inner coatingNo
Approved according to DIN EN 61386-23No
Approved according to URNo
Approved according to CSANo
Approved according to LUL/British StandardNo
Approved according to Lloyd's Register TANo
Approved according to UTACNo
Approved according to NF F 16-101No
Approved according to DIN 5510No
Approval according to VdTÜV/GGVSEBNo


Product data sheet
Datasheet for Fränkische Rohrwerke 38401600, EAN: 4013960357776

Questions & answers

What is the delivery time of Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted ?

The article Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted is currently in stock

According to our experience the article is ready for dispatch within 1 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 38401600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 meters of Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted we can offer you a price of 354,78 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 38401600 Fränkische Co-flex PP-UV NW 16 50m-ring black Ku-profiled pipe slotted is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
