Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible

Your rating:
Average rating
product review for Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible
( 4.6 / 5 ) 30 ratings

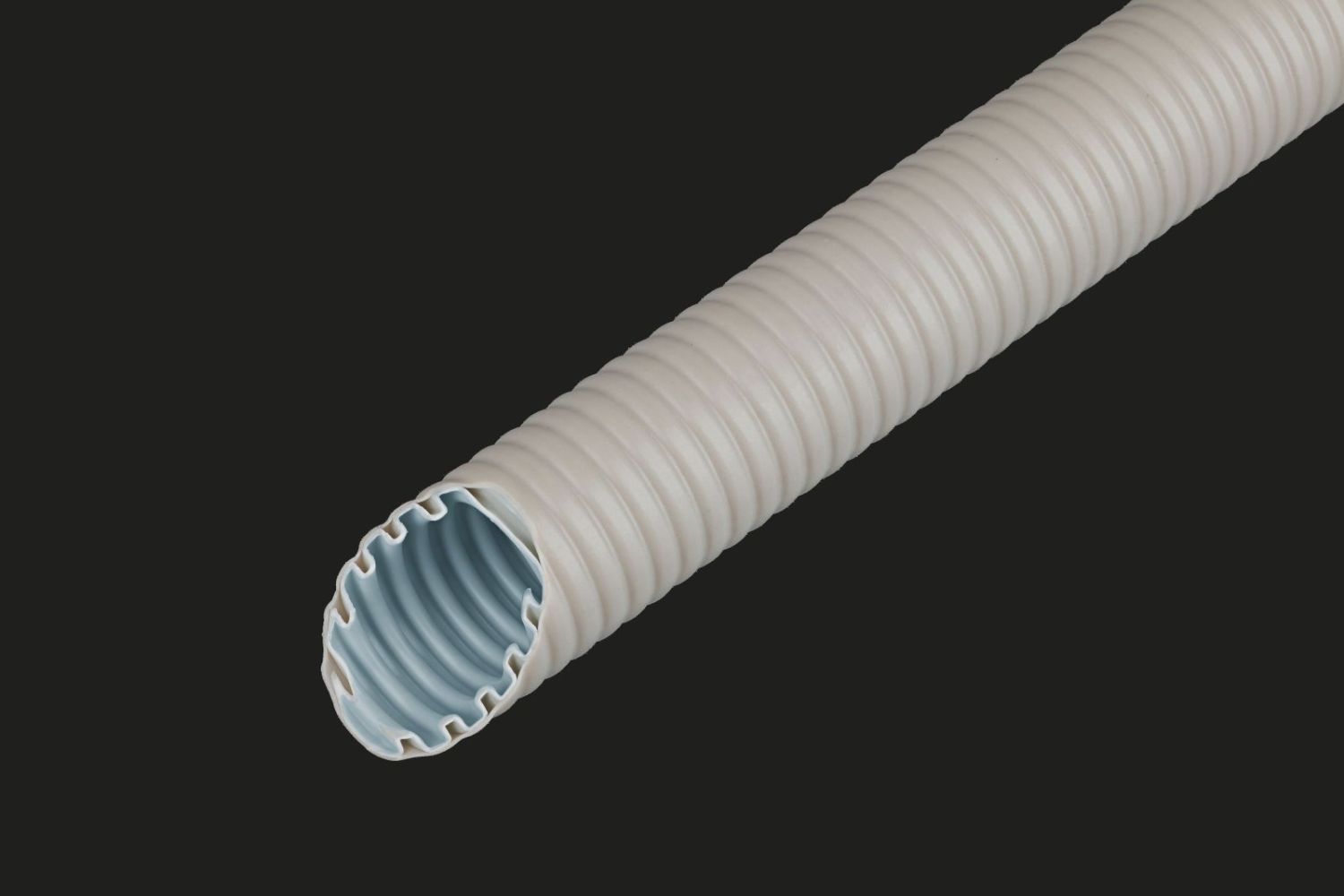

Fränkische Rohrwerke 25310063
This image may differ from the desired article.
Fränkische Rohrwerke 25310063Fränkische Rohrwerke 25310063Fränkische Rohrwerke 25310063
341,76 EUR 356,15 EUR
( 406,69 EUR incl. VAT )
≈ £286.05  |  ≈ $375.59
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 25 meters
In Stock: >10 meters
1x Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible
Datasheet:file_download Download
Lieske Part No.:144573
Mfg Part No: 25310063
UPC/EAN: 4013960180916
Weight:10.8 kg
Type:FFKuS-EM-F 63
Graduated prices net
From piecesPrice per meters
4313,56 EUR
8285,37 EUR
12257,17 EUR
16228,98 EUR

Product information for Fränkische Rohrwerke 25310063:

The FFKuS-EM-F 63 from Fränkische Rohrwerke is a medium, flexible plastic corrugated pipe made of polyvinyl chloride (PVC), specifically developed for the installation of electrical wiring in various construction areas. The pipe features a high-slip inner layer that facilitates the insertion of cables and wiring over long distances. It is available in grey (RAL 7035) and complies with standards DIN EN 61386-1 and DIN EN IEC 61386-22, which apply to electrical installation pipe systems. The pressure resistance class is medium (Class 3, 750 N/5 cm), as is the impact resistance class, ensuring mechanical durability in use. The pipe is non-flame propagating and thus suitable for use in electrical installations.

Applications
The FFKuS-EM-F 63 is intended for a wide range of installation scenarios. It can be installed under plaster, on plaster, in screed, in concrete, in hollow walls, as well as in the ground. Installation in the ground is also possible at low temperatures, with temperature resistance up to +60 °C. The pipe is not intended for outdoor use, as it is not UV-resistant. It is also suitable for machine and plant installations, as well as for use on wooden structures.

Functions and Features in Detail
A central feature of the pipe is the high-slip inner layer, which enables cable insertion without additional tools or lubricants. This reduces installation time and minimizes the risk of damage to the wiring. The pipe is flexible, allowing for adaptable installation in various geometries. The outer diameter is 63 mm, the inner diameter 51 mm, providing sufficient capacity for multiple cables. The material is halogen-free and produces little smoke when exposed to fire, increasing safety in use.

Technical Explanation
The standard DIN EN 61386-22 sets specific requirements for flexible electrical installation pipe systems. The FFKuS-EM-F 63 meets these requirements, particularly regarding pressure and impact resistance. The pressure resistance of 750 N/5 cm means the pipe remains undamaged under mechanical stress, such as during installation in screed or concrete. The impact resistance ensures stability under sudden mechanical forces. The use of PVC as the material provides high chemical resistance against many liquids and gases, such as mineral oil, water, vinegar, or antifreeze, although it is not resistant to chlorine-containing gases or strong acids.

Compatibility and Accessories
Compatible accessories are available for connecting and terminating pipe lines. For example, the Fränkische SMSKu-EZF 63 is a tension-resistant plastic push-fit coupling in transparent design, enabling secure connections between pipe sections. Additional accessories such as end caps, clamps, or transition couplings can be used depending on the application scenario to complete or extend the installation.

Installation and Mounting
Installation depends on the location and can be done under plaster, on plaster, in screed, in concrete, or in the ground. The flexible pipe can easily be bent into the desired shape, with a minimum bending radius of 300 mm. Installation in the ground is possible at temperatures from -25 °C, with a maximum operating temperature of +60 °C. The installation requires no special tools, as the pipe is easy to cut and connect. The use of push-fit couplings enables quick and secure connections without additional threading.

Operational Advantages
The use of the FFKuS-EM-F 63 offers several operational advantages. The high-slip inner layer reduces friction resistance during cable insertion, shortening installation time and minimizing the risk of cable damage. The mechanical strength ensures long service life and reliability in various environments. Compliance with standards and the non-flame propagating property increase safety in electrical installations. The pipe is suitable for a wide range of applications, making electrical installation planning and execution more flexible.

The item price shown refers to 25 meters Fränkische Rohrwerke 25310063
Delivery form
Minimum quantity25
Pallet content150
Base unit quantityMetre
Technical data
MaterialPolyvinyl chloride (PVC)
Bending strengthPliable
Pressure resistance class per EN 61386-1medium (Class 3, 750 N)
Impact resistance class per EN 61386-1medium (Class 3, 750 N)
Inner diameter51 mm
Outer diameter63 mm
ColourGrey
RAL-number7035
UV resistantNo
With sleeveNo
Flush-mounted installationJa
Surface mountingJa
Suitable for installation on woodJa
Suitable for hollow wall installationJa
Suitable for concrete installationJa
Machine and plant installationJa
Suitable for subsurface installation (screed))Ja
Outdoor installationNo
Suitable for underground installationJa
High conducting inner coatingJa
With meter displayNo


Product data sheet
Datasheet for Fränkische Rohrwerke 25310063, EAN: 4013960180916

Questions & answers

What is the delivery time of Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible ?

The article Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 25310063 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 meters of Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible we can offer you a price of 313,56 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 25310063 Fränkische FFKuS-EM-F 63 grey medium plastic corrugated pipe flexible is offered by us in a sales unit of 25 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
