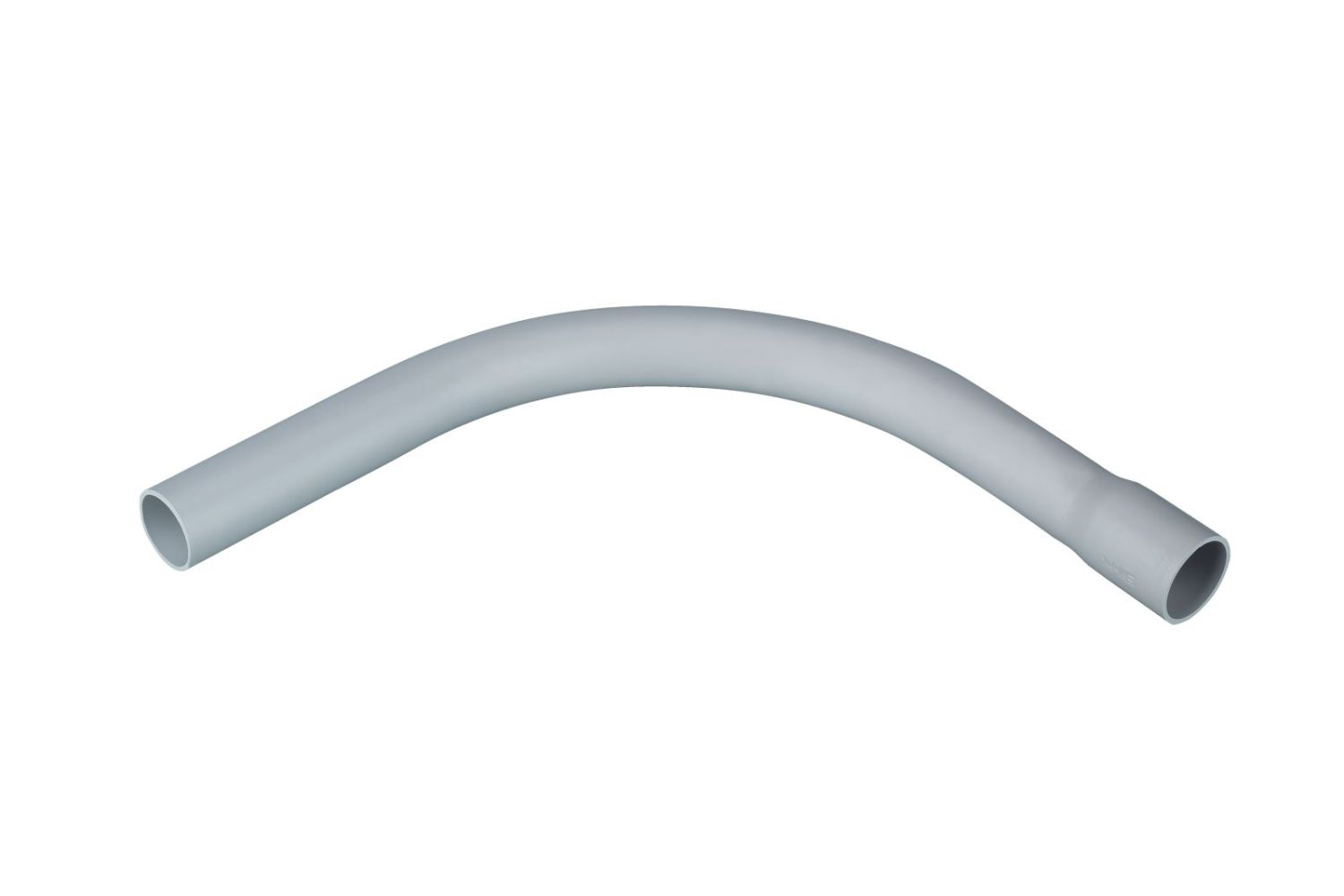

Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey

Your rating:
Average rating
product review for Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey
( 4.1 / 5 ) 7 ratings
Fränkische Rohrwerke 23260032
This image may differ from the desired article.
Fränkische Rohrwerke 23260032Fränkische Rohrwerke 23260032Fränkische Rohrwerke 23260032
492,78 EUR 495,65 EUR
( 586,41 EUR incl. VAT )
≈ £412.46  |  ≈ $541.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Sales unit: 25 pieces
1x Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey
Datasheet:file_download Download
Lieske Part No.:566809
Mfg Part No: 23260032
UPC/EAN: 4013960180534
Weight:1.71 kg
Type:SBSKu-EM-H0 32

Product information for Fränkische Rohrwerke 23260032:

The SBSKu-EM-H0 32 from Fränkische Rohrwerke is a plastic push-fit elbow for electrical installation pipe systems, specifically designed for use with the plastic straight pipe FPKu-EM-F-H0. The component is made of a special plastic known as PPE (Polyphenylenether) and is finished in grey (RAL 7035). It features a one-sided formed socket that enables a secure push-fit connection and is rigid, not flexible. The elbow has a 90° angle and is suitable for installation in both indoor and outdoor environments, with an untreated and uncoated surface.

Applications
This push-fit elbow is used in electrical installations where a secure and durable connection between pipe sections is required. It is intended for use in machines, prefabricated construction, screed, concrete, wood, soil, behind plaster, on plaster, and outdoors. The application is particularly suitable for areas requiring high mechanical strength and safe fire behaviour, such as industrial plants or buildings with enhanced safety requirements.

Functions and Equipment in Detail
The SBSKu-EM-H0 32 is designed as a push-fit elbow, allowing it to be integrated into the pipe system without additional fastening elements. The one-sided formed socket ensures a stable connection to the pipe. The grey colour (RAL 7035) meets standard requirements for electrical installation pipes. The component is not UV-resistant, meaning it may exhibit discoloration or material changes under prolonged direct sunlight exposure. It is non-flame propagating and halogen-free, meaning no toxic or corrosive gases are released in the event of a fire.

Technology Explained Simply
The PPE (Polyphenylenether) material offers high heat resistance and mechanical strength, which is important for use in electrical installations. The minimum pressure resistance is 750 N/5 cm, indicating the component’s ability to withstand mechanical loads such as pressure or impact. Classification according to VDE 0605 DIN EN 61386-21 and the standard DIN VDE V 0604-2-100 confirms suitability for electrical installation pipe systems. Halogen-free material is a key advantage, as it limits fire development and prevents the formation of hazardous gases.

Compatibility and Accessories
The push-fit elbow is specifically designed for the plastic straight pipe FPKu-EM-F-H0. Connection is achieved via the one-sided formed socket, which is inserted into the pipe. Compatibility is limited to the specified pipe system.

Installation and Mounting
Mounting is done by simply inserting the elbow end into the pipe. The socket ensures a secure connection. No additional tools or fastening elements are required. Installation follows standard procedures for electrical installation pipes, taking into account mechanical load capacity and fire behaviour.

Operational Advantages
The use of the SBSKu-EM-H0 32 provides a secure and durable connection within the electrical installation pipe system. Halogen-free material increases safety in the event of fire, as no toxic gases are produced. The high pressure resistance of 750 N/5 cm ensures a robust connection that remains intact even under mechanical stress. Its use in various environments, including outdoors, in screed, or in concrete, makes the component versatile.

Application Area
The push-fit elbow is intended for use in machines, prefabricated construction, screed, concrete, wood, soil, behind plaster, on plaster, and outdoors. Chemical resistance is conditional against ammonia (liquid and gaseous), chlorine (gaseous, dry), photographic developer, vinegar (white wine vinegar), uric acid (aqueous), seawater, nitric acid, hydrochloric acid, sulfuric acid, exhaust gases (containing hydrochloric and sulfuric acid), gasoline, beer, diesel fuel, methanol, milk, mineral oil, and plant and animal oils. The material is resistant to detergents.

Safety and Standards
The product was manufactured and tested according to harmonized standards DIN EN 61386-1 and DIN EN 61386-21. Safety-relevant tests were fully complied with, ensuring no additional risk arises from the product. Classification according to VDE 0605 DIN EN 61386-21 and the standard DIN VDE V 0604-2-100 confirms suitability for electrical installation pipe systems. The halogen-free and non-flame propagating properties enhance safety in the event of fire.

The item price shown refers to 25 pieces Fränkische Rohrwerke 23260032
Delivery form
Outer diameter32 mm
Inner diameter28 mm
Minimum quantity25
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityOther
Surface protectionUntreated
Quality of surface coatingUncoated
ModelPlug-in
ColourGrey
Angle of bow90 °
UV resistantNo
Surface polishedNo
Surface brushedNo
With sleeveJa
Two pieceNo
With inspection opening and coverNo
FlexibleNo


Product data sheet
Datasheet for Fränkische Rohrwerke 23260032, EAN: 4013960180534

Questions & answers

What is the delivery time of Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey ?

The article Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 23260032 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 23260032 Fränkische SBSKu-EM-H0 32 plastic coupling elbow grey is offered by us in a sales unit of 25 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
