Fränkische Rohrwerke Logo

Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black

Your rating:
Average rating
product review for Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black
( 4.4 / 5 ) 16 ratings
Fränkische Rohrwerke 22610020
This image may differ from the desired article.
Fränkische Rohrwerke 22610020Fränkische Rohrwerke 22610020Fränkische Rohrwerke 22610020
16,13 EUR 16,81 EUR
( 19,19 EUR incl. VAT )
≈ £13.50  |  ≈ $17.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 3 meters
In Stock: >100 meters
1x Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black
Datasheet:file_download Download
Lieske Part No.:471338
Mfg Part No: 22610020
UPC/EAN: 4013960312461
Weight:0.411 kg
Type:FPKu-ES-F-UV 20 schwarz
Graduated prices net
From piecesPrice per meters
1515,16 EUR
3014,19 EUR
7013,23 EUR
10012,26 EUR

Product information for Fränkische Rohrwerke 22610020:

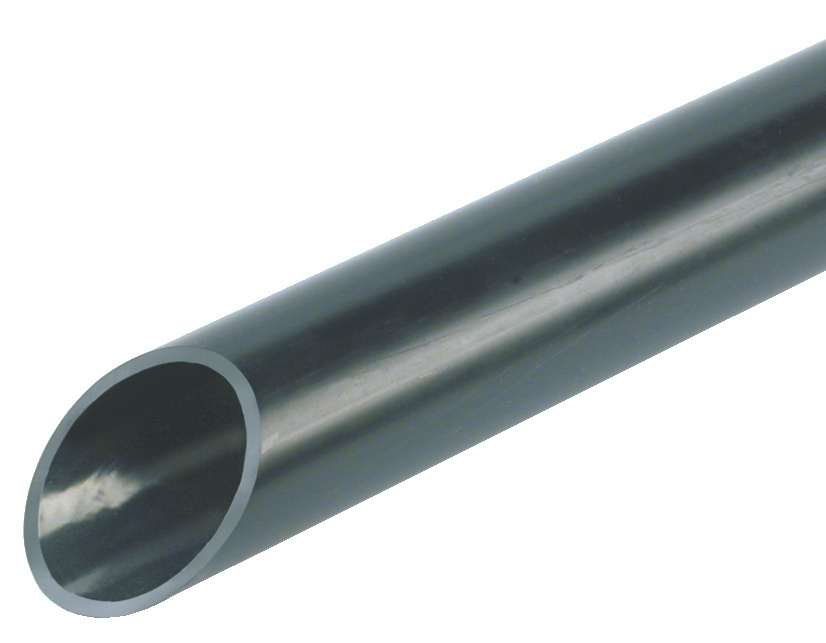

The FPKu-ES-F-UV 20 black from Fränkische Rohrwerke is a heavy-duty plastic conduit made of modified polyvinyl chloride (PVC), specifically designed for use in demanding environments. The conduit is finished in black (RAL 9005) and features a one-sided formed socket, enabling a secure connection between conduit sections. It is supplied in straight lengths of 3 metres and is suitable for surface and flush mounting, including outdoor installation, industrial facilities, and in screed. Installation on wood and in hollow walls is also possible, although installation in soil or concrete is not intended.

Applications
This conduit is designed for use in machine and plant engineering as well as in outdoor electrical installations. It is particularly suitable for outdoor applications where high mechanical loads and UV exposure occur. The UV stabilisation ensures a service life of up to 10 years under open sky conditions. Installation in screed is also intended, making it suitable for underfloor installations in indoor spaces. Installation on wood and in hollow walls extends its application range in building technology.

Functions and Equipment in Detail
The conduit features high pressure resistance, corresponding to heavy-duty pressure class 4 according to EN 61386-1, with a minimum load of 1250 N/5 cm. Impact resistance is in medium class 3 (750 N), providing sufficient resistance against mechanical stress. The bending behaviour is rigid, enabling stable installation and positioning. The material is non-flame propagating, improving fire behaviour characteristics. Corrosion resistance against acids and alkalis makes the conduit suitable for chemically demanding environments.

Technology Explained Simply
The conduit is made of modified PVC, specifically developed for high mechanical loads and long-term UV resistance. The UV stabilisation protects the material from discolouration and degradation due to sunlight exposure. The one-sided formed socket allows for easy and secure connection of conduit sections. The pressure resistance of class 4 (1250 N/5 cm) means the conduit remains stable even under high static loads, for example when installed in screed or industrial facilities. Impact resistance class 3 (750 N) protects against mechanical impacts such as shocks or vibrations.

Compatibility and Accessories
For use with the FPKu-ES-F-UV 20 black, the accessory E-Ku-E 20 black UV-resistant is available, serving as a plastic end cap. This end cap enables a clean and secure termination of the conduit, especially at ends where no further extension is required. Combining it with this accessory ensures a tight and aesthetically pleasing installation.

Installation and Mounting
The conduit can be mounted both in flush and surface applications. Installation outdoors, in industrial facilities, in screed, on wood, and in hollow walls is possible. Installation in soil or concrete is not intended. The rigid bending behaviour requires careful planning of the installation to correctly execute bends and connections. The one-sided formed socket simplifies mounting, as it allows a secure connection without additional fittings.

Operational Advantages
The high pressure and impact resistance ensure long service life and high reliability of the conduit. UV stabilisation for up to 10 years and corrosion resistance against acids and alkalis make it particularly suitable for outdoor use and in chemically demanding environments. The non-flame propagating property improves fire safety requirements. Use in machine and plant engineering as well as in outdoor electrical installations is supported by the robust material and construction properties. Installation in screed and on wood extends application possibilities in building technology.

Standards and Approvals
The product complies with standards DIN EN 61386-1 and DIN EN 61386-21, which apply to electrical installation conduit systems. Pressure resistance corresponds to heavy-duty class 4, and impact resistance to medium class 3. UV resistance is guaranteed for up to 10 years. The material is halogen-free and low smoke, reducing smoke development in case of fire. Electrical insulation is suitable for use in electrical installations.

Temperature Range and Chemical Resistance
The conduit is designed for temperatures from -25 °C to +60 °C. It is resistant to a wide range of chemicals, including hydrochloric acid, sulphuric acid, nitric acid, ammonia, petrol, diesel fuel, mineral oil, oils, detergents, seawater, methanol, propane, turpentine, benzene, beer, vinegar, fruit acids, antifreeze, fertiliser salts, uric acid, heating oil, petroleum, and milk. However, it is not resistant to chlorine (gaseous, dry) and exhaust gases containing hydrochloric or sulphuric acid.

The item price shown refers to 3 meters Fränkische Rohrwerke 22610020
Delivery form
Minimum quantity57
Pallet content3990
Base unit quantityMetre
Technical data
MaterialPolyvinyl chloride (PVC)
Bending strengthRigid
Pressure resistance class per EN 61386-1heavy (Class 4, 1250 N)
Impact resistance class per EN 61386-1medium (Class 3, 750 N)
Inner diameter16.6 mm
Outer diameter20 mm
ColourBlack
RAL-number9005
UV resistantJa
With sleeveJa
Flush-mounted installationJa
Surface mountingJa
Suitable for installation on woodJa
Suitable for hollow wall installationJa
Suitable for concrete installationNo
Machine and plant installationJa
Suitable for subsurface installation (screed))Ja
Outdoor installationJa
Suitable for underground installationNo
High conducting inner coatingNo


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Fränkische Rohrwerke 22610020, EAN: 4013960312461

Questions & answers

What is the delivery time of Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black ?

The article Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 22610020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 meters of Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black we can offer you a price of 15,16 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you




Fitting accessory for Fränkische Rohrwerke 22610020 Fränkische FPKu-ES-F-UV 20 heavy-duty rigid plastic conduit black

Fränkische Rohrwerke 25996020 Fränkische E-Ku-E 20 black UV-resistant plastic end cap 2599602 Fränkische Rohrwerke LogoFränkische Rohrwerke 25996020 Fränkische E-Ku-E 20 black UV-resistant plastic end cap 2599602 E-Ku-E is a plastic end cap for plugging in made of polyolefin, in black (RAL 9005), non-flame-spreading, halogen-free. This end cap is used as edge protection for all rod and metal pipes. UV-stable ...
