Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32

Your rating:
Average rating
product review for Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32
( 4.6 / 5 ) 9 ratings

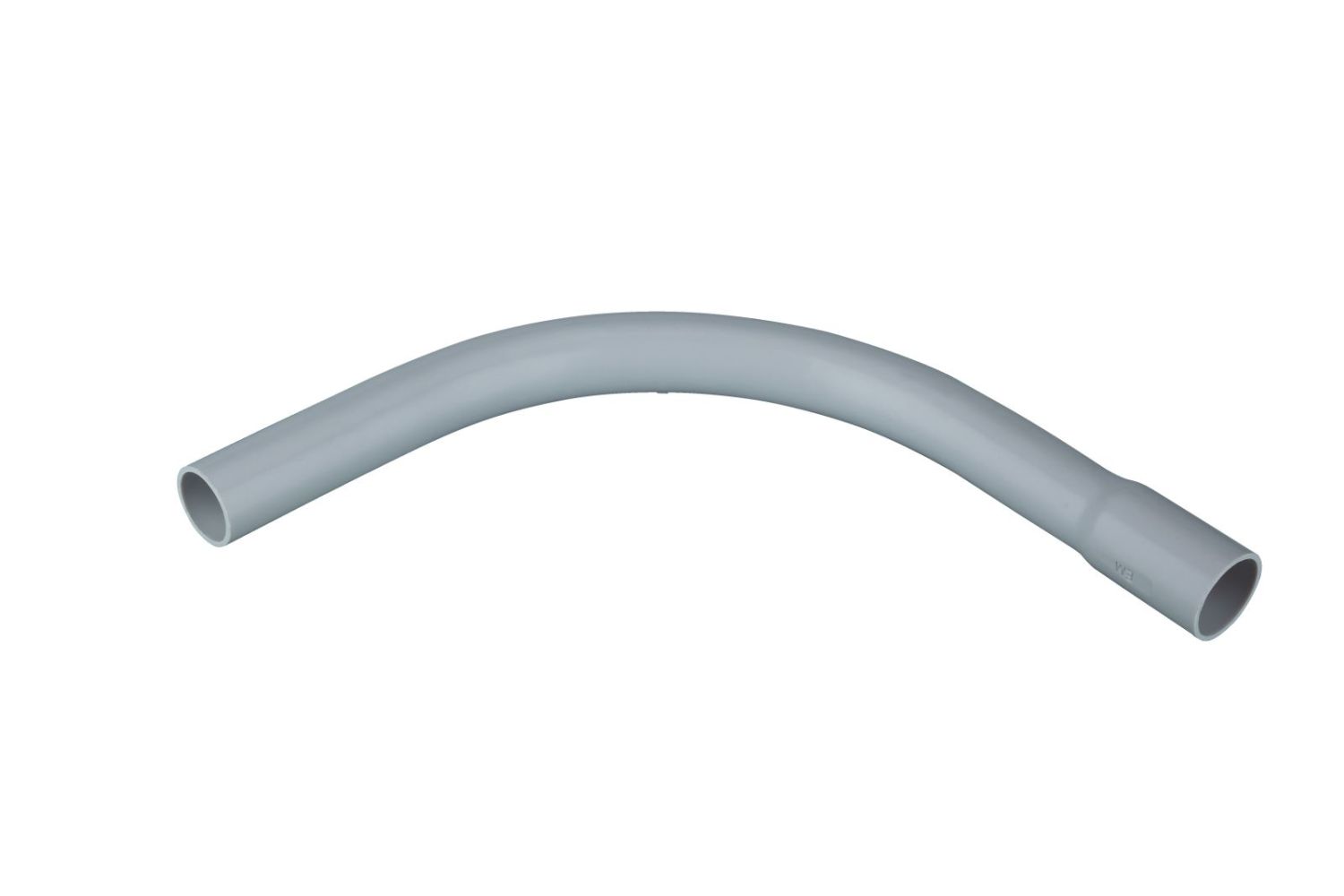

Fränkische Rohrwerke 22260032
This image may differ from the desired article.
Fränkische Rohrwerke 22260032Fränkische Rohrwerke 22260032Fränkische Rohrwerke 22260032
9,27 EUR 9,66 EUR
( 11,03 EUR incl. VAT )
≈ £7.76  |  ≈ $10.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32
Datasheet:file_download Download
Lieske Part No.:438402
Mfg Part No: 22260032
UPC/EAN: 4013960179972
Weight:0.123 kg
Type:SBSKu-EM 32

Product information for Fränkische Rohrwerke 22260032:

The SBSKu-EM 32 from Fränkische Rohrwerke is a plastic socket elbow made of polyvinyl chloride (PVC-U), specifically designed for use in electrical installation pipe systems. It features a one-sided formed socket and is finished in grey (RAL 7035). The product is non-flame propagating and is intended for connecting plastic straight pipes of types FPKu-EM-F and isofix-EL-F. The socket elbow design allows for easy installation without additional connection elements, with the socket ensuring a secure and tight connection. The elbow has a 90° angle and is designed for medium pressure resistance, making it suitable for typical installation scenarios in electrical contracting.

Applications
The SBSKu-EM 32 is used in various areas of electrical installation, particularly in machine construction, prefabricated construction, screed, concrete, wood, soil, under plaster, on plaster, and outdoors. Conformity with DIN EN 61386-1 and DIN EN 61386-21 ensures compliance with European requirements for electrical installation pipe systems. The classification 33411 according to VDE 0605 and the minimum pressure resistance of 750 N/5 cm confirm the mechanical load capacity of the product. Outdoor use is possible, although the product is not UV-resistant, which may lead to material aging under prolonged direct sunlight exposure.

Functions and Equipment in Detail
The socket elbow is made of PVC-U, a robust and chemically resistant plastic known for its high mechanical strength and electrical insulation properties. The surface is untreated and uncoated, facilitating processing and installation. The one-sided formed socket enables a secure connection with the corresponding straight pipes. The standard grey colour (RAL 7035) provides good visibility in the installation area. The product is rigid, not flexible, ensuring precise positioning and connection.

Technology Explained Simply
The construction of the SBSKu-EM 32 is based on a 90° elbow that allows for a change in direction in the pipe run. The socket serves as a push-fit connection, creating a secure joint by inserting the pipe into the socket. The minimum pressure resistance of 750 N/5 cm indicates that the product can withstand a certain mechanical load, which is important for use in construction and industrial environments. The DIN EN 61386-21 standard sets specific requirements for rigid electrical installation pipe systems, which are met here. The classification 33411 according to VDE 0605 refers to the mechanical and electrical properties of the product.

Compatibility and Accessories
The SBSKu-EM 32 is specifically designed for use with plastic straight pipes FPKu-EM-F and isofix-EL-F. These pipes are also made of PVC-U and form a compatible system. The connection is made via the one-sided formed socket, ensuring a secure and tight joint.

Installation and Mounting
Mounting is done by simply inserting the straight pipe into the socket of the elbow. The rigid construction requires precise alignment to ensure a secure connection. No tools are required, as the connection is made via the push-fit principle. Installation takes place in typical electrical installation environments, with consideration for mechanical load capacity and compliance with standards.

Operational Advantages
The SBSKu-EM 32 provides a reliable and mechanically stable connection in electrical installation pipe systems. The medium pressure resistance and compliance with DIN EN 61386-21 ensure safe and durable use. Use in various environments, including outdoors, expands application possibilities. The simple installation without additional tools or connection elements reduces installation effort. The chemical resistance to various substances such as mineral oil, oils, detergents, and vinegar (white wine vinegar) makes the product suitable for a wide range of application scenarios.

Delivery form
Outer diameter32 mm
Inner diameter29 mm
Minimum quantity50
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Surface protectionUntreated
Quality of surface coatingUncoated
ModelPlug-in
ColourGrey
Angle of bow90 °
UV resistantNo
Surface polishedNo
Surface brushedNo
With sleeveJa
Two pieceNo
With inspection opening and coverNo
FlexibleNo


Product data sheet
Datasheet for Fränkische Rohrwerke 22260032, EAN: 4013960179972

Questions & answers

What is the delivery time of Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32?

The article Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 22260032 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32 always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 22260032 Plastic elbow for rigid plastic pipes comparable to Fränkische SBSKu-EM 32 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
