Fränkische Rohrwerke 22250040 Fränkische SMSKu-E 40 plastic push-in coupling

Your rating:
Average rating
product review for Fränkische Rohrwerke 22250040 Fränkische SMSKu-E 40 plastic push-in coupling
( 4.8 / 5 ) 16 ratings

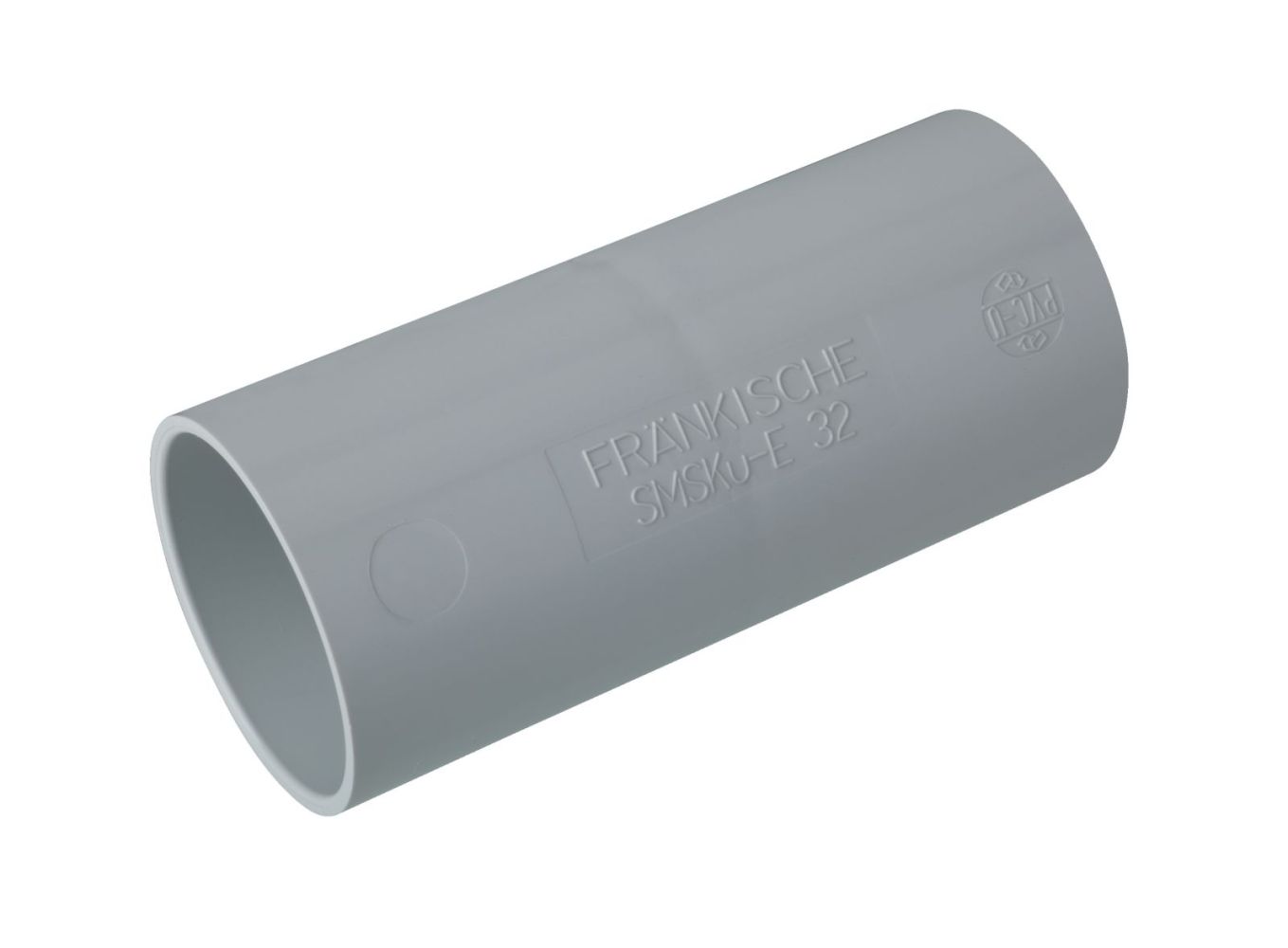

Fränkische Rohrwerke 22250040
This image may differ from the desired article.
Fränkische Rohrwerke 22250040Fränkische Rohrwerke 22250040Fränkische Rohrwerke 22250040
4,74 EUR 4,94 EUR
( 5,64 EUR incl. VAT )
≈ £3.97  |  ≈ $5.21
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Fränkische Rohrwerke 22250040 Fränkische SMSKu-E 40 plastic push-in coupling
Datasheet:file_download Download
Lieske Part No.:294091
Mfg Part No: 22250040
UPC/EAN: 4013960179910
Weight:0.123 kg
Type:SMSKu-E 40

Product information for Fränkische Rohrwerke 22250040:

The Fränkische SMSKu-E 40 is a plastic push-fit coupling made of polyvinyl chloride (PVC-U) in the colour grey (RAL 7035), specifically developed for connecting plastic conduit pipes in the electrical installation sector. It serves as a connecting element for pipe types isofix-EL-F, FPKu-EM-F and FPKu-ES-F and is manufactured in accordance with VDE 0605 and DIN EN 61386-21. The push-fit coupling is non-flame propagating and therefore suitable for use in electrical installations where preventing flame spread is an important safety requirement.

Applications
The SMSKu-E 40 is used in the field of electrical installations, particularly in systems installed outdoors, in the ground, in screed, in concrete, or under plaster. Application areas also include use in machinery, prefabricated construction, and on wooden or plaster surfaces. The coupling is not UV-resistant, meaning it is not suitable for permanent, unprotected outdoor applications without additional protection. Use in hot asphalt areas is also explicitly mentioned, indicating high thermal resistance within specified limits.

Functions and Equipment in Detail
The push-fit coupling is designed as a single, two-part element that operates without additional seals or threads. The connection is made by push-fit, with the coupling having an outer diameter of 44 mm and an inner diameter of 40 mm. The surface is untreated and uncoated, meaning no additional protective layers such as polishing or brushing treatments are present. The coupling has no locking function, no inspection opening, and no external thread, restricting its function to pure push-fit connection.

Technology Explained Simply
The use of PVC-U as the material ensures high mechanical stability and chemical resistance against various environmental media. The coupling is halogen-free and produces no or only minimal smoke when burned, increasing safety in enclosed spaces. The DIN EN 61386-21 standard sets specific requirements for rigid electrical installation conduit systems, which the SMSKu-E 40 meets. The designation as non-flame propagating means the material does not continue to burn independently when in contact with open flame, which is an important criterion for use in electrical installations.

Compatibility and Accessories
The push-fit coupling is exclusively intended for the specified plastic conduit pipes isofix-EL-F, FPKu-EM-F and FPKu-ES-F. The connection is made by push-fit without additional fastening elements. The coupling is not split, eccentric, or equipped with internal threads, restricting its use to the specified pipe types.

Installation and Mounting
Mounting is done by simply pushing the pipes into the coupling. The connection does not have a locking function, meaning the pipes are fixed by the push-fit connection without requiring additional fastening elements. The coupling is not intended for use in areas with high mechanical loads or intense UV radiation, as it is not UV-resistant. Installation takes place in the specified application areas, taking into account chemical resistance against various media such as hydrochloric acid, sulfuric acid, mineral oil, or detergents.

Operational Advantages
The use of the SMSKu-E 40 enables quick and easy installation without additional tools or fastening elements. Conformity with DIN EN 61386-21 and VDE 0605 ensures the safety and reliability of the installation. The non-flame propagating property reduces fire risk in electrical systems. Chemical resistance against a wide range of environmental media increases the lifespan of the installation and reduces maintenance requirements. The coupling is available in a base unit of 25 pieces, with a pallet content of 1200 pieces, suitable for larger projects.

Delivery form
Outer diameter44 mm
Inner diameter40 mm
Minimum quantity25
Pallet content1200
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Surface protectionUntreated
Quality of surface coatingUncoated
ModelPlug-in
ColourGrey
Seal materialNo sealing
UV resistantNo
Surface polishedNo
Surface brushedNo
With lock functionNo
Two pieceNo
With inspection opening and coverNo
With outer threadNo
With inner threadNo
SeparableNo
EccentricNo


Product data sheet
Datasheet for Fränkische Rohrwerke 22250040, EAN: 4013960179910
