Fränkische Rohrwerke 20550025 Fränkische SMS-E-V 25 verzinkt Zn-Ni steel pipe coupling

Your rating:
Average rating
product review for Fränkische Rohrwerke 20550025 Fränkische SMS-E-V 25 verzinkt Zn-Ni steel pipe coupling
( 4.7 / 5 ) 20 ratings

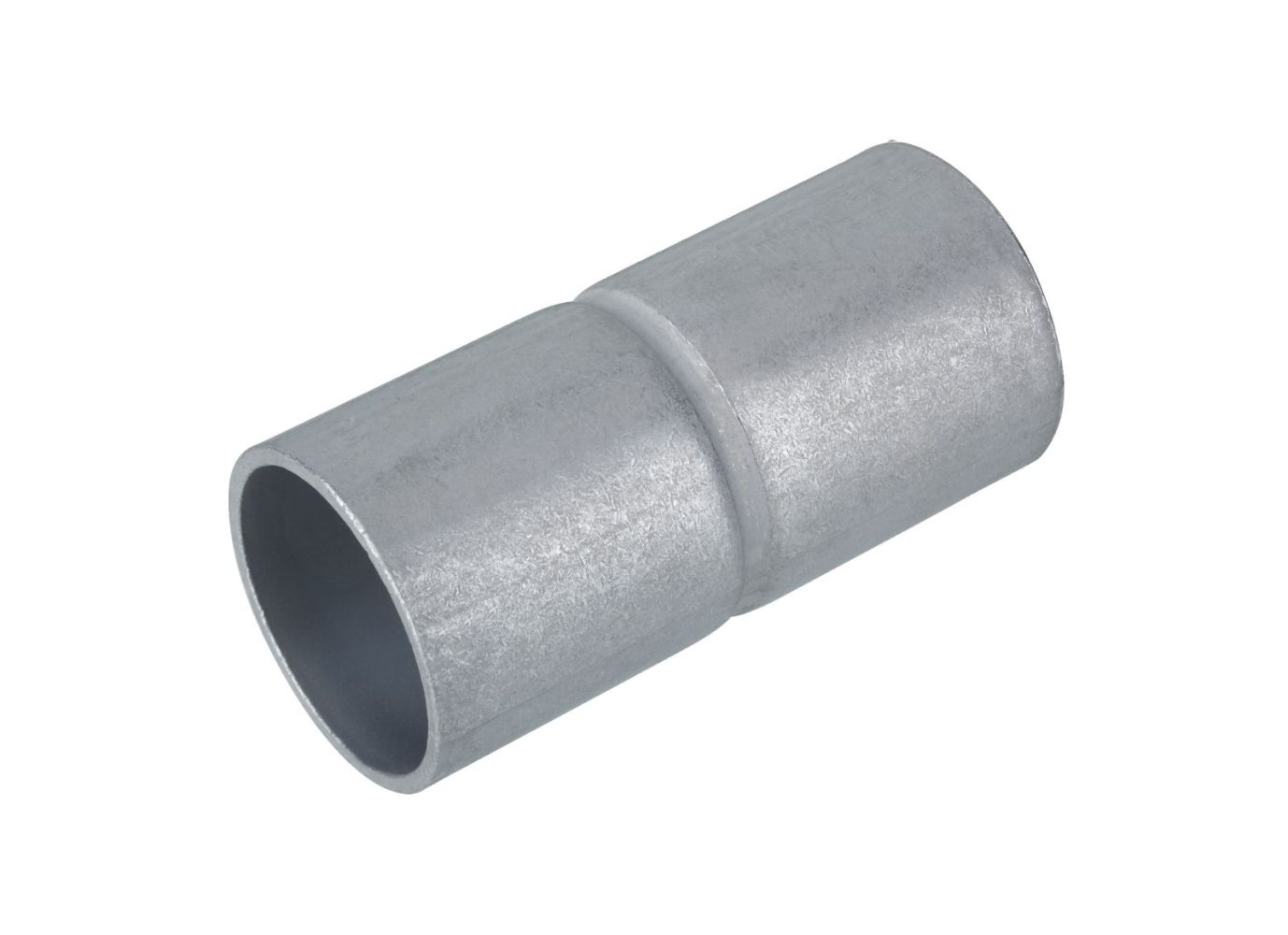

Fränkische Rohrwerke 20550025
This image may differ from the desired article.
Fränkische Rohrwerke 20550025Fränkische Rohrwerke 20550025Fränkische Rohrwerke 20550025
10,05 EUR 10,47 EUR
( 11,96 EUR incl. VAT )
≈ £8.41  |  ≈ $11.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Fränkische Rohrwerke 20550025 Fränkische SMS-E-V 25 verzinkt Zn-Ni steel pipe coupling
Datasheet:file_download Download
Lieske Part No.:310218
Mfg Part No: 20550025
UPC/EAN: 4013960166668
Weight:0.123 kg
Type:SMS-E-V 25 verzinkt Zn-Ni
Graduated prices net
From piecesPrice per pieces
158,92 EUR
307,79 EUR
706,66 EUR
1005,53 EUR

Product information for Fränkische Rohrwerke 20550025:

The Fränkische SMS-E-V 25 verzinkt Zn-Ni is a steel pipe coupling specifically designed for connecting galvanized steel pipes of the Staro Steck-ES-V type. The product is made of rolled mild steel and is galvanically coated with a zinc-nickel alloy, ensuring high corrosion resistance and UV resistance. The coupling is designed for use in electrical installation pipe systems employed in cable installations with fire resistance (E30, E60, E90). System testing was carried out in accordance with VDE 0605 and DIN EN 61386-21, confirming compliance with relevant standards for rigid electrical installation pipe systems.

Applications

The coupling is suitable for a wide range of applications, including installation in screed, precast construction, outdoors, in concrete, on wood, in soil, under plaster, and on plaster. The UV resistance makes it suitable for outdoor applications where exposure to sunlight and weather conditions is present. The material properties ensure high mechanical stability and long-term durability under these conditions.

Functions and Features in Detail

The SMS-E-V 25 is designed as a push-in coupling, enabling quick and tool-free installation. The connection is made by simply inserting the pipes into the coupling, with the push-in connection ensuring a secure and tight joint. The surface is galvanically/electrolytically zinc-coated, creating an even and durable protective layer. The zinc-nickel coating enhances corrosion resistance against moisture, acids, alkalis, and solvents, although resistance to strong acids and alkalis is considered conditional. The coupling is not equipped with seals, internal threads, external threads, inspection openings, or locking functions.

Technology Explained Simply

The use of rolled mild steel ensures high strength and dimensional stability of the coupling. The galvanic zinc-nickel coating forms a thin but durable protective layer that prevents oxidation of the base material. UV resistance is particularly important for outdoor installations, where materials are exposed to long-term sunlight. The DIN EN 61386-21 standard specifies the special requirements for rigid electrical installation pipe systems, ensuring the safety and reliability of installations.

Compatibility and Accessories

The coupling is specifically designed for connecting with the galvanized steel pipe Staro Steck-ES-V. The connection is made via a push-in joint, enabling quick and secure installation without additional tools. The coupling is not designed as a two-piece, split, or eccentric unit. Use in systems with fire resistance (E30, E60, E90) requires adherence to the entire system standard, with the SMS-E-V 25 being a tested component integrated into the system.

Installation and Mounting

Installation is performed by simply inserting the steel pipes into the push-in coupling. The push-in connection ensures a secure and tight joint without additional fastening elements. The coupling is not equipped with threads or other fastening elements, making installation quick and easy. Use in various environments such as screed, concrete, or outdoors requires no additional measures, as the material properties and coating provide the necessary durability.

Operational Advantages

The galvanic zinc-nickel coating provides high corrosion resistance, extending the service life of the installation. UV resistance allows outdoor use without premature material degradation. The push-in connection simplifies installation and reduces mounting time. Compliance with DIN EN 61386-21 and system testing according to VDE 0605 ensure the safety and reliability of the installation, particularly in applications requiring fire resistance.

Delivery form
Outer diameter28 mm
Inner diameter25 mm
Minimum quantity50
Base unit quantityPiece
Technical data
MaterialMetal
Material qualitySteel
Surface protectionGalvanic/electrolytic zinc plated
Quality of surface coatingGalvanic zinc-nickel coated
ModelPlug-in
ColourZinc
Seal materialNo sealing
UV resistantJa
Surface polishedNo
Surface brushedNo
With lock functionNo
Two pieceNo
With inspection opening and coverNo
With outer threadNo
With inner threadNo
SeparableNo
EccentricNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20550025, EAN: 4013960166668
