Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow

Your rating:
Average rating
product review for Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow
( 4.6 / 5 ) 12 ratings

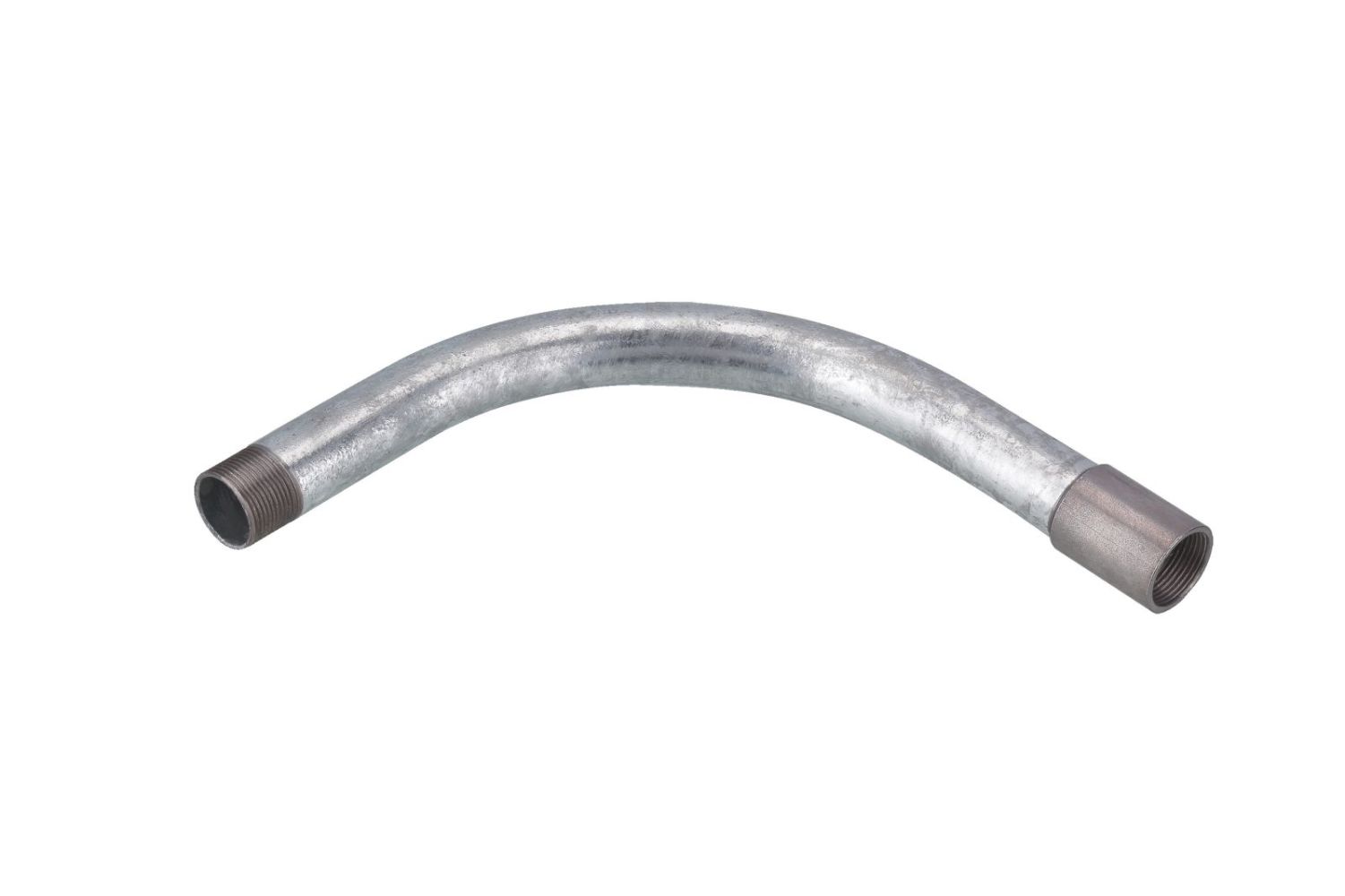

Fränkische Rohrwerke 20460020
This image may differ from the desired article.
Fränkische Rohrwerke 20460020Fränkische Rohrwerke 20460020Fränkische Rohrwerke 20460020
36,61 EUR 38,15 EUR
( 43,57 EUR incl. VAT )
≈ £30.64  |  ≈ $40.23
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >5 pieces
1x Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow
Datasheet:file_download Download
Lieske Part No.:370153
Mfg Part No: 20460020
UPC/EAN: 4013960166309
Weight:0.18 kg
Type:SB-E-V 20 feuerverzinkt
Graduated prices net
From piecesPrice per pieces
1033,86 EUR
2531,12 EUR
5028,37 EUR
7525,63 EUR

Product information for Fränkische Rohrwerke 20460020:

The SB-E-V 20 galvanised from Fränkische Rohrwerke is a steel pipe threaded elbow made of rolled steel, specifically developed for connecting steel pipes of the Staro threaded-ES-V type. The product is coated with a hot-dip galvanised zinc layer in accordance with EN ISO 1461, ensuring high corrosion resistance and durability. The elbow features a 90-degree angle profile and is threaded on both ends, with one side equipped with a screwed coupling (SM-E-V). This design enables a secure and long-lasting connection in electrical installation applications.

Applications
The SB-E-V 20 galvanised is suitable for use in various installation scenarios, including machine construction, hot asphalt, screed installation, prefabricated construction, outdoor use, in concrete, on wood, in soil, under plaster, and on plaster. The UV resistance of the zinc coating also makes the product suitable for outdoor applications where it is exposed to long-term sunlight. The high pressure resistance and temperature resistance ensure reliable performance even under demanding conditions.

Functions and Equipment in Detail
The threaded elbow has an outer diameter of 20 mm and an inner diameter of 17 mm. The coupling enables a secure connection with other pipe sections and ensures stable mechanical anchoring. The surface is not polished or brushed, but shows the typical structure of hot-dip galvanised steel. The design as a threaded elbow with coupling ensures easy installation and a secure connection to other components of the pipe system.

Technology Explained Simply
The hot-dip galvanised coating protects the steel pipe from corrosion and extends the product's service life. The standard EN ISO 1461 specifies requirements for the zinc coating, ensuring a uniform and dense protective layer. The minimum pressure resistance is 4000 N/5 cm, highlighting the high mechanical load capacity of the elbow. The classification according to VDE 0605 DIN EN 61386-21 (55571) confirms compliance with European standards for electrical installation pipe systems. The UV resistance ensures that the product retains its properties even under long-term sunlight exposure.

Compatibility and Accessories
The SB-E-V 20 galvanised is specifically designed for connecting with the Staro threaded-ES-V steel pipe. The coupling (SM-E-V) is an integral part of the elbow and enables connection with additional pipe sections. The standards EN 61386-1 and EN 61386-21 apply to the entire pipe system, ensuring consistent quality and safety.

Installation and Mounting
Installation is carried out by screwing the threads at the ends of the elbow to the corresponding pipe sections. The coupling ensures a secure connection and prevents loosening under load. Installation is possible both indoors and outdoors, taking into account mechanical and chemical stresses. Use in soil, concrete, or screed requires careful planning of the installation to ensure functionality and safety.

Operational Advantages
The high pressure resistance and temperature resistance of the SB-E-V 20 galvanised ensure reliable performance even under extreme conditions. The UV resistance extends the product's service life in outdoor applications. Use in prefabricated construction or machine construction enables flexible and expandable electrical installations. Compliance with standards DIN EN 61386-1 and DIN EN 61386-21 ensures safety and compatibility with other components of the pipe system.

Delivery form
Outer diameter20 mm
Inner diameter17 mm
Minimum quantity25
Base unit quantityPiece
Technical data
MaterialMetal
Material qualitySteel
Surface protectionHot dip galvanized
Quality of surface coatingOther
ModelThread
ColourZinc
Angle of bow90 °
UV resistantJa
Surface polishedNo
Surface brushedNo
With sleeveJa
Two pieceNo
With inspection opening and coverNo
FlexibleNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20460020, EAN: 4013960166309

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow ?

The article Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20460020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Fränkische Rohrwerke 20460020 Fränkische SB-E-V 20 feuerverzinkt steel pipe threaded elbow we can offer you a price of 33,86 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
