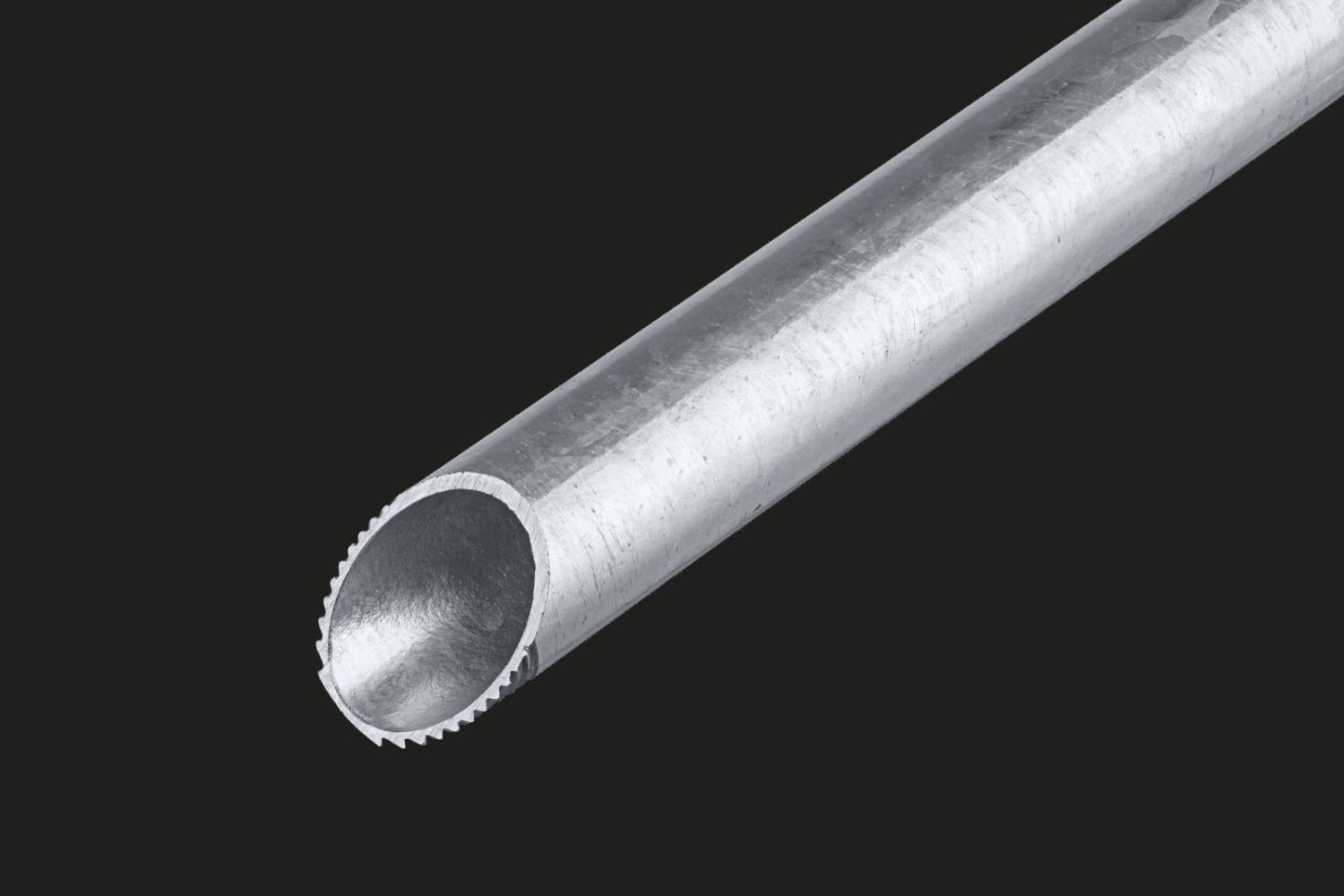

Fränkische Rohrwerke 20410050 Stapa threaded pipe M50 3 m with threaded coupling galvanized
|
224,81 EUR 234,27 EUR |
|||||||||||
|
( 267,52 EUR incl. VAT ) ≈ £188.17 | ≈ $247.07 plus delivery charges: 100,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Sales unit: 3 meters | |||||||||||
| In Stock: >50 meters | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 196448 | ||||||||||
| Mfg Part No: | 20410050 | ||||||||||
| UPC/EAN: | 4013960166200 | ||||||||||
| Weight: | 5.91 kg | ||||||||||
| Type: | Staro Gewinde-ES-V 50 feuerverzinkt | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Fränkische Rohrwerke 20410050:
Applications
The Staro threaded-ES-V 50 is particularly suitable for use in outdoor installations where high mechanical stress and environmental influences such as moisture or temperature fluctuations occur. It is frequently used in industrial electrical installations, for cable routing in buildings with increased safety requirements, and in systems requiring functional integrity (E30, E60, E90). The 'system tested' designation means that the product, when used in conjunction with other system components, meets the required safety standards.
Functions and Equipment in Detail
The pipe features very high crush resistance, measured at a minimum of 4000 Newton per 5 cm. This ensures high mechanical stability, which is advantageous when routing cables under pressure or under mechanical stress. The temperature resistance allows use in environments with elevated temperatures without impairing mechanical properties. The zinc coating according to EN ISO 1461 provides long-term protection against corrosion, extending the pipe's service life and increasing maintenance-free operation.
Technology Explained Simply
The steel pipe is made of rolled mild steel, ensuring high strength and dimensional stability. The hot-dip galvanized surface protects the material against oxidation and moisture, making it suitable for use in damp or wet environments. The double-threaded connection enables a secure and tight connection with other pipe sections, while the screwed-on coupling (SM-E-V) provides additional connection security. Classification according to VDE 0605 DIN EN 61386-21 (55571) confirms suitability for use in electrical installations in accordance with applicable standards.
Compatibility and Accessories
The Staro threaded-ES-V 50 can be combined with compatible accessories such as the Fränkische E-Ku-E 50 plastic end cap grey (article number 25995050) to cover and protect the pipe ends. For bending applications, the Fränkische SB-E-V 50 hot-dip galvanized steel pipe threaded elbow (article number 20460050) is suitable, enabling secure and stable bending of the pipe. These accessories are specifically designed for use with the Staro threaded-ES-V 50 and ensure a compatible and safe installation.
Installation and Mounting
Mounting is done by screwing the threads on both ends with appropriate fittings or other pipes. The screwed-on coupling (SM-E-V) facilitates the connection and ensures a firm joint. Outdoor installation requires special care in securing and routing to adequately address mechanical loads and environmental influences. The pipe is supplied in bar lengths of 3 meters, with connections between individual bars made via the threads.
Operational Advantages
The Staro threaded-ES-V 50 offers high mechanical stability, which remains intact even under extreme conditions. The hot-dip galvanized surface provides long-term corrosion protection, increasing maintenance-free operation and extending the pipe's service life. Suitability for functional integrity (E30, E60, E90) makes it a reliable component in safety-critical systems. Compatibility with specific accessories enables flexible and secure installation in various application scenarios.
Protection Rating
The pipe is designed for outdoor use, with the hot-dip galvanized surface providing effective protection against moisture and corrosion. The mechanical stability and high crush resistance make it suitable for applications involving high loads. The 'system tested' designation ensures compliance with applicable standards for electrical installations.
Corrosion Protection
The zinc coating according to EN ISO 1461 provides long-term protection against oxidation and moisture, extending the pipe's service life. This is particularly important for outdoor installations or in damp environments, where the risk of corrosion is increased.
Functional Integrity
The product is suitable for cable routing with functional integrity (E30, E60, E90), meaning it can be used in systems that must continue to function even in the event of a fire. The system test confirms suitability for this application.
Minimum Crush Resistance
The minimum crush resistance is 4000 Newton per 5 cm, ensuring high mechanical stability and resistance to external loads. This is critical for applications where the pipe is subjected to pressure or mechanical stress.
Classification
Classification according to VDE 0605 DIN EN 61386-21 (55571) confirms the product's suitability for use in electrical installations in accordance with applicable standards. This classification is a quality indicator that underscores the product's reliability and safety.
The item price shown refers to 3 meters Fränkische Rohrwerke 20410050
| General | |
| Material | rolled mild steel |
| Surface coating | Hot dip galvanized |
| Zinc coating | according to EN ISO 1461 |
| Thread | Ambidextrous |
| Sleeve | single-sided screwed (SM-E-V) |
| Minimum pressure resistance | 4000 N/5cm |
| Classification | VDE 0605 DIN EN 61386-21 55571 |
| Application range | Outdoor installation, extreme mechanical requirements, rigid connections |
| Circuit integrity | E30, E60, E90 |
| System test | |
| Delivery form | |
| Minimum quantity | 15 |
| Pallet content | 495 |
| Base unit quantity | Metre |
| Technical data | |
| Material | Steel |
| Material quality | Steel (mild steel rolled) |
| Surface protection | Hot dip galvanized |
| Quality of surface coating | Other |
| Model | Rigid |
| Connection 1 | Inner thread metric |
| Connection 2 | Outer thread metric |
| Colour | Zinc |
| Pressure resistance class per EN 61386-1 | very heavy (Class 5, 4000 N) |
| Inner diameter | 46.6 mm |
| Outer diameter | 50 mm |
| Surface polished | |
| Surface brushed | |
| Flush-mounted installation | |
| Surface mounting | |
| Suitable for concrete installation | |
| Machine and plant installation | |
| Suitable for subsurface installation (bitumen, hot asphalt) | |
| Suitable for subsurface installation (screed)) | |
| Outdoor installation | |
| Installation on wood | |
| Suitable for hollow wall installation | |
| Suitable for underground installation | |
