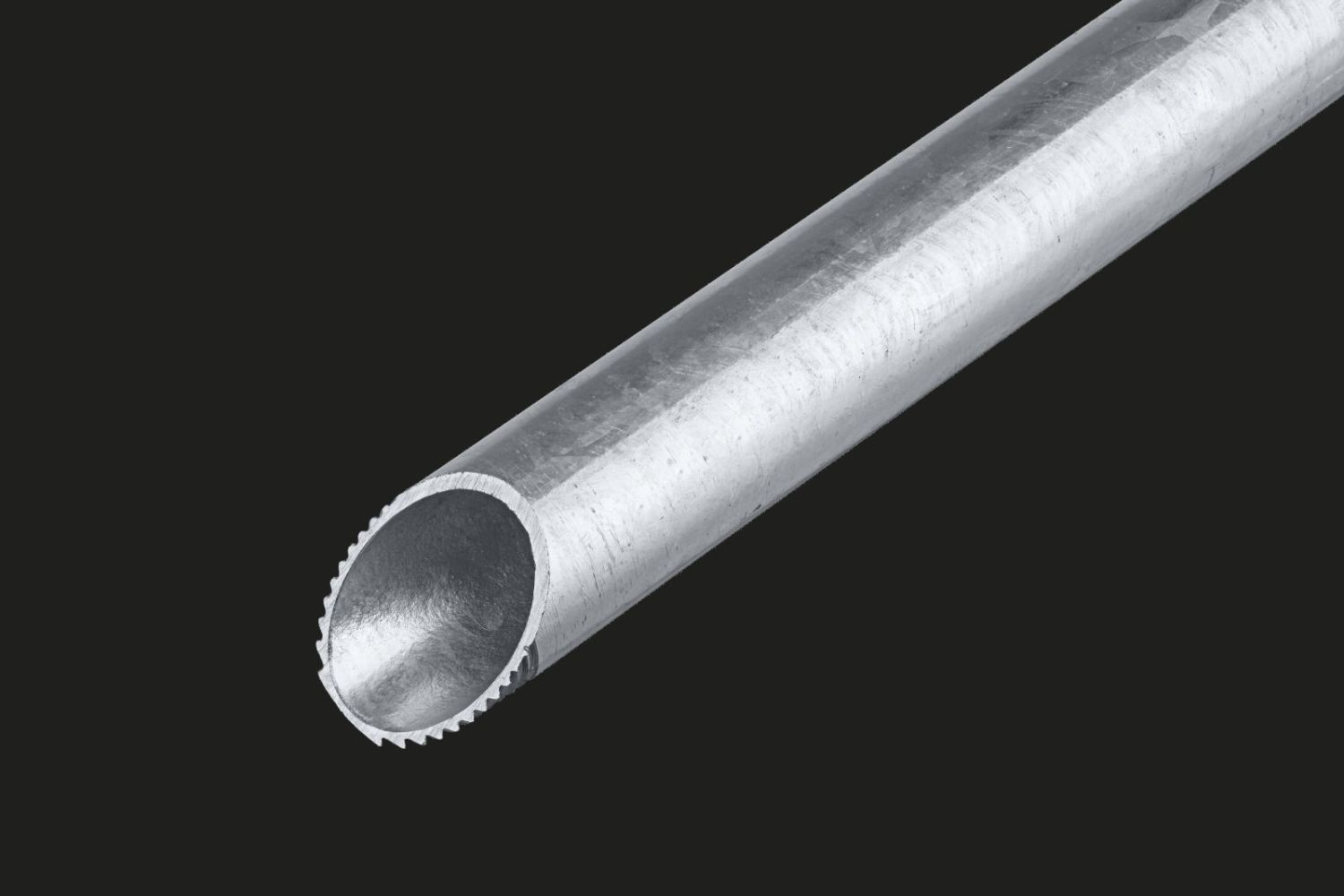

Fränkische Rohrwerke 20410016 Stapa threaded pipe M16 3 m with threaded coupling galvanized

Your rating:
Average rating
product review for Fränkische Rohrwerke 20410016 Stapa threaded pipe M16 3 m with threaded coupling galvanized
( 4.6 / 5 ) 13 ratings
Fränkische Rohrwerke 20410016
This image may differ from the desired article.
Fränkische Rohrwerke 20410016Fränkische Rohrwerke 20410016Fränkische Rohrwerke 20410016Fränkische Rohrwerke 20410016
74,95 EUR 78,11 EUR
( 89,19 EUR incl. VAT )
≈ £62.73  |  ≈ $82.37
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 3 meters
In Stock: >25 meters
1x Fränkische Rohrwerke 20410016 Stapa threaded pipe M16 3 m with threaded coupling galvanized
Datasheet:file_download Download
Lieske Part No.:402988
Mfg Part No: 20410016
UPC/EAN: 4013960166163
Weight:1.26 kg
Type:Staro Gewinde-ES-V 16 feuerverzinkt
Graduated prices net
From piecesPrice per meters
665,96 EUR
1256,96 EUR
2447,97 EUR
3638,97 EUR

Product information for Fränkische Rohrwerke 20410016:

The Fränkische Rohrwerke Staro threaded-ES-V 16 hot-dip galvanised is a rigid steel pipe made of rolled mild steel, featuring metric threading on both ends and a single-sided screwed coupling (SM-E-V). It is supplied in bar lengths of 3 metres and is designed for installations subject to high mechanical loads as well as for outdoor use. The pipe features a hot-dip galvanised surface protection in accordance with EN ISO 1461, providing effective corrosion protection and extending service life in outdoor or damp environments. The threaded design enables a secure, permanent connection that remains stable under static and dynamic loads.

Applications

The Staro threaded-ES-V 16 is suitable for a wide range of installation scenarios, including recessed and surface mounting, installation in concrete, screed, under floor (bitumen, hot asphalt), in hollow walls, and in the ground. It is also designed for mounting on wooden structures. Notably, it is suitable for outdoor installations, where environmental conditions such as moisture, temperature fluctuations, and mechanical stress impose higher demands on the material. Its suitability for systems with fire integrity (E30/E60/E90) has been tested, enabling use in fire protection systems.

Functions and Equipment in Detail

The pipe features very high pressure resistance, corresponding to pressure resistance class 5 (very heavy) according to EN 61386-1, with a minimum load of 4000 N over a length of 5 cm. This strength ensures the pipe remains undamaged under high external loads, such as when installed in concrete or during mechanical impacts in construction. The surface is hot-dip galvanised, providing a uniform and durable protective layer against corrosion. The zinc coating has a typical metallic-grey appearance, giving the pipe a robust look.

Technology Explained Simply

The base material is steel (rolled mild steel), which achieves high strength and dimensional stability through the rolling process. The hot-dip galvanised surface protects the steel pipe against oxidation and corrosion, especially in damp or aggressive environments. The double-threaded design enables a secure and tight connection with other pipe sections or fittings. The single-sided screwed coupling (SM-E-V) allows for extension or connection with other pipe sections, enabling a flexible and stable installation system. The internal diameter is 13.1 mm, the external diameter 16 mm, ensuring compatibility with standard installation components.

Compatibility and Accessories

The Staro threaded-ES-V 16 can be combined with compatible accessories such as the Fränkische SB-E-V 16 hot-dip galvanised steel pipe threaded elbow (article number 20460016) to achieve directional changes in the conduit system. Additionally, the Fränkische E-Ku-E 16 plastic end cap grey (article number 25995016) can be used to cover open pipe ends and protect against contamination. These accessories complement the system and support proper and durable installation.

Installation and Mounting

Installation is carried out depending on the application scenario, either recessed or surface-mounted, in concrete, screed, hollow walls, or in the ground. Outdoor installation is also possible, with the hot-dip galvanised surface ensuring weather resistance. Installation on wood is also provided for, with the mechanical strength of the pipe enabling anchoring in wooden structures. The double threading facilitates mounting and connection with other components.

Operational Advantages

The high pressure resistance and hot-dip galvanised protection ensure long service life and low maintenance. Suitability for fire integrity systems (E30/E60/E90) makes the pipe a reliable choice for fire protection installations. Its universal applicability in various installation scenarios – from indoor to outdoor, from concrete to wood mounting – increases flexibility in planning and executing electrical installations. The rigid construction ensures stable and durable cable routing, even under high loads.

The item price shown refers to 3 meters Fränkische Rohrwerke 20410016
Delivery form
Minimum quantity30
Pallet content1800
Base unit quantityMetre
Technical data
MaterialSteel
Material qualitySteel (mild steel rolled)
Surface protectionHot dip galvanized
Quality of surface coatingOther
ModelRigid
Connection 1Inner thread metric
Connection 2Outer thread metric
ColourZinc
Pressure resistance class per EN 61386-1very heavy (Class 5, 4000 N)
Inner diameter13.1 mm
Outer diameter16 mm
Surface polishedNo
Surface brushedNo
Flush-mounted installationJa
Surface mountingJa
Suitable for concrete installationJa
Machine and plant installationJa
Suitable for subsurface installation (bitumen, hot asphalt)Ja
Suitable for subsurface installation (screed))Ja
Outdoor installationJa
Installation on woodJa
Suitable for hollow wall installationJa
Suitable for underground installationJa
