Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black

Your rating:
Average rating
product review for Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black
( 4.5 / 5 ) 15 ratings

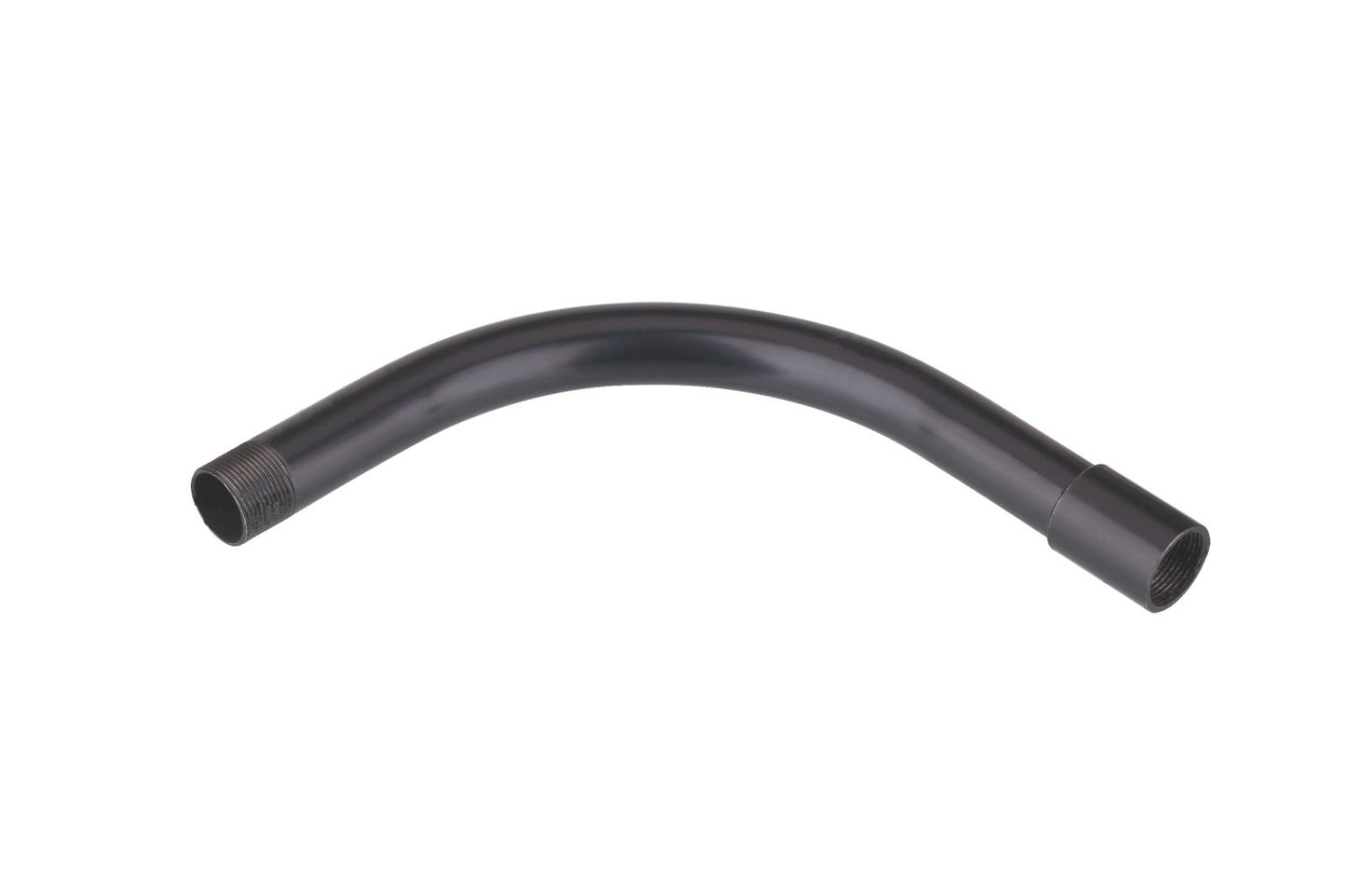

Fränkische Rohrwerke 20260020
This image may differ from the desired article.
Fränkische Rohrwerke 20260020Fränkische Rohrwerke 20260020Fränkische Rohrwerke 20260020
24,40 EUR 25,42 EUR
( 29,04 EUR incl. VAT )
≈ £20.42  |  ≈ $26.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black
Datasheet:file_download Download
Lieske Part No.:224254
Mfg Part No: 20260020
UPC/EAN: 4013960165586
Weight:0.123 kg
Type:SB-E 20 lackiert
Graduated prices net
From piecesPrice per pieces
1522,20 EUR
3020,01 EUR
7017,81 EUR
10015,62 EUR

Product information for Fränkische Rohrwerke 20260020:

The SB-E 20 lacquered from Fränkische Rohrwerke is a steel pipe threaded elbow, specifically designed for connecting the lacquered steel pipe Staro threaded-ES. The product is made of rolled mild steel and features a baked-on lacquer coating in black, ensuring a uniform and durable surface finish. The elbow is threaded on both ends and includes a screwed-on coupling (SM-E) on one side, enabling a secure and mechanically stable connection. The construction is designed for use in electrical installation pipe systems, particularly in applications requiring high mechanical load capacity and thermal resistance.

Applications

The SB-E 20 lacquered is suitable for use in various areas of electrical installation, including machine construction, prefabricated construction, screed installation, concrete and earth installation, as well as outdoor applications. Standardization according to DIN EN 61386-21 and VDE 0605 ensures compliance with required safety and quality standards. The classification 55561 confirms suitability for applications with increased requirements for pressure resistance and temperature resistance. Use in earth, concrete, or under plaster is possible due to the mechanical stability and surface coating.

Functions and Equipment in Detail

The elbow has an outer diameter of 20 mm and an inner diameter of 17 mm. The double-threaded design enables flexible installation and connection with other components of the Staro threaded-ES system. The screwed-on coupling ensures a tight and stable connection that remains secure even under mechanical stress. The baked-on lacquer coating protects the steel pipe from corrosion and provides a uniform, black-lacquered surface that integrates visually and functionally into electrical installations.

Technology Explained Simply

The construction from rolled mild steel offers high strength and resistance to mechanical loads. The minimum pressure resistance is 4000 N/5 cm, ensuring high mechanical stability. The baked-on lacquer coating is not UV-resistant, meaning the surface may show discoloration or wear under prolonged direct sunlight exposure. The surface is not polished or brushed, but smoothly lacquered, which facilitates installation and cleaning. The elbow has a 90° angle, making it ideal for right-angled connections in installations.

Compatibility and Accessories

The SB-E 20 lacquered is specifically designed for connection with the lacquered steel pipe Staro threaded-ES. The coupling (SM-E) is an integral part of the elbow and enables a secure connection. Standardization according to DIN EN 61386-21 and VDE 0605 ensures compatibility with other products meeting these standards.

Installation and Mounting

Installation is performed by screwing the threaded ends to the corresponding pipe sections. The screwed-on coupling is tightened with an appropriate tool to ensure a tight and stable connection. Installation can take place in various environments, including in earth, concrete, screed, or outdoors, with mechanical load capacity and surface coating determining the operating conditions.

Advantages in Operation

The high pressure resistance of 4000 N/5 cm and temperature resistance ensure reliable performance even under demanding conditions. The baked-on lacquer coating protects the steel pipe from corrosion and ensures long service life. Use in various installation scenarios, including in earth and concrete, makes the elbow a versatile component in electrical installations. Conformity with DIN EN 61386-21 and VDE 0605 ensures the safety and quality of the product.

Delivery form
Outer diameter20 mm
Inner diameter17 mm
Minimum quantity25
Pallet content2100
Base unit quantityPiece
Technical data
MaterialMetal
Material qualitySteel
Surface protectionLacquered
Quality of surface coatingOther
ModelThread
ColourBlack
Angle of bow90 °
UV resistantNo
Surface polishedNo
Surface brushedNo
With sleeveJa
Two pieceNo
With inspection opening and coverNo
FlexibleNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20260020, EAN: 4013960165586

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black ?

The article Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20260020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Fränkische Rohrwerke 20260020 Fränkische SB-E 20 lacquered steel pipe threaded elbow black we can offer you a price of 22,20 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
