Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black

Your rating:
Average rating
product review for Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black
( 4.5 / 5 ) 55 ratings

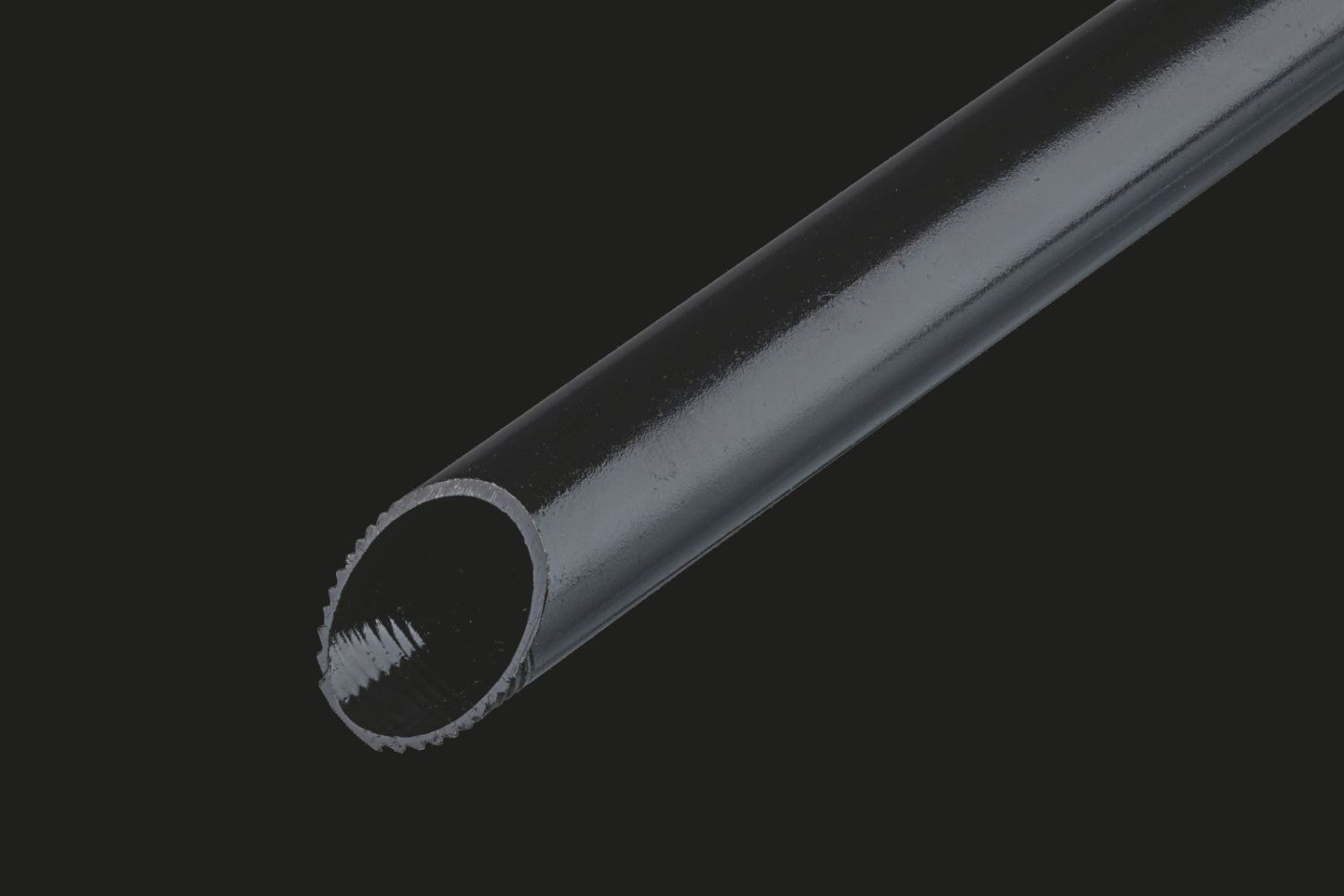

Fränkische Rohrwerke 20210050
This image may differ from the desired article.
Fränkische Rohrwerke 20210050Fränkische Rohrwerke 20210050Fränkische Rohrwerke 20210050Fränkische Rohrwerke 20210050
150,02 EUR 156,34 EUR
( 178,52 EUR incl. VAT )
≈ £125.57  |  ≈ $164.87
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 3 meters
In Stock: >10 meters
1x Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black
Datasheet:file_download Download
Lieske Part No.:196426
Mfg Part No: 20210050
UPC/EAN: 4013960165487
Weight:5.64 kg
Type:Staro Gewinde-ES 50 schwarz lackiert
Graduated prices net
From piecesPrice per meters
5133,14 EUR
10116,27 EUR
1599,39 EUR
2082,51 EUR

Product information for Fränkische Rohrwerke 20210050:

The Staro Gewinde-ES 50 black lacquered from Fränkische Rohrwerke is a rigid steel pipe made of rolled mild steel, featuring a baked-on lacquer coating in deep black (similar to RAL9005). It is supplied in bar lengths of 3 metres and has metric threads on both ends, with one end fitted with a threaded coupling (SM-E). The pipe is designed for applications involving extreme mechanical loads and secure connections, particularly in areas requiring high pressure resistance and temperature resistance.

Applications
This product is suitable for a wide range of installation scenarios, including in-wall installation, surface mounting, installation in concrete, on wood, in screed, in hot asphalt, and in hollow walls. It is also intended for underfloor installation in bitumen or hot asphalt coverings. According to the manufacturer, installation in soil or outdoors is not intended. The pipe is suitable for routing cables with fire integrity (E30/E60/E90) and is system-tested, qualifying it for use in fire protection systems.

Functions and Features in Detail
The Staro Gewinde-ES features very high pressure resistance, corresponding to pressure resistance class 5 (very heavy) according to EN 61386-1, with a minimum load of 4000 N over 5 cm. The baked-on lacquer provides medium corrosion protection both internally and externally. The temperature resistance ranges from -45 °C to +250 °C, making the pipe suitable for use in environments with varying climatic conditions. Electrical conductivity is present, allowing its use in electrical installations with grounding functions.

Technical Explanation
The pipe is made of rolled mild steel, ensuring high strength and dimensional stability. The baked-on lacquer provides a uniform, durable protective layer that protects the surface from corrosion. The double-threaded design enables a secure, torque-resistant connection with other pipe sections or fittings. The threaded coupling (SM-E) at one end facilitates installation and secures the connection. The rigid construction prevents bending and deformation under load.

Compatibility and Accessories
Various accessories are compatible with this pipe, including the threaded coupling SM-E, threaded elbow SB-E, threaded end cap SE-E, spacers SSG-E-V, locking rings SGR-E, threaded nipple SMG-E, quick-mount couplings SMK-E, and end cap E-Ku-E in grey or black. The E-Ku-E 50 plastic end cap grey is available as a suitable accessory and is used to seal the ends of the pipe.

Installation and Mounting
Mounting is done via the metric threads at both ends, with the pre-installed threaded coupling (SM-E) enabling quick and secure connections. The pipe can be installed in-wall or surface-mounted, as well as in concrete, on wood, or in screed. According to the manufacturer, installation in soil or outdoors is not intended. Installation does not require special tools, although the use of appropriate sealing and fastening materials is recommended to ensure mechanical strength.

Operational Advantages
The Staro Gewinde-ES offers high mechanical stability and is designed for extreme loads. The baked-on lacquer provides long-lasting corrosion protection, and the temperature resistance from -45 °C to +250 °C expands its range of applications. The system testing for fire integrity (E30/E60/E90) makes it suitable for fire protection systems. The rigid construction ensures permanent dimensional stability, and the electrical conductivity allows use in grounding systems. Installation in various building materials such as concrete, screed, or wood is possible, increasing flexibility in application.

The item price shown refers to 3 meters Fränkische Rohrwerke 20210050
Delivery form
Minimum quantity15
Pallet content495
Base unit quantityMetre
Technical data
MaterialSteel
Material qualitySteel (mild steel rolled)
Surface protectionLacquered
Quality of surface coatingOther
ModelRigid
Connection 1Inner thread metric
Connection 2Outer thread metric
ColourBlack
Pressure resistance class per EN 61386-1very heavy (Class 5, 4000 N)
Inner diameter46 mm
Outer diameter50 mm
Surface polishedNo
Surface brushedNo
Flush-mounted installationJa
Surface mountingJa
Suitable for concrete installationJa
Machine and plant installationJa
Suitable for subsurface installation (bitumen, hot asphalt)Ja
Suitable for subsurface installation (screed))Ja
Outdoor installationNo
Installation on woodJa
Suitable for hollow wall installationJa
Suitable for underground installationNo


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Fränkische Rohrwerke 20210050, EAN: 4013960165487

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black ?

The article Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20210050 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 meters of Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black we can offer you a price of 133,14 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 20210050 Stapa threaded pipe M50 3 m with threaded coupling black is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
