Fränkische Rohrwerke Logo

Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black

Your rating:
Average rating
product review for Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black
( 4.5 / 5 ) 55 ratings

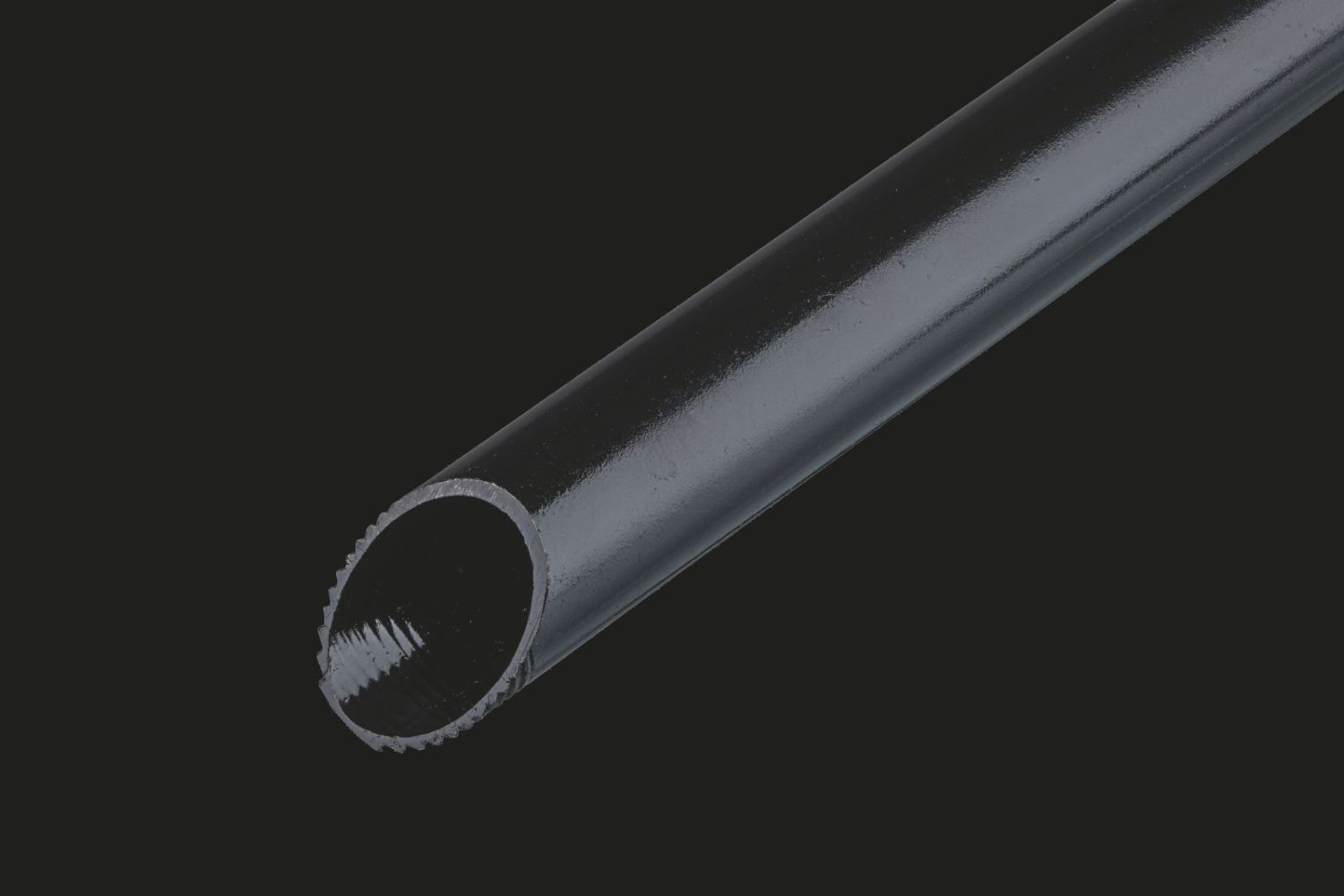

Fränkische Rohrwerke 20210016
This image may differ from the desired article.
Fränkische Rohrwerke 20210016Fränkische Rohrwerke 20210016Fränkische Rohrwerke 20210016Fränkische Rohrwerke 20210016
49,76 EUR 51,86 EUR
( 59,21 EUR incl. VAT )
≈ £41.65  |  ≈ $54.69
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 3 meters
In Stock: >10 meters
1x Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black
Datasheet:file_download Download
Lieske Part No.:196401
Mfg Part No: 20210016
UPC/EAN: 4013960165432
Weight:0.123 kg
Type:Staro Gewinde-ES 16 schwarz lackiert
Graduated prices net
From piecesPrice per meters
1044,54 EUR
2539,31 EUR
5034,09 EUR
7528,86 EUR

Product information for Fränkische Rohrwerke 20210016:

The Staro Gewinde-ES 16 black lacquered from Fränkische Rohrwerke is a rigid steel pipe made of rolled mild steel, designed for installations with high mechanical requirements. It is supplied in bar lengths of 3 metres and features a baked-on lacquer coating in deep black, corresponding to RAL9005. The pipe is threaded on both ends and equipped on one side with a screwed coupling (SM-E), enabling a secure and permanent connection. It is intended for use in electrical installation systems, particularly where high mechanical load capacity and long-lasting corrosion protection are required.

Applications
This product is suitable for a wide range of installation scenarios, including recessed and surface mounting, installation in screed, hot asphalt, concrete, and on wood. It can also be used in prefabricated construction and in machine and plant installations. Installation in soil or outdoors is not recommended by the manufacturer. The pipe is suitable for routing cables with fire integrity (E30, E60, E90) and is system-tested, making it relevant for applications in fire protection systems.

Functions and Features in Detail
The Staro Gewinde-ES 16 features very high pressure resistance, corresponding to pressure resistance class 5 (very heavy) according to EN 61386-1, with a minimum load of 4000 N over 5 cm. The surface is lacquered, providing medium corrosion protection both internally and externally. The temperature resistance ranges from -45 °C to +250 °C, making the pipe suitable for applications in various environmental conditions. The classification according to VDE 0605 DIN EN 61386-21 is 55561, describing the mechanical and electrical properties of the system.

Technical Explanation
The pipe is made of steel (rolled mild steel) and is rigid, meaning it has no bending capability and can only be installed in straight bars. The baked-on lacquer provides a durable protective layer against corrosion. The metric threads on both ends allow for secure connections with other pipe sections or fittings. The screwed coupling (SM-E) on one side ensures secure connection with additional pipe sections or accessories. The pressure resistance of 4000 N/5 cm measures the mechanical load capacity, indicating the pipe’s ability to withstand external forces such as pressure or impact.

Compatibility and Accessories
Fränkische offers compatible accessories for this pipe, including the plastic end cap E-Ku-E 16 in grey (article number 25995016). This end cap serves as a closure and protective element for the pipe ends. Additional accessories such as threaded couplings, bends, end caps in various designs, or spacing brackets are also available, enabling flexible and adaptable system configuration.

Installation and Mounting
Installation is carried out in bar lengths of 3 metres, with routing possible in various substrates such as concrete, screed, hot asphalt, or on wood. Installation requires appropriate tools for connecting the threads and securing the pipes. Installation in soil or outdoors is not recommended by the manufacturer. Routing is typically done under or on plaster, with mechanical strength and corrosion protection being the main advantages.

Operational Advantages
The advantages of the Staro Gewinde-ES 16 include very high pressure resistance, temperature resistance, and corrosion protection. Its use in systems with fire integrity (E30/E60/E90) makes it a suitable solution for fire protection systems. The rigid design ensures a durable and stable connection that remains intact even under high mechanical loads. The baked-on lacquer coating ensures long service life and low maintenance requirements.

The item price shown refers to 3 meters Fränkische Rohrwerke 20210016
Delivery form
Minimum quantity30
Pallet content1800
Base unit quantityMetre
Technical data
MaterialSteel
Material qualitySteel (mild steel rolled)
Surface protectionLacquered
Quality of surface coatingOther
ModelRigid
Connection 1Inner thread metric
Connection 2Outer thread metric
ColourBlack
Pressure resistance class per EN 61386-1very heavy (Class 5, 4000 N)
Inner diameter13 mm
Outer diameter16 mm
Surface polishedNo
Surface brushedNo
Flush-mounted installationJa
Surface mountingJa
Suitable for concrete installationJa
Machine and plant installationJa
Suitable for subsurface installation (bitumen, hot asphalt)Ja
Suitable for subsurface installation (screed))Ja
Outdoor installationNo
Installation on woodJa
Suitable for hollow wall installationJa
Suitable for underground installationNo


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Fränkische Rohrwerke 20210016, EAN: 4013960165432

Questions & answers

What is the delivery time of Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black ?

The article Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 20210016 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 meters of Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black we can offer you a price of 44,54 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you




Fitting accessory for Fränkische Rohrwerke 20210016 Stapa threaded pipe M16 3 m with threaded coupling black

Fränkische Rohrwerke 25995016 Fränkische E-Ku-E 16 plastic end cap grey Fränkische Rohrwerke LogoFränkische Rohrwerke 25995016 Fränkische E-Ku-E 16 plastic end cap grey The E-Ku-E 16 is a plastic end cap for insertion, made of polyolefin, in the colour grey (RAL 7035). It serves as an edge protection for rod and metal pipes in the field of electrical installation.

Lieske Part No.: 545895
Mfg Part No: 25995016
Type: E-Ku-E 16
0,86 EUR 0,90 EUR
Fränkische Rohrwerke 25995016 plus VAT
≈ £0.72  |  ≈ $0.95
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
