Fränkische Rohrwerke 20110025 Fränkische FFS-ES 25 steel pipe from strip steel with tight corrugation flexible

Your rating:
Average rating
product review for Fränkische Rohrwerke 20110025 Fränkische FFS-ES 25 steel pipe from strip steel with tight corrugation flexible
( 4.5 / 5 ) 156 ratings
Fränkische Rohrwerke 20110025
This image may differ from the desired article.
Fränkische Rohrwerke 20110025Fränkische Rohrwerke 20110025Fränkische Rohrwerke 20110025Fränkische Rohrwerke 20110025
991,56 EUR 1.033,31 EUR
( 1.179,96 EUR incl. VAT )
≈ £829.94  |  ≈ $1,089.72
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 25 meters
In Stock: 5 meters
1x Fränkische Rohrwerke 20110025 Fränkische FFS-ES 25 steel pipe from strip steel with tight corrugation flexible
Datasheet:file_download Download
Lieske Part No.:113969
Mfg Part No: 20110025
UPC/EAN: 4013960178579
Weight:7.675 kg
Type:FFS-ES 25
Graduated prices net
From piecesPrice per meters
3961,81 EUR
6932,07 EUR
9902,32 EUR
12872,57 EUR

Product information for Fränkische Rohrwerke 20110025:

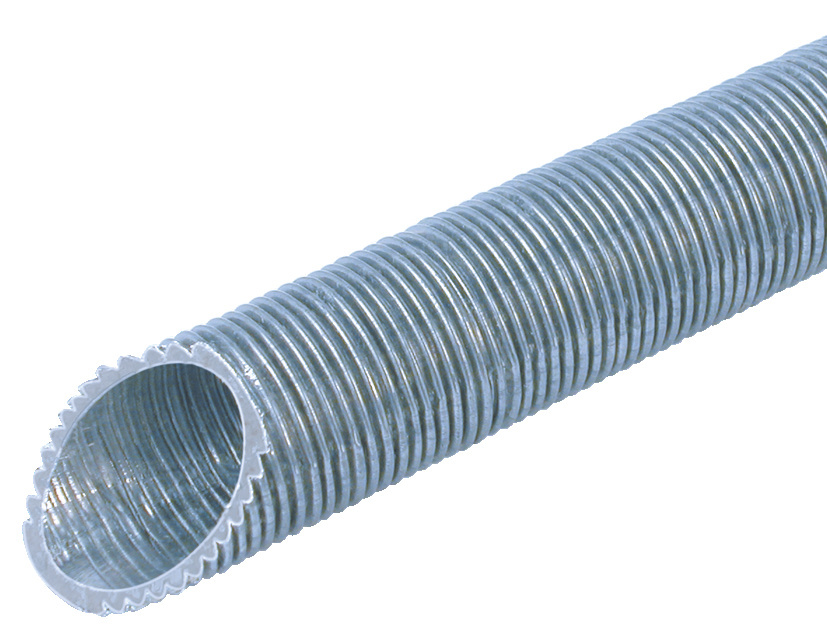

The Fränkische Rohrwerke FFS-ES 25 is a heavy, flexible steel pipe made from galvanised strip steel, featuring a tight corrugation and an intermediate layer of special insulation. It is specifically designed for use in electrical installations in residential and industrial construction, particularly for surface and flush mounting applications. A key application area is installation in hot asphalt, for which the pipe is suitable due to its high thermal resistance. The product is supplied standard with a single-sided coupling (SM-E-V), enabling a secure connection to other pipe sections. The construction ensures high pressure resistance and thermal load capacity, allowing use even in demanding environments. Shielding of cables and conductors is ensured by the metallic structure of the pipe, enhancing electromagnetic compatibility.

Applications

The FFS-ES 25 is used in electrical installations for indoor and outdoor applications, particularly in buildings and industrial facilities. It is suitable for flush, surface, and hot asphalt installations, where high temperatures and mechanical loads occur. Use in hot asphalt is possible due to temperature resistance up to +250°C, ensuring safe and durable installation. The high pressure resistance also makes the pipe suitable for areas subject to mechanical stress from traffic or construction activities.

Functions and Equipment in Detail

The pipe is made from galvanised strip steel, providing high corrosion resistance. The tight corrugation ensures optimal flexibility without compromising mechanical stability. The intermediate layer of special insulation improves thermal and mechanical properties. The integrated single-sided coupling (SM-E-V) allows for easy and secure connection to additional pipe sections. Shielding of installed cables and conductors is achieved through the metallic structure of the pipe, enhancing electromagnetic compatibility and minimising interference.

Technology Explained Simply

The construction of the FFS-ES 25 is based on galvanised strip steel wound in a tight corrugation. The galvanisation protects the material from corrosion, especially in damp or aggressive environments. The intermediate layer of special insulation improves thermal and mechanical stability. The minimum pressure resistance is 1250 N/5 cm, ensuring high mechanical load capacity. Temperature resistance up to +250°C makes the pipe suitable for installation in hot asphalt, where high thermal loads occur. The single-sided coupling (SM-E-V) enables easy and secure connection to other pipe sections.

Compatibility and Accessories

The FFS-ES 25 is compatible with suitable accessories such as the Fränkische SM-E-V 25 galvanised Zn-Ni steel pipe threaded coupling 20450025. This coupling enables a secure and durable connection between pipe sections. Using compatible couplings and connectors ensures an intact installation and prevents mechanical or electrical faults. Compatibility with additional accessories from the Fränkische Rohrwerke range is provided, enabling flexible and adaptable installation.

Installation and Mounting

Installation of the FFS-ES 25 involves bending and connecting pipe sections using the integrated single-sided coupling (SM-E-V) or additional couplings. The pipe can be installed in surface and flush applications, with its flexibility allowing adaptation to site conditions. When installed in hot asphalt, temperature resistance up to +250°C is critical to ensure durable and safe installation. Mechanical stability and pressure resistance ensure the pipe remains stable even under stress from traffic or construction activities.

Operational Advantages

The FFS-ES 25 offers high mechanical and thermal load capacity, making it suitable for demanding operating conditions. Shielding of cables and conductors through the metallic structure of the pipe enhances electromagnetic compatibility and minimises interference. Galvanisation of the strip steel ensures high corrosion resistance, extending the pipe’s service life. The integrated single-sided coupling (SM-E-V) simplifies installation and ensures a secure connection. Use in hot asphalt is possible due to temperature resistance up to +250°C, offering broad application possibilities.

The item price shown refers to 25 meters Fränkische Rohrwerke 20110025
General
Pipe typeFlexible steel pipe -
Materialgalvanized strip steel -
Rillingtight -
Intermediate layerSpecial insulation -
Sleevesingle-sided (SM-E-V) -
Temperature resistance+250 °C
Minimum pressure resistance1250 N/5cm
NormVDE 0605 DIN EN 61386-22 -
Delivery form
Minimum quantity25
Pallet content800
Base unit quantityMetre
Technical data
MaterialSteel
Material qualitySteel (strip steel rolled)
Surface protectionGalvanic/electrolytic zinc plated
Quality of surface coatingGalvanic zinc coated
ModelPliable corrugated
Connection 1Inner thread metric
Connection 2Tube end
ColourZinc
Pressure resistance class per EN 61386-1heavy (Class 4, 1250 N)
Inner diameter20 mm
Outer diameter25 mm
Surface polishedNo
Surface brushedNo
Flush-mounted installationJa
Surface mountingJa
Suitable for concrete installationJa
Machine and plant installationJa
Suitable for subsurface installation (bitumen, hot asphalt)Ja
Suitable for subsurface installation (screed))Ja
Outdoor installationNo
Installation on woodJa
Suitable for hollow wall installationJa
Suitable for underground installationNo


Product data sheet
Datasheet for Fränkische Rohrwerke 20110025, EAN: 4013960178579
