Fränkische Rohrwerke Logo

Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110

Your rating:
Average rating
product review for Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110
( 1 / 5 ) 1 ratings
Fränkische Rohrwerke 19980110
This image may differ from the desired article.
Fränkische Rohrwerke 19980110Fränkische Rohrwerke 19980110Fränkische Rohrwerke 19980110
5,27 EUR 5,49 EUR
( 6,27 EUR incl. VAT )
≈ £4.41  |  ≈ $5.79
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110
Datasheet:file_download Download
Lieske Part No.:278369
Mfg Part No: 19980110
UPC/EAN: 4013960106831
Weight:0.02 kg
Type:Profildichtring WD NW 110
Graduated prices net
From piecesPrice per pieces
254,87 EUR
504,48 EUR
1004,08 EUR
2503,69 EUR

Product information for Fränkische Rohrwerke 19980110:

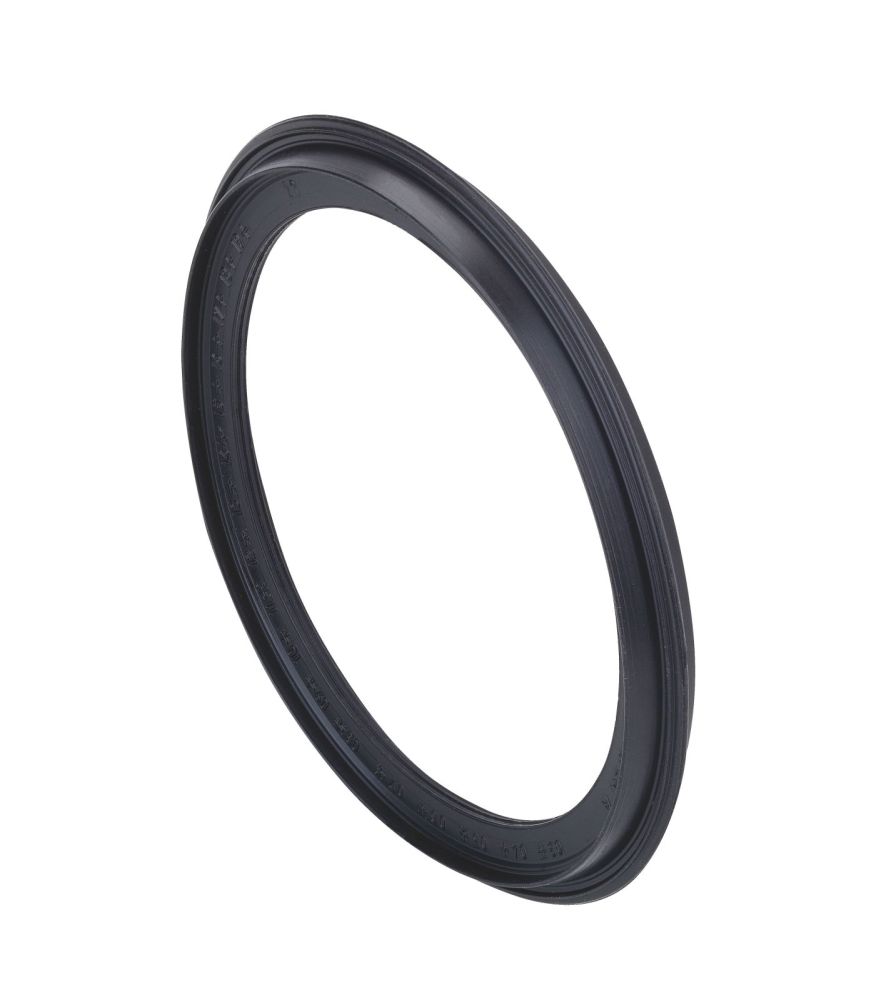

The Kabuflex profile seal WD NW 110 from Fränkische Rohrwerke is a watertight seal made of EPDM, specifically designed for use with Kabuflex installation pipes. It serves as a connection element in piping technology to create a tight connection between pipes, particularly in systems subjected to low pressure up to 0.5 bar. The seal is manufactured in black and is used together with Kabuflex couplings in transparent and black colours to ensure reliable sealing.

Applications
The profile seal WD NW 110 is used in the electrical and installation industry where a watertight connection between PVC installation pipes is required. It is particularly suitable for applications outdoors or in damp environments where sealing against moisture and water is necessary. The seal is used in combination with Kabuflex couplings to ensure a tight connection that can withstand pressures up to 0.5 bar.

Functions and Equipment in Detail
The seal is made of EPDM (ethylene-propylene-diene monomer), an elastic plastic known for its chemical resistance and weather resistance. The black colour allows for visual distinction from other components and is suitable for use in technical installations. The ring is shaped to be inserted into the coupling of the Kabuflex pipe, creating a tight connection between two pipes. The sealing effect is achieved through the elastic shape of the ring, which adapts to the surfaces of the pipes under pressure.

Technology Explained Simply
The profile seal WD NW 110 operates on the principle of form sealing. During installation, the ring is placed into the coupling of the Kabuflex pipe, where its elastic deformation creates a tight connection between two pipes. The choice of EPDM material ensures high resistance to moisture, UV radiation, and chemical influences, extending the service life of the connection. The watertight sealing up to 0.5 bar makes the seal suitable for applications in lightly loaded systems, such as in building installations or outdoor conduits.

The connection is mechanically secured by the coupling, while the seal provides the sealing function. The combination of coupling and seal enables quick and reliable installation without additional adhesives or threaded connections.

Compatibility and Accessories
The profile seal WD NW 110 is specifically developed for Kabuflex installation pipes and is used together with Kabuflex couplings in transparent and black colours. The couplings serve as mechanical connection elements, while the seal ensures watertight sealing. The combination of coupling and seal enables a secure and tight connection suitable for the installation of electrical and installation conduits.

Installation and Mounting
Installation is carried out by inserting the profile seal into the coupling of the Kabuflex pipe. The second pipe is then inserted into the coupling, allowing the seal to elastically adapt to the pipe surfaces and create a tight connection. The connection is secured by the mechanical fit of the coupling. No additional tools or adhesives are required. The installation is quick and simple, even for tradespeople without special tools.

Operational Advantages
The use of the profile seal WD NW 110 ensures a reliable watertight connection that holds even under low pressure up to 0.5 bar. The choice of EPDM material ensures a long service life and resistance to environmental influences. The simple installation without additional tools or adhesives reduces installation time and increases efficiency. The combination with Kabuflex couplings enables a standardised and secure connection in the electrical and installation industry.

General
MaterialEPDM
ColourBlack
Nominal width110 mm
Sealing typeWatertight
Maximum operating pressure0,5 bar
CompatibilityKabuflex connectors in transparent and black
Delivery form
ColourBlack
Minimum quantity1
Base unit quantityPiece
Technical data
MaterialRubber
Material qualityEthylene-Propylene-Diene Rubber (EPDM)
Ring modelMassive
Outer diameter95 mm
Inner diameter82.7 mm
Thicknessmm
Suitable for NPT thread sizeOther
Number of feedthroughs1


Product data sheet
Datasheet for Fränkische Rohrwerke 19980110, EAN: 4013960106831

Questions & answers

What is the delivery time of Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110 ?

The article Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 19980110 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110 always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Fränkische Rohrwerke 19980110 Fränkische Profildichtring WD NW 110 we can offer you a price of 4,87 EUR per piece. The more you buy, the cheaper the article will be.
