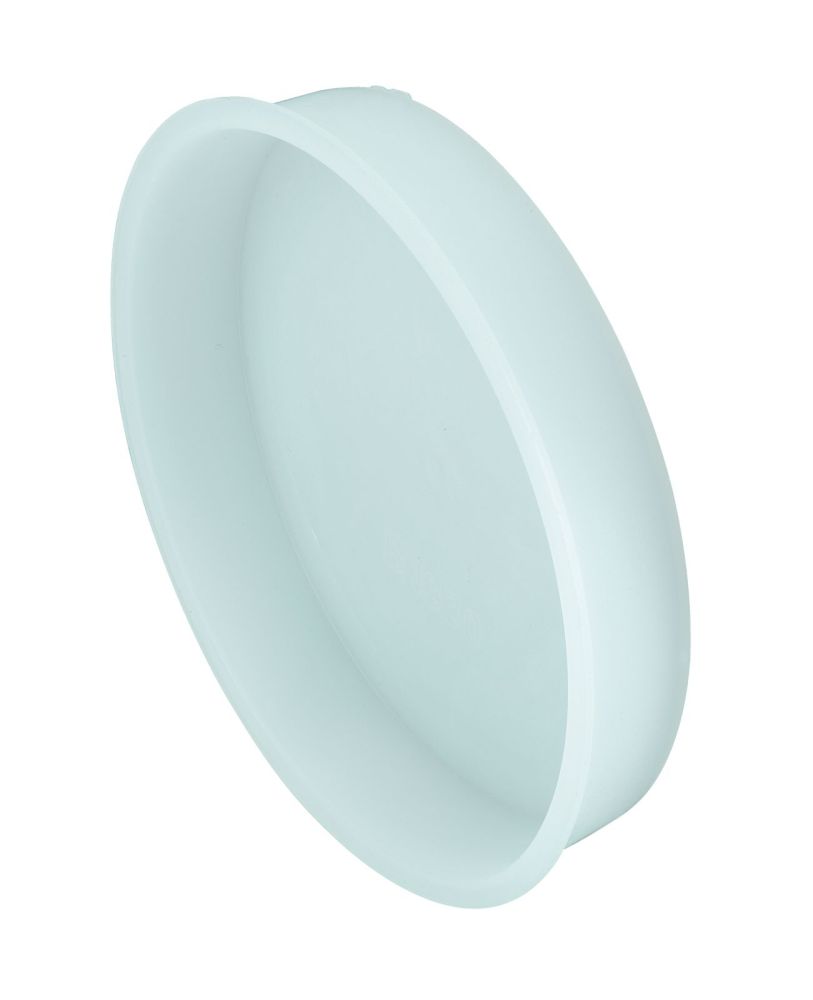

Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap

Your rating:
Average rating
product review for Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap
( 4.5 / 5 ) 19 ratings
Fränkische Rohrwerke 19970075
This image may differ from the desired article.
Fränkische Rohrwerke 19970075Fränkische Rohrwerke 19970075Fränkische Rohrwerke 19970075Fränkische Rohrwerke 19970075
4,37 EUR 4,55 EUR
( 5,20 EUR incl. VAT )
≈ £3.66  |  ≈ $4.80
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap
Datasheet:file_download Download
Lieske Part No.:142694
Mfg Part No: 19970075
UPC/EAN: 4013960106749
Weight:0.01 kg
Type:Kabuflex-V-Kappe 75
Graduated prices net
From piecesPrice per pieces
504,21 EUR
1004,04 EUR
2503,88 EUR
5003,71 EUR

Product information for Fränkische Rohrwerke 19970075:

The Kabuflex-V cap 75 from Fränkische Rohrwerke is an end cap made of polyethylene (PE) for Kabuflex® installation pipes. It is used for permanent or temporary sealing of pipes in electrical and installation construction. The cap is available in transparent and partially yellow colours and features a sand-tight seal that protects against ingress of fine particles. The inner diameter is 63 mm, the outer diameter 68 mm, making it precisely matched to the Kabuflex® pipe profile.

Applications

The end cap SD is used in the field of electrical installation, particularly for laying empty pipes in various environments. These include applications in prefabricated construction, outdoors, on plaster, under plaster, in concrete, on wood, in soil, and for laying under hot asphalt in screed. The cap is suitable for use in machines and outdoors, as it is UV-resistant and meets the requirements of standard DIN EN 50642 (VDE 0604-2-100). The material properties ensure high chemical resistance against liquids such as vinegar, antifreeze, mineral oil, detergents, seawater, and milk. It is not resistant to more aggressive substances such as nitric acid, dry gaseous chlorine, or benzene.

Functions and equipment in detail

The Kabuflex-V cap 75 is made of polyolefin, a plastic known for its high mechanical strength and weather resistance. The surface is untreated and unpolished, which facilitates processing and installation. The cap is supplied without a sealing ring, allowing direct mounting onto the pipe. The sand-tight sealing function ensures that fine particles, sand, or dust cannot enter the pipe, thereby securing the integrity of the installation over the long term. The transparent and yellow colouring enables visual differentiation and orientation in the installation plan.

Technology explained simply

The end cap SD is a precision-fitting component designed for an inner diameter of 63 mm and an outer diameter of 68 mm. The material polyethylene (PE) offers high resistance to mechanical stress, UV radiation, and many chemical influences. The cap is halogen-free, non-flame-propagating, and complies with the requirements of standards DIN EN 61034-2, DIN EN 61386-1, and DIN EN ISO 4892-1. UV resistance makes it suitable for outdoor use without degradation of material strength due to sunlight exposure. The sand-tight sealing is particularly important for installations in soil or dusty environments to protect the cables from contamination.

Compatibility and accessories

The Kabuflex-V cap 75 is specifically developed for Kabuflex® pipes and fits precisely onto the pipe profile with an inner diameter of 63 mm. It is part of the Kabuflex® end cap SD product series and can be combined with other components of this series to create a complete empty pipe system. The cap is suitable for use in various construction methods, including laying in concrete, under plaster, in soil, and in prefabricated construction. The material standards and chemical resistances enable broad application in different environments.

Installation and mounting

Installation is carried out by simply pushing the cap onto the Kabuflex® pipe. The fit ensures a secure seating without additional fastening elements. The cap is not equipped with a sealing ring, so sealing is achieved by the shape and material itself. The sand-tight sealing function is achieved through the precise fit and material strength. Installation is quick and requires no special tools.

Advantages in operation

The Kabuflex-V cap 75 provides a reliable, sand-tight seal that protects the electrical installation from contamination. UV resistance and chemical resistance against many liquids increase the service life and reliability of the installation. The cap is easy to install and fits precisely onto the Kabuflex® pipe, enabling clean and professional installation. The use of polyethylene ensures high mechanical strength and weather resistance, making the cap suitable for outdoor use and demanding environments. The halogen-free and non-flame-propagating properties meet safety requirements in electrical and installation construction.

Delivery form
Colouryellow, transparent
Minimum quantity1
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityPolyethylene (PE)
Surface protectionUntreated
Inner diameter63 mm
Outer diameter68 mm
Surface polishedNo
With sealing ringNo


Product data sheet
Datasheet for Fränkische Rohrwerke 19970075, EAN: 4013960106749

Questions & answers

What is the delivery time of Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap ?

The article Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 19970075 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Fränkische Rohrwerke 19970075 Fränkische Kabuflex-V-Kappe 75 end cap we can offer you a price of 4,21 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
