Fränkische Rohrwerke 19970040 Fränkische Kabuflex-V-Kappe 40 end cap
|
3,72 EUR 3,88 EUR |
|||||||||||
|
( 4,43 EUR incl. VAT ) ≈ £3.11 | ≈ $4.09 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 507099 | ||||||||||
| Mfg Part No: | 19970040 | ||||||||||
| UPC/EAN: | 4013960106718 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | Kabuflex-V-Kappe 40 | ||||||||||
|
Graduated prices net
|
|||||||||||

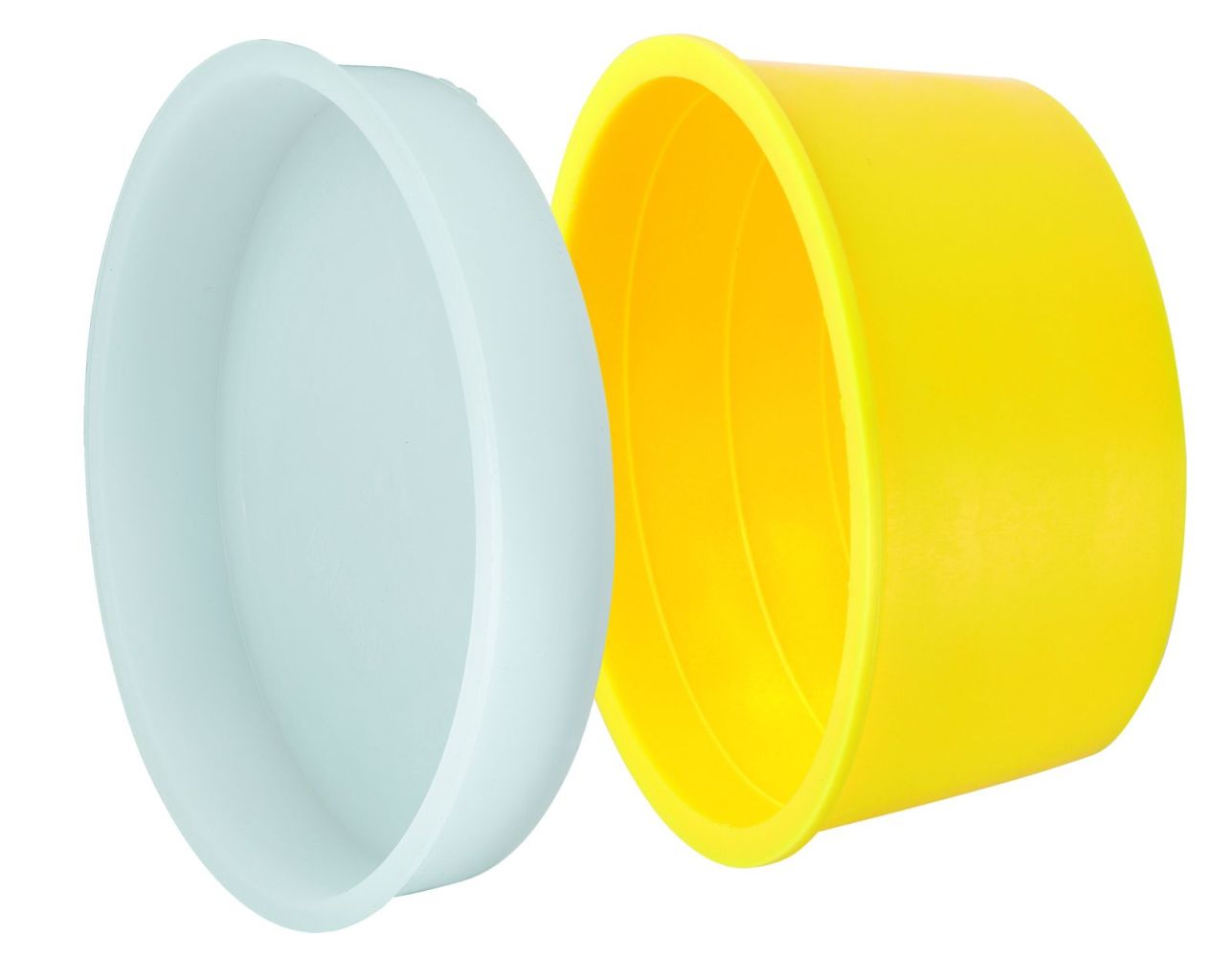

Product information for Fränkische Rohrwerke 19970040:
Applications
The Kabuflex-V cap 40 is used in the electrical installation system, particularly in areas where a tight closure of the pipe line is required. It is suitable for use in prefabricated construction, in the ground, on plaster, under plaster, in concrete, on wood, and outdoors. The sand-tight sealing protects the pipe line from contamination by dust, sand, or other particles, which is especially beneficial on open construction sites or outdoors. The cap is also suitable for applications in the machinery industry and for hot asphalt in screed.
Functions and equipment in detail
The end cap SD is made of polyethylene (PE), a robust plastic known for its high resistance to chemical influences and UV radiation. The surface is untreated and not polished, ensuring mechanical strength and functionality in use. The cap does not feature sealing rings, but relies on an exact fit to the pipe to ensure a secure seating. The color variants transparent and yellow allow for visual differentiation or adaptation to existing installations.
Technology explained simply
The Kabuflex-V cap 40 is specifically designed for Kabuflex® pipes used as empty conduits in the electrical installation system. The use of polyethylene (PE) as the material ensures high mechanical strength and chemical resistance. The sand-tight sealing is achieved through the exact fit and material strength, preventing fine particles from entering the pipe. The cap is not suitable for use in aggressive chemical environments such as nitric acid or benzene, as material resistance is limited in such conditions.
Compatibility and accessories
The Kabuflex-V cap 40 is specifically designed for Kabuflex® pipes with an inner diameter of 32 mm and an outer diameter of 38 mm. It is part of the Kabuflex® end cap SD product series and is available in various sizes, with cap 40 being the smallest variant.
Installation and mounting
Mounting is done by simply pushing the cap onto the pipe end. The precise fit ensures a secure seating without additional fastening elements. The cap is intended for use in the electrical installation system and requires no special tools or mounting aids. Installation is performed directly on the pipe, with the sand-tight sealing ensured by material strength and exact shape.
Advantages in operation
The Kabuflex-V cap 40 provides a reliable, sand-tight seal that protects the pipe line from contamination. The use of polyethylene (PE) ensures high resistance to environmental influences such as UV radiation and chemical substances. The cap is easy to install and requires no additional tools. Availability in transparent and yellow colors allows for visual differentiation or adaptation to existing installations. The sand-tight sealing is particularly advantageous for installations outdoors or on construction sites, where the ingress of dust or sand must be avoided.
| Delivery form | |
| Colour | yellow, transparent |
| Minimum quantity | 1 |
| Base unit quantity | Piece |
| Technical data | |
| Material | Plastic |
| Material quality | Polyethylene (PE) |
| Surface protection | Untreated |
| Inner diameter | 32 mm |
| Outer diameter | 38 mm |
| Surface polished | |
| With sealing ring | |
Questions & answers
What is the delivery time of Fränkische Rohrwerke 19970040 Fränkische Kabuflex-V-Kappe 40 end cap ?
The article Fränkische Rohrwerke 19970040 Fränkische Kabuflex-V-Kappe 40 end cap is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 19970040 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Fränkische Rohrwerke 19970040 Fränkische Kabuflex-V-Kappe 40 end cap always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 19970040 Fränkische Kabuflex-V-Kappe 40 end cap if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Fränkische Rohrwerke 19970040 Fränkische Kabuflex-V-Kappe 40 end cap we can offer you a price of 3,58 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
