Fränkische Rohrwerke 19910075 Fränkische Kabuflex-Muffe NW 75 plastic double socket coupling DN

Your rating:
Average rating
product review for Fränkische Rohrwerke 19910075 Fränkische Kabuflex-Muffe NW 75 plastic double socket coupling DN
( 4.5 / 5 ) 13 ratings

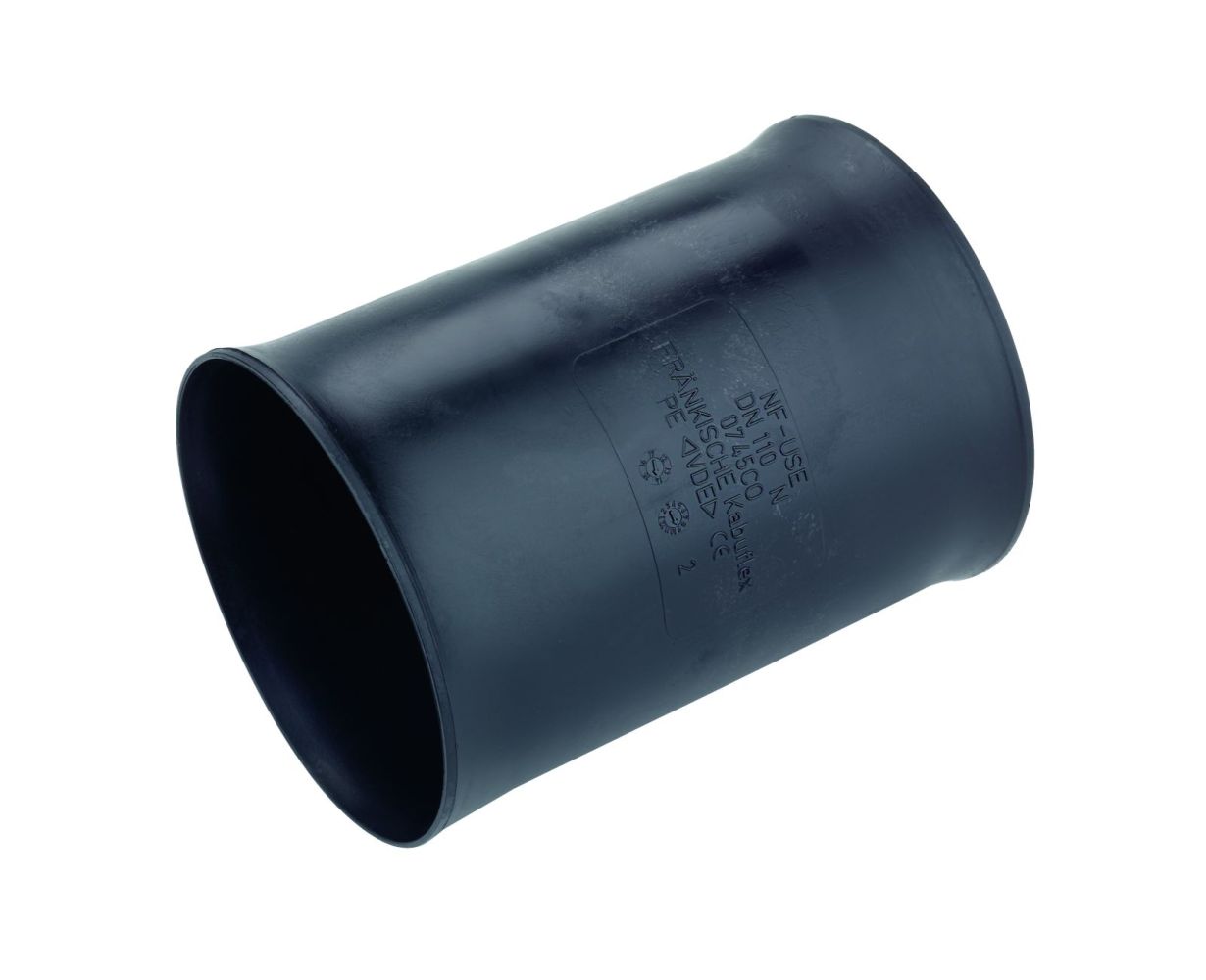

Fränkische Rohrwerke 19910075
This image may differ from the desired article.
Fränkische Rohrwerke 19910075Fränkische Rohrwerke 19910075Fränkische Rohrwerke 19910075
4,96 EUR 5,17 EUR
( 5,90 EUR incl. VAT )
≈ £4.15  |  ≈ $5.45
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x Fränkische Rohrwerke 19910075 Fränkische Kabuflex-Muffe NW 75 plastic double socket coupling DN
Datasheet:file_download Download
Lieske Part No.:171321
Mfg Part No: 19910075
UPC/EAN: 4013960106558
Weight:0.06 kg
Type:Kabuflex-Muffe NW 75
Graduated prices net
From piecesPrice per pieces
504,77 EUR
1004,59 EUR
2504,40 EUR
5004,22 EUR

Product information for Fränkische Rohrwerke 19910075:

The Kabuflex coupling NW 75 from Fränkische Rohrwerke is a sand-tight plastic push-fit coupling made of high-density polyethylene (PE-HD) in black, halogen-free. It is used to connect Kabuflex installation pipes and ensures a secure, sand-tight connection suitable for underground and concrete-encased installations. The coupling is designed as a double push-fit coupling, meaning it is inserted into both ends of the pipes to enable a secure connection. The connection is specifically designed for Kabuflex pipes and meets the requirements for sand-tight connections in electrical and communication installation technology.

Applications
The Kabuflex coupling NW 75 is primarily used in the field of underground installation of electrical or communication lines. It is suitable for installations in concrete, under screeds, in machine construction, and in prefabricated building components. The coupling is not UV-resistant and therefore not intended for permanent outdoor installation without additional protection. It is used in systems where a sand-tight and watertight connection up to a pressure of 0.5 bar is required, especially when combined with the profile sealing ring WD.

Functions and Equipment in Detail
The coupling has an inner diameter of 75.0 mm and an outer diameter of 80 mm, making it precisely matched to Kabuflex pipes with a nominal diameter of 75 mm. It is non-reducing, meaning it is designed for pipes of equal size. The surface is untreated and unpolished, which supports mechanical strength and connection security. The coupling is not separable, so it is mounted as a single unit. The connection is sand-tight, meaning it protects against the ingress of sand or fine material, which is particularly important for installations under screed or in concrete.

Technology Explained Simply
The Kabuflex coupling is made of PE-HD, a robust plastic known for its high strength and chemical resistance. The halogen-free composition reduces the formation of toxic smoke gases in case of fire. The coupling is not UV-resistant, meaning it may age or become brittle under prolonged direct sunlight. The sand-tight connection is achieved through the specific shape of the coupling and its fit with the Kabuflex pipe. When used with the profile sealing ring WD, the connection becomes watertight up to 0.5 bar, which is sufficient for many underground applications.

Compatibility and Accessories
The coupling is specifically designed for Kabuflex pipes and is used in combination with the profile sealing ring WD to achieve a watertight connection. The connection is not suitable for other pipe types, as the fit and material are specifically matched to Kabuflex. The coupling does not include a rubber seal and requires the additional use of the profile sealing ring WD for watertight applications. The standard EN 50626-1:052024 applies to the entire Kabuflex system range, including this coupling, and defines the requirements for underground cabling systems.

Installation and Mounting
Mounting is done by simply inserting the coupling onto the two pipes to be connected. The coupling is pushed in until it reaches the stop, creating a secure connection. For watertight applications, the profile sealing ring WD must be used, which is placed into the coupling before inserting the pipes. No tools are required for mounting, as the coupling holds mechanically through its fit. The connection is not separable, so it is installed once and remains fixed.

Operational Advantages
The Kabuflex coupling NW 75 provides a reliable, sand-tight connection suitable for underground and concrete-encased installations. The use of PE-HD ensures high mechanical strength and chemical resistance. The halogen-free composition reduces fire hazard and the formation of toxic smoke gases. In combination with the profile sealing ring WD, it enables watertight connections up to 0.5 bar, which is sufficient for many applications in electrical and communication construction. The coupling is easy to install and requires no additional tools or adhesives.

Delivery form
Minimum quantity1
Base unit quantityPiece
Technical data
MaterialPlastic
Material qualityPolyethylene (PE)
Surface protectionUntreated
ColourBlack
Inner diameter75.0 mm
Outer diameter80 mm
Nominal diameter, connection 175 mm
Nominal diameter, connection 275 mm
UV resistantNo
Surface polishedNo
ReducingNo
With rubber sealNo
SeparableNo


Product data sheet
Datasheet for Fränkische Rohrwerke 19910075, EAN: 4013960106558
