Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string

Your rating:
Average rating
product review for Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string
( 4.6 / 5 ) 58 ratings
Fränkische Rohrwerke 19210110
This image may differ from the desired article.
Fränkische Rohrwerke 19210110Fränkische Rohrwerke 19210110Fränkische Rohrwerke 19210110
771,88 EUR 804,38 EUR
( 918,54 EUR incl. VAT )
≈ £646.06  |  ≈ $848.30
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 50 meters
In Stock: >10 meters
1x Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string
Datasheet:file_download Download
Lieske Part No.:261514
Mfg Part No: 19210110
UPC/EAN: 4013960362770
Weight:27 kg
Type:Kabuflex R plus 110
Graduated prices net
From piecesPrice per meters
3685,04 EUR
6598,21 EUR
9511,37 EUR
12424,53 EUR

Product information for Fränkische Rohrwerke 19210110:

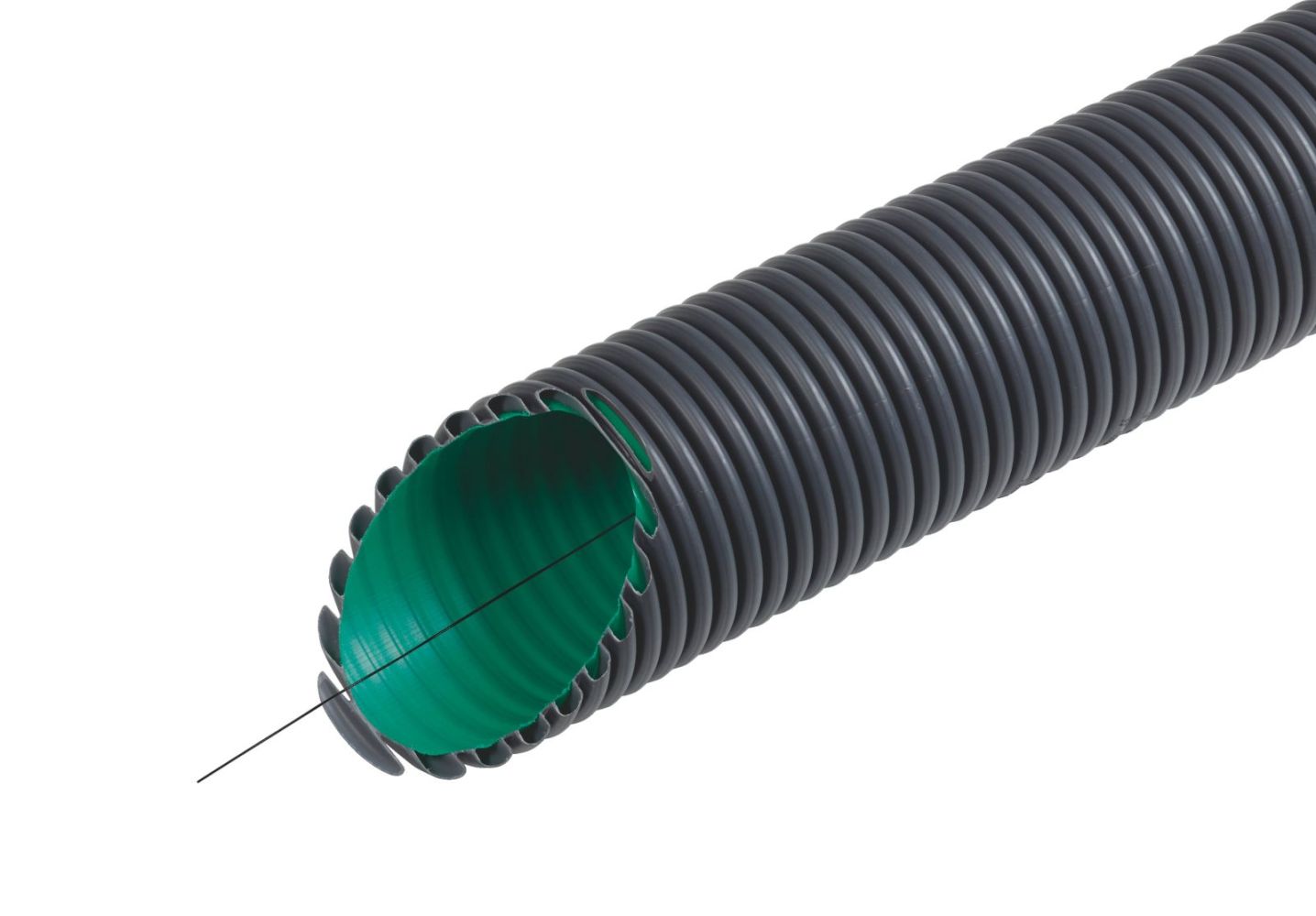

The Kabuflex R plus 110 from Fränkische Rohrwerke is a flexible cable protection conduit made of polyethylene (PE) in black, specifically designed for underground installation. The product features a composite construction with a green inner layer that facilitates cable insertion. It is halogen-free and complies with pressure rating Type 450 and impact resistance Normal according to DIN EN 61386-24. The classification code N450 indicates the mechanical properties and suitability for underground use. The outer diameter is 110 mm, the inner diameter 93 mm, ensuring sufficient capacity for multiple cables. The conduit is supplied in 50-meter coils and is designed for a temperature range of –5 °C to +90 °C. The minimum bending radius is 500 mm at an ambient temperature of 20 °C; at lower temperatures, an increased bending radius is recommended to avoid material damage.

Applications

The Kabuflex R plus 110 is intended for underground installation, for example, in the earth burial of electrical or communication cables. It is suitable for applications in the construction industry, for installation under screed, in concrete structures, or in outdoor areas. The sand-tight connection provided by the pre-fitted transparent double socket coupling ensures a secure connection between conduit sections.

Functions and Equipment in Detail

The cable protection conduit features an externally corrugated, internally smooth surface that enhances flexibility and supports cable insertion. The green inner layer reduces friction resistance and facilitates cable pulling, especially over longer installation lengths. The delivery includes a pull string to assist with cable pulling, as well as a transparent double socket coupling that is already fitted and ensures a sand-tight connection.

Technology Explained Simply

The term “co2ntrol” does not refer to a statement about CO₂ reduction of the product, but is part of the product name for the series. The conduit is designed for underground installations according to DIN EN 50626-1 and complies with standards for cable protection conduits. Pressure rating Type 450 means the conduit can withstand a certain load in the ground, while impact resistance Normal describes its resistance to mechanical stress. The halogen-free composition reduces the formation of toxic smoke gases in case of fire. An Environmental Product Declaration (EPD) is available and documents the environmental impacts of the product according to IBU guidelines.

Compatibility and Accessories

Various accessories are available for use with the Kabuflex R plus 110, including the Kabuflex-V cap 110 (end cap 19970110), which serves to seal the conduit ends. Other compatible components include the transparent double socket coupling, profile sealing ring for watertight connections, as well as various wall penetrations, branch couplings, and seals. The connection parts are designed to ensure sand-tight or watertight connections, depending on installation requirements.

Installation and Mounting

Installation is carried out by connecting conduit sections using the pre-fitted double socket coupling. The pull string facilitates cable insertion. When using the profile sealing ring, proper installation is required to achieve a watertight connection up to 0.5 bar. Bending operations should be performed at temperatures above 10 °C to ensure bending strength. At temperatures below 10 °C, increasing the bending radius by a factor of 1.5 to 2 is recommended.

Operational Advantages

The Kabuflex R plus 110 offers high mechanical stability and pressure resistance, which are required for underground installations. The flexible structure allows for flexible routing, even in tight bends. The green inner layer reduces friction resistance and accelerates cable insertion. The halogen-free composition increases safety in case of fire. The availability of an EPD enables transparent evaluation of environmental impacts. The sand-tight and watertight connection options ensure a durable and reliable installation in the ground.

The item price shown refers to 50 meters Fränkische Rohrwerke 19210110
Delivery form
Minimum quantity50
Pallet content132
Base unit quantityMetre
Technical data
MaterialPlastic
Surface protectionUntreated
ColourBlack
Pipe inner colourGreen
ModelPliable
ShapeOuter side ribbed, inner side plain
Inner diameter93 mm
Outer diameter110 mm
Impact resistance per EN 61386-24Normal
Pressure resistance per EN 61386-24Type 450
Surface polishedNo
TransparentNo


Product data sheet
Datasheet for Fränkische Rohrwerke 19210110, EAN: 4013960362770

Questions & answers

What is the delivery time of Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string ?

The article Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 19210110 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 meters of Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string we can offer you a price of 685,04 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you




Fitting accessory for Fränkische Rohrwerke 19210110 Fränkische Kabuflex R plus 110 flexible in 50 m coils with pull string

Fränkische Rohrwerke 19970110 Fränkische Kabuflex-V-Kappe 110 end cap Fränkische Rohrwerke LogoFränkische Rohrwerke 19970110 Fränkische Kabuflex-V-Kappe 110 end cap End cap for cable protection pipes, rods or ring as a commodity, non-flame, sand-proof, cap for Kabuflex-R / S each loosely packed



Size: 110

Type: ENDKAPPE110
Quantity: 1 unit.

Lieske Part No.: 661473
Mfg Part No: 19970110
Type: Kabuflex-V-Kappe 110
6,34 EUR 6,60 EUR
Fränkische Rohrwerke 19970110 plus VAT
≈ £5.31  |  ≈ $6.97
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
