Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string

Your rating:
Average rating
product review for Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string
( 4.4 / 5 ) 29 ratings
Fränkische Rohrwerke 19210090
This image may differ from the desired article.
Fränkische Rohrwerke 19210090Fränkische Rohrwerke 19210090Fränkische Rohrwerke 19210090
644,10 EUR 671,22 EUR
( 766,48 EUR incl. VAT )
≈ £539.11  |  ≈ $707.87
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Sales unit: 50 meters
In Stock: 3 meters
1x Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string
Datasheet:file_download Download
Lieske Part No.:345367
Mfg Part No: 19210090
UPC/EAN: 4013960362763
Weight:21.5 kg
Type:Kabuflex R plus 90
Graduated prices net
From piecesPrice per meters
3605,45 EUR
6566,81 EUR
9528,16 EUR
12489,52 EUR

Product information for Fränkische Rohrwerke 19210090:

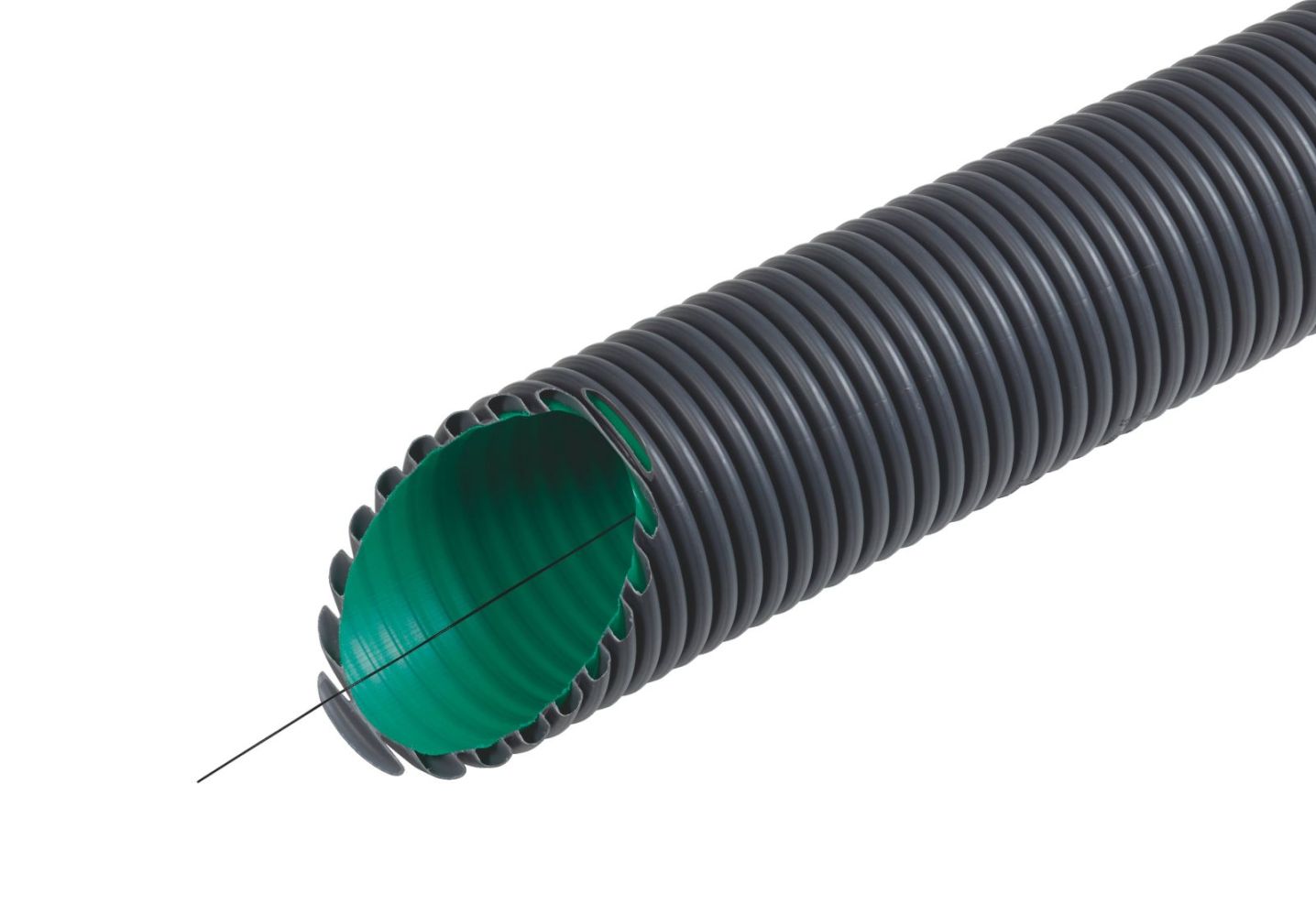

The Kabuflex R plus 90 from Fränkische Rohrwerke is a flexible cable protection conduit made of polyethylene (PE) in black, specifically designed for underground installation. The product features a composite construction, with a green inner layer that facilitates cable insertion. The surface is externally corrugated and internally smooth, optimizing handling and cable transport. The conduit is halogen-free and complies with pressure rating Type 450 and impact resistance Normal according to DIN EN 61386-24, ensuring high mechanical stability under soil loads and during transportation. The classification code N450 identifies the product category and the associated requirements for strength and installation properties.

Applications
Kabuflex R plus 90 is primarily used for underground installation of electrical or communication cables. It is suitable for installations in soil, particularly in areas requiring high mechanical load capacity and long-term stability. Applications include cabling for outdoor installations, industrial environments, road and path construction, or building technology, where cables are laid under concrete, screed, or outdoors. The material composition and construction ensure high resistance to environmental influences such as moisture, soil changes, and mechanical stresses.

Functions and Equipment in Detail
The cable protection conduit has an inner diameter of 75 mm and an outer diameter of 90 mm. Its flexible structure allows for flexible installation, with the minimum bending radius specified at an ambient temperature of 20 °C. At lower temperatures, it is recommended to increase the bending radius to avoid material fractures. The product is supplied in 50-meter coils, including a pull string and a transparent double socket coupling, enabling a sand-tight connection. The double socket coupling is designed for easy and secure connection of conduit sections.

Technology Explained Simply
The green inner layer of the conduit reduces friction resistance during cable insertion, reducing labor effort and minimizing the risk of cable damage. The PE material composition ensures high chemical resistance against various environmental factors, such as water, mineral oils, milk, fruit juice, or soap solutions. However, the product is not resistant to aggressive chemicals such as hydrochloric acid, sulfuric acid, or benzene. The pressure rating Type 450 indicates that the conduit is designed for a specific load class, typically encountered in underground installations. The impact resistance Normal ensures mechanical stability during transport and installation.

Compatibility and Accessories
Various accessories are available to extend functionality. This is particularly relevant for applications requiring high watertightness, for example in wet or damp soils. Additional components such as wall penetrations, end caps, sealing rings, or reducers are also available to adapt the installation to different conditions. The connection elements are designed to ensure secure and durable installation.

Installation and Mounting
Installation is performed by connecting conduit sections using the integrated double socket coupling. The pull string facilitates cable pulling through the conduit. During installation, care must be taken not to undershoot the bending radius, especially at low temperatures. Connection with the profile sealing ring requires professional installation to ensure watertightness up to 0.5 bar. Installation typically occurs in soil, with conduits laid at an appropriate depth to adequately protect against mechanical loads and environmental influences.

Operational Advantages
Kabuflex R plus 90 offers high mechanical strength and chemical resistance, enabling long service life and low maintenance frequency. The halogen-free composition reduces the formation of toxic smoke gases in case of fire. The green inner layer and pull string reduce labor effort during cable insertion. The availability of accessories such as sealing rings and end caps allows flexible adaptation to different installation scenarios. The Environmental Product Declaration (EPD) documents the ecological characteristics of the product, where the designation “co2ntrol” does not indicate CO₂ reduction of the product. Conformity with DIN EN 50626-1 and VDE 0605 ensures the quality and safety of the product.

The item price shown refers to 50 meters Fränkische Rohrwerke 19210090
Delivery form
Minimum quantity50
Pallet content132
Base unit quantityMetre
Technical data
MaterialPlastic
Surface protectionUntreated
ColourBlack
Pipe inner colourGreen
ModelPliable
ShapeOuter side ribbed, inner side plain
Inner diameter75 mm
Outer diameter90 mm
Impact resistance per EN 61386-24Normal
Pressure resistance per EN 61386-24Type 450
Surface polishedNo
TransparentNo


Product data sheet
Datasheet for Fränkische Rohrwerke 19210090, EAN: 4013960362763

Questions & answers

What is the delivery time of Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string ?

The article Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 19210090 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 meters of Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string we can offer you a price of 605,45 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 19210090 Fränkische Kabuflex R plus 90 flexible in 50 m coils with pull string is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
