Fränkische Rohrwerke Logo

Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string

Your rating:
Average rating
product review for Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string
( 4.5 / 5 ) 32 ratings
Fränkische Rohrwerke 19210063
This image may differ from the desired article.
Fränkische Rohrwerke 19210063Fränkische Rohrwerke 19210063Fränkische Rohrwerke 19210063
437,47 EUR 455,90 EUR
( 520,59 EUR incl. VAT )
≈ £366.16  |  ≈ $480.78
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 50 meters
1x Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string
Datasheet:file_download Download
Lieske Part No.:547621
Mfg Part No: 19210063
UPC/EAN: 4013960362749
Weight:13.5 kg
Type:Kabuflex R plus 63
Graduated prices net
From piecesPrice per meters
4398,10 EUR
8358,73 EUR
12319,35 EUR
16279,98 EUR

Product information for Fränkische Rohrwerke 19210063:

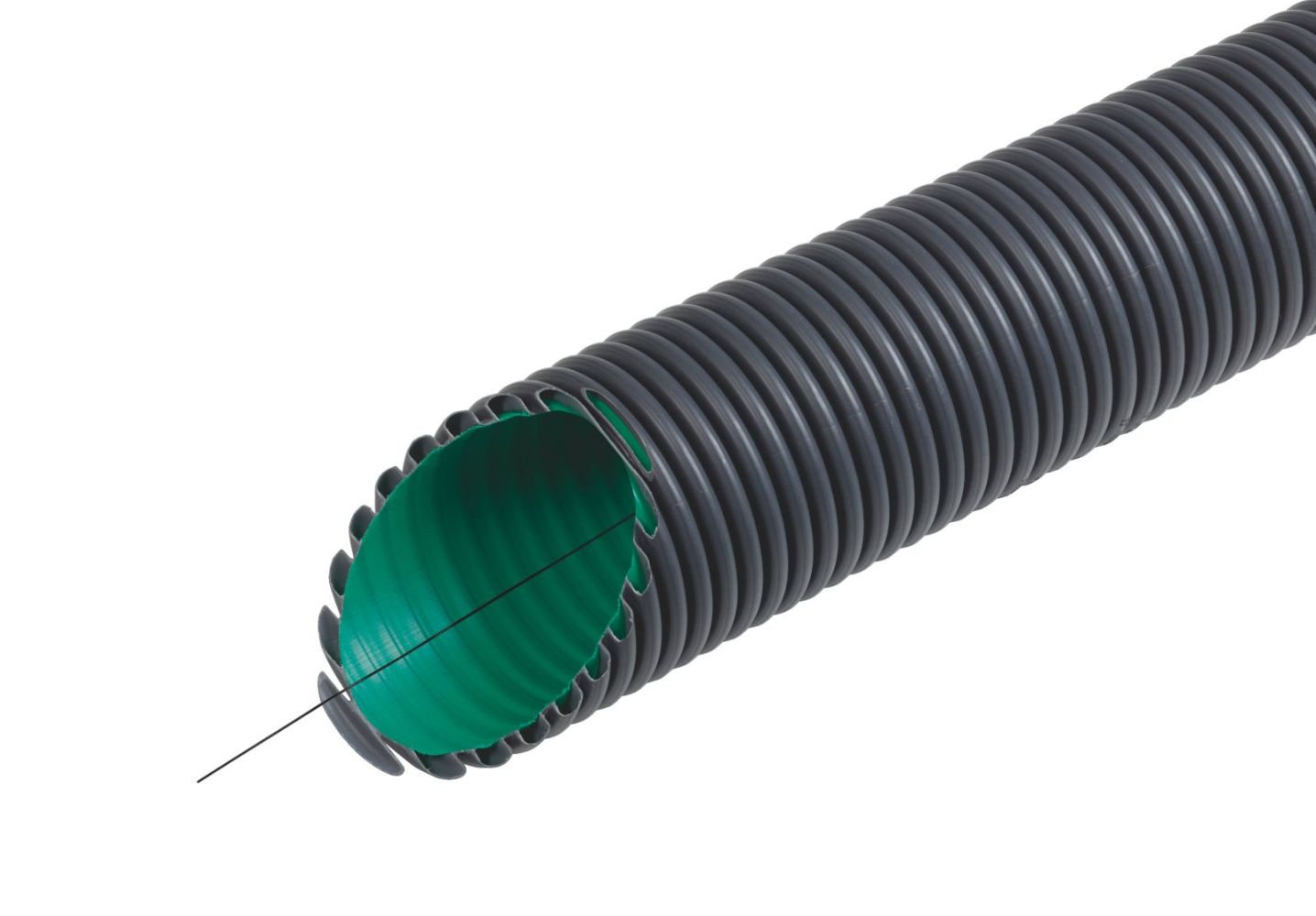

The Kabuflex R plus 63 from Fränkische Rohrwerke is a flexible cable protection conduit made of PE-HD, designed for underground installation. The product is supplied in 50-m coils and is black in colour. It features a composite construction with a green inner layer, which facilitates cable pulling. The halogen-free conduit is designed for pressure loading type 450 and has an impact resistance of category Normal. The classification code is N450. The conduit is equipped with a pull string to assist with cable insertion. Additionally, a transparent double socket coupling is fitted, enabling a sand-tight connection. The product is EPD-certified, which includes an environmental product declaration. The designation 'co2ntrol' does not refer to a statement about CO2 reduction of the product. The standards VDE 0605 and DIN EN 50626-1 (until 21.07.2026 DIN EN 61386-24) apply to the product.

Applications
The Kabuflex R plus 63 is specifically designed for underground cable installation. It is suitable for applications in the electrical and telecommunications industries, where a stable, pressure-resistant, and flexible protective sheath for cables is required. The sand-tight connection provided by the double socket coupling ensures secure installation in uneven or sandy soils. The watertight connection up to 0.5 bar, achievable with the optional profile seal ring, makes the conduit suitable for areas with increased moisture exposure.

Functions and Equipment in Detail
The cable protection conduit features a green inner layer that reduces friction during cable pulling, thereby reducing the effort required. The pull string, included in the delivery scope, further facilitates cable insertion. The transparent double socket coupling, which is fitted, ensures a sand-tight connection between conduit sections. The conduit is halogen-free, meaning that in the event of a fire, the smoke gases have lower toxicity.

Technology Explained Simply
The Kabuflex R plus 63 is made of PE-HD (polyethylene high density), a robust plastic known for its high pressure resistance and chemical resistance. Pressure loading type 450 means the conduit is designed for a specific load in underground applications, typically encountered during installations under roads or in areas with low to medium traffic load. Impact resistance Normal refers to the resistance against mechanical stress, particularly against impact loads. The composite construction with the green inner layer ensures a smooth inner surface, facilitating cable insertion. The EPD certification documents the environmental impacts of the product over its life cycle.

Compatibility and Accessories
The conduit is equipped with a fitted transparent double socket coupling, enabling a sand-tight connection. The connection technology is compatible with common installation techniques for underground use. The product is suitable for cable installation in the electrical and telecommunications industries.

Installation and Mounting
Mounting is performed by connecting conduit sections using the fitted double socket coupling. The pull string facilitates cable insertion. Installation takes place underground, with proper installation ensuring that the watertight connection up to 0.5 bar is achieved.

Operational Advantages
The Kabuflex R plus 63 offers high pressure resistance and stability, ensuring a long service life underground. The halogen-free composition reduces toxicity in the event of a fire. The green inner layer and pull string simplify cable insertion and reduce labour effort. The sand-tight connection provided by the double socket coupling ensures secure installation in uneven soils. The EPD certification documents the environmental impacts of the product.

The item price shown refers to 50 meters Fränkische Rohrwerke 19210063
General
Product typeCable protection conduit
MaterialPE-HD
ColourBlack
Pressure loadType 450
Impact strengthNormal
Classification codeN450
Environmental Product DeclarationEPD-certified
Compositionhalogen-free
Type of delivery50-m ring
Inner layerGreen
Double socket connectortransparent, mounted on
ConnectionSand-proof
Waterproof connectionup to 0.5 bar
AccessoriesProfile seal ring available separately
StandardsVDE 0605, DIN EN 50626-1 (until 21.07.2026 DIN EN 61386-24)
Delivery form
Minimum quantity50
Pallet content132
Base unit quantityMetre
Technical data
MaterialPlastic
Surface protectionUntreated
ColourBlack
Pipe inner colourGreen
ModelPliable
ShapeOuter side ribbed, inner side plain
Inner diameter52 mm
Outer diameter63 mm
Impact resistance per EN 61386-24Normal
Pressure resistance per EN 61386-24Type 450
Surface polishedNo
TransparentNo


Product data sheet
Datasheet for Fränkische Rohrwerke 19210063, EAN: 4013960362749

Questions & answers

What is the delivery time of Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string ?

The article Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Fränkische Rohrwerke 19210063 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string always at the best possible price. We can give you a discount of 2% on Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 meters of Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string we can offer you a price of 398,10 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Fränkische Rohrwerke 19210063 Fränkische Kabuflex R plus 63 flexible in 50 m coils with pull string is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
