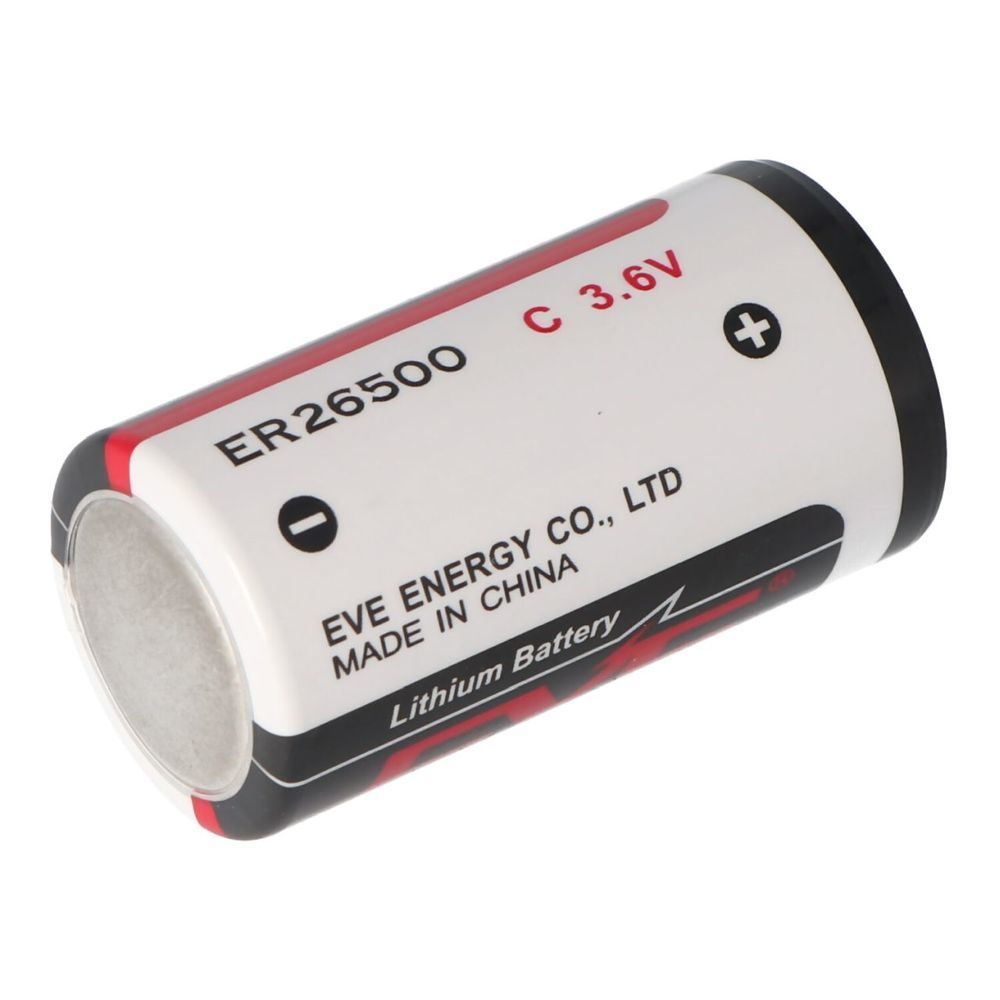

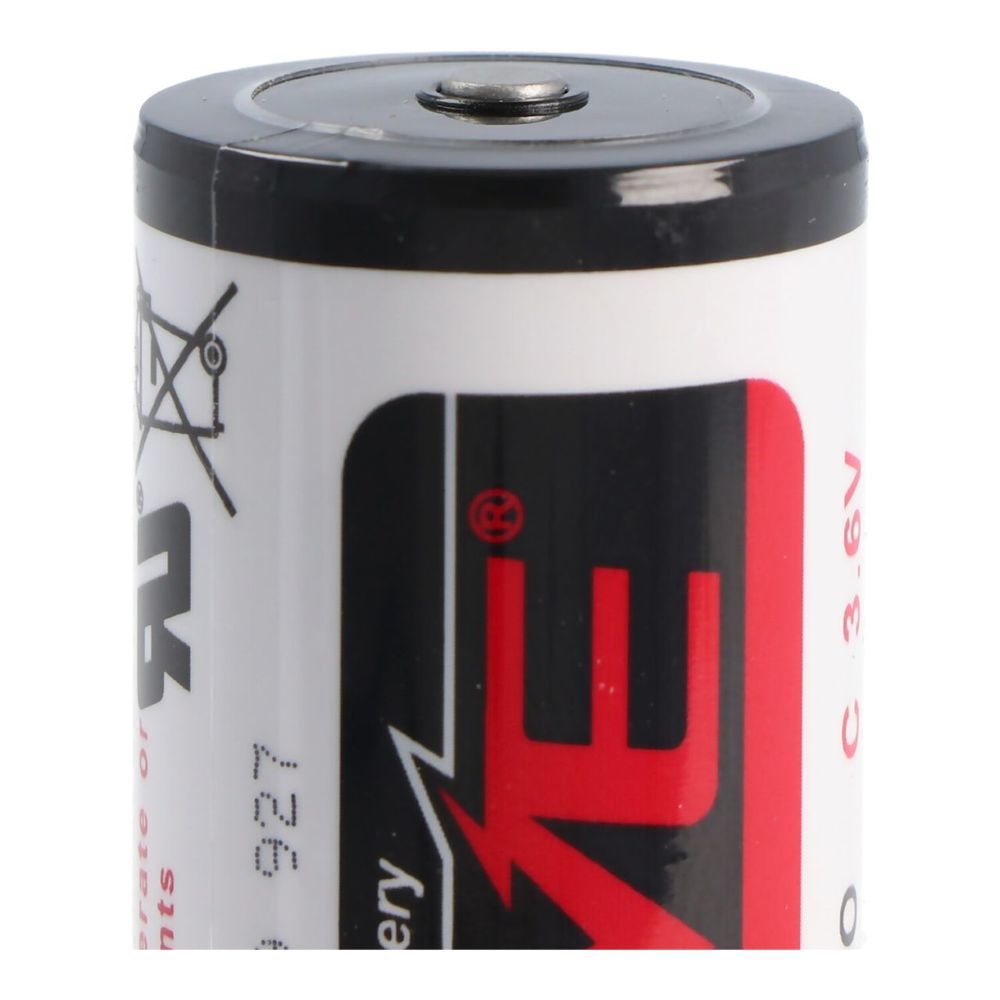

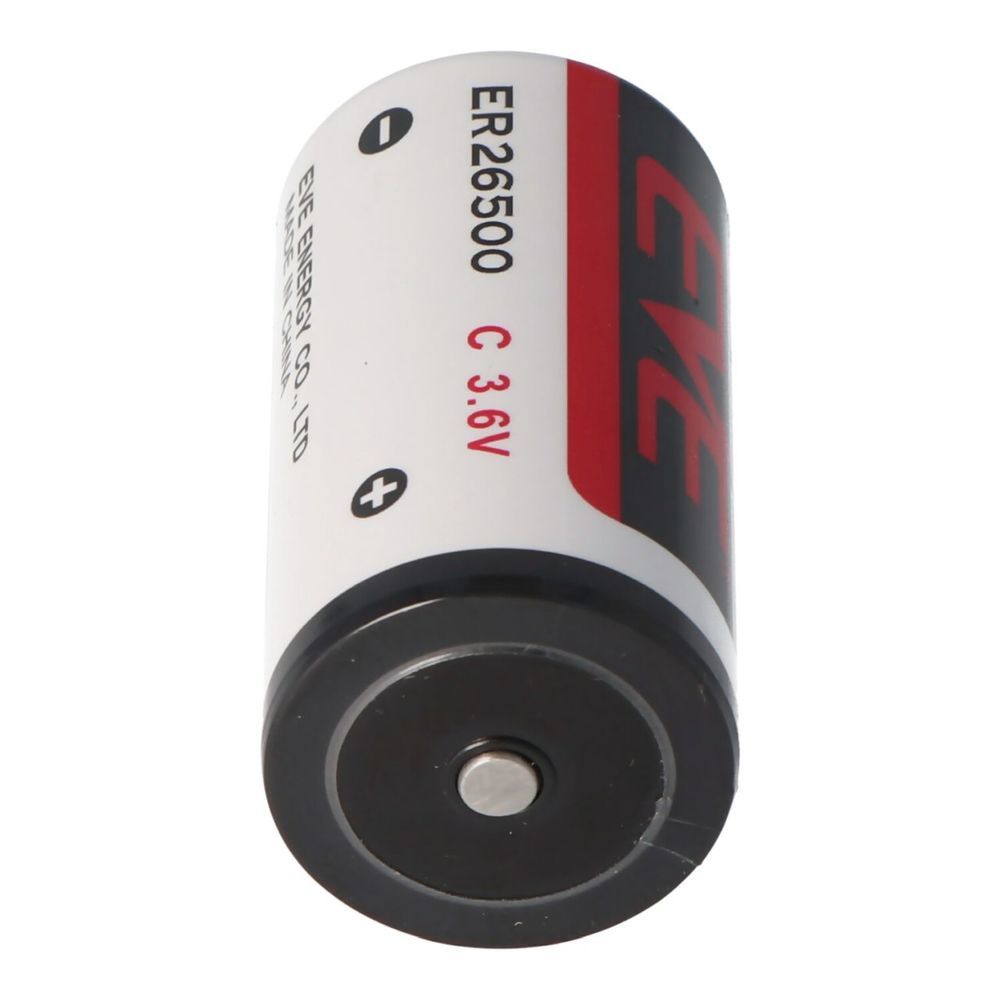

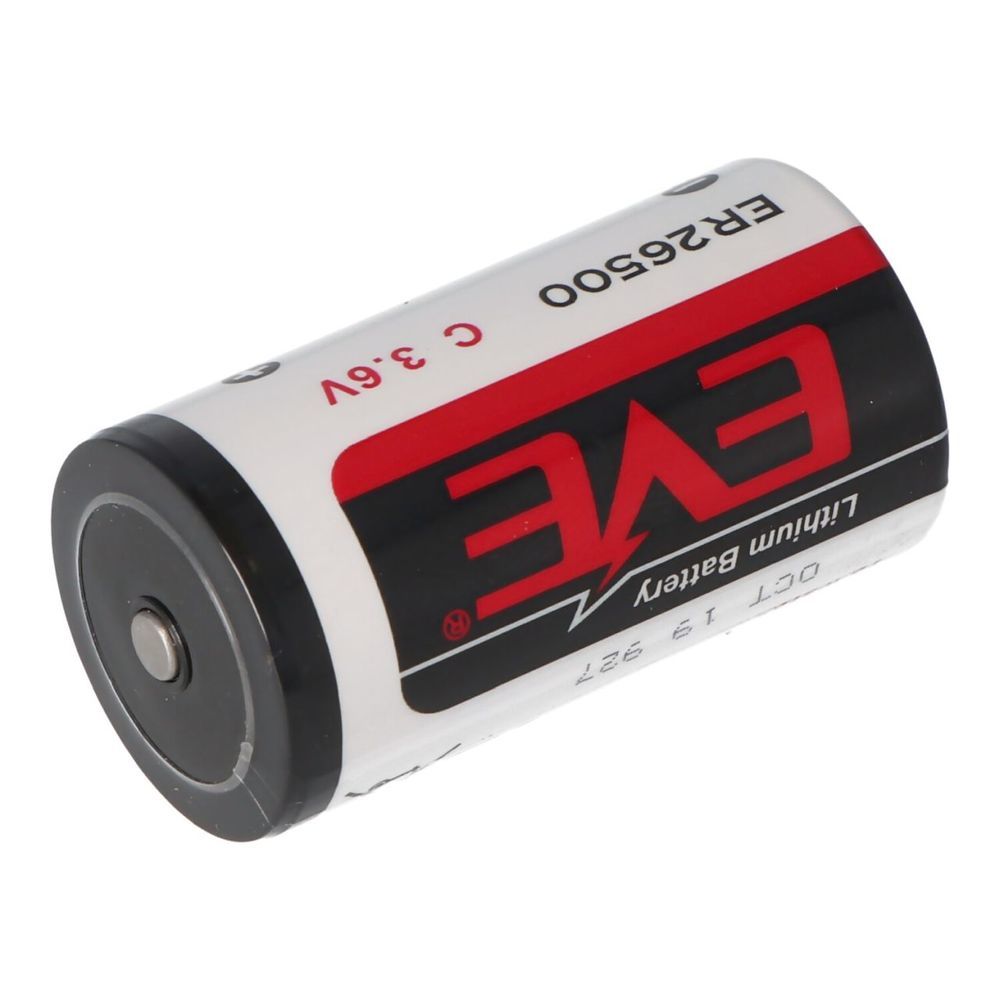

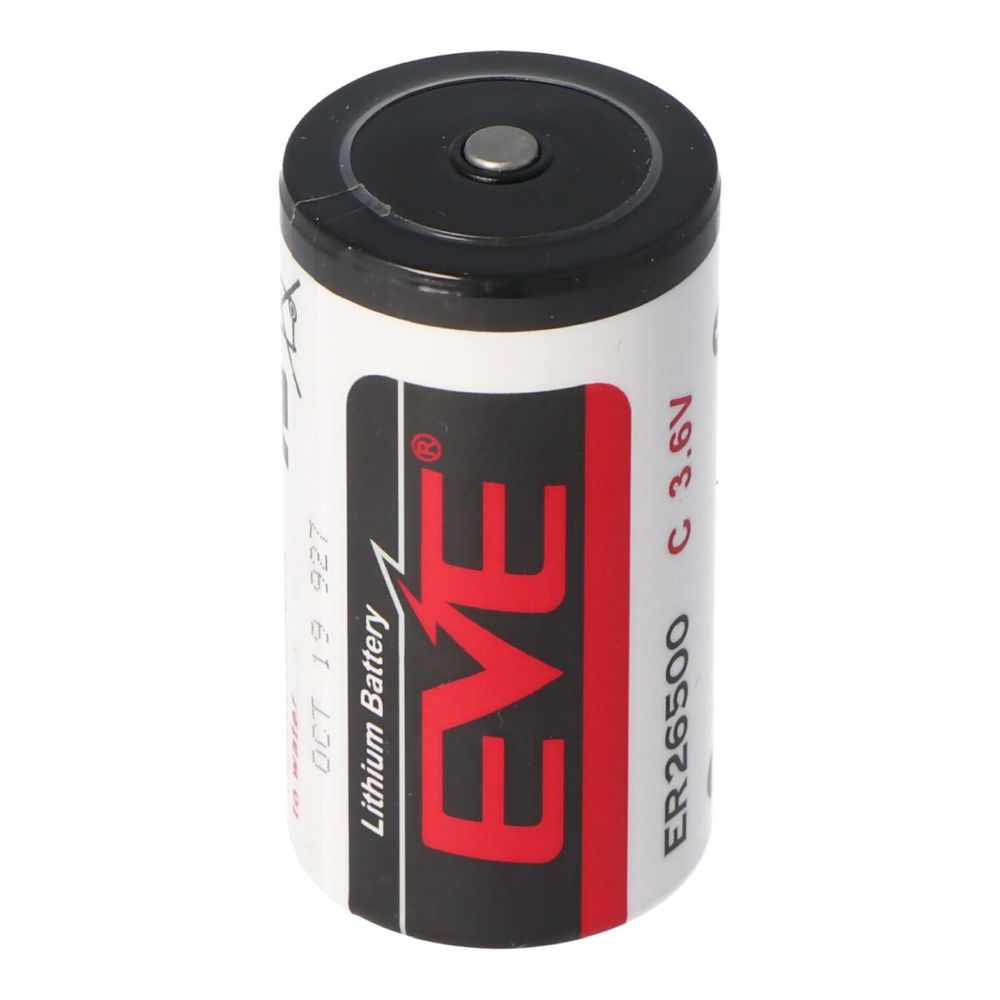

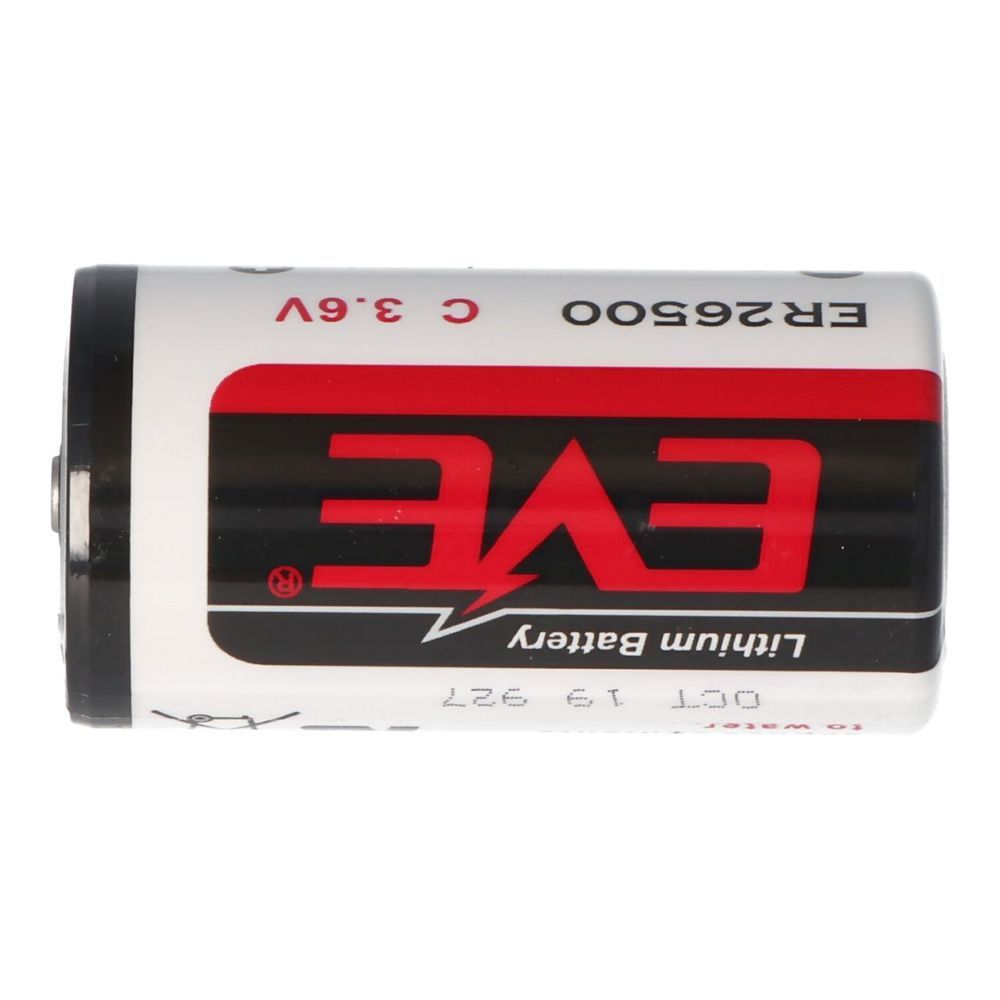

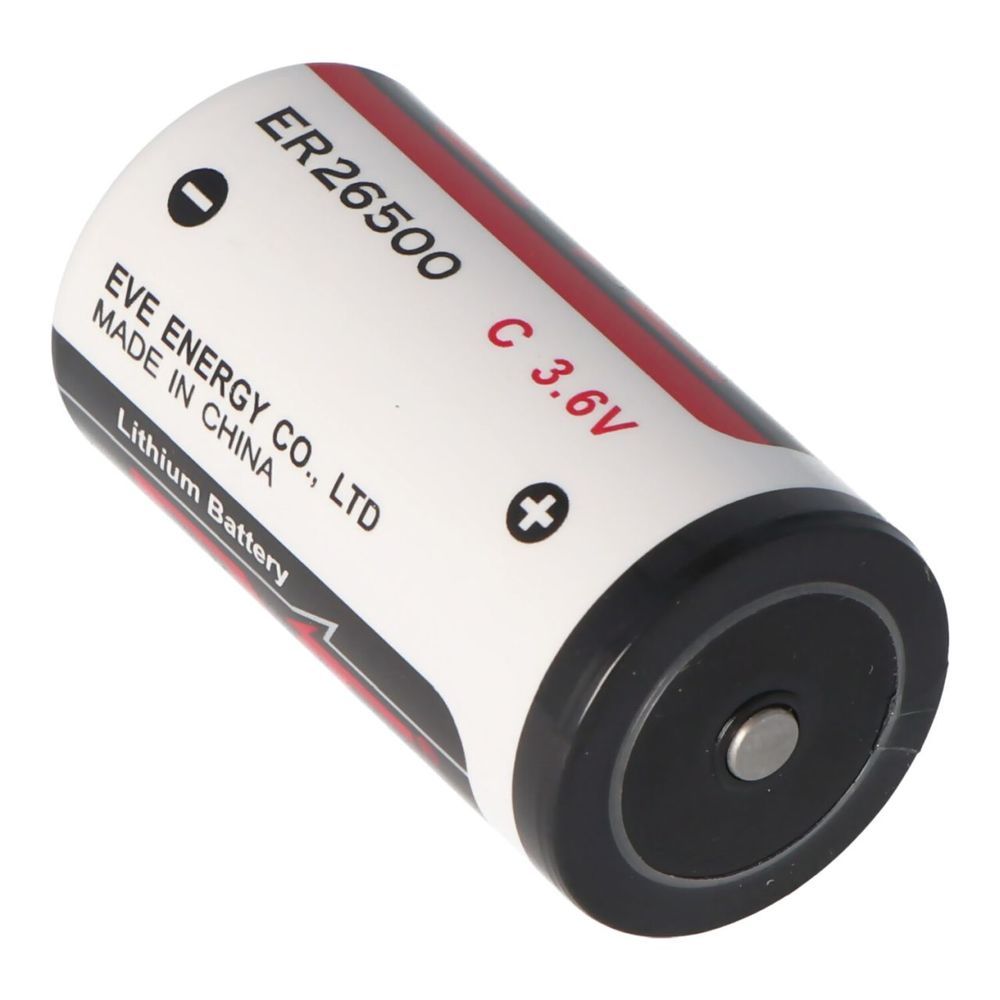

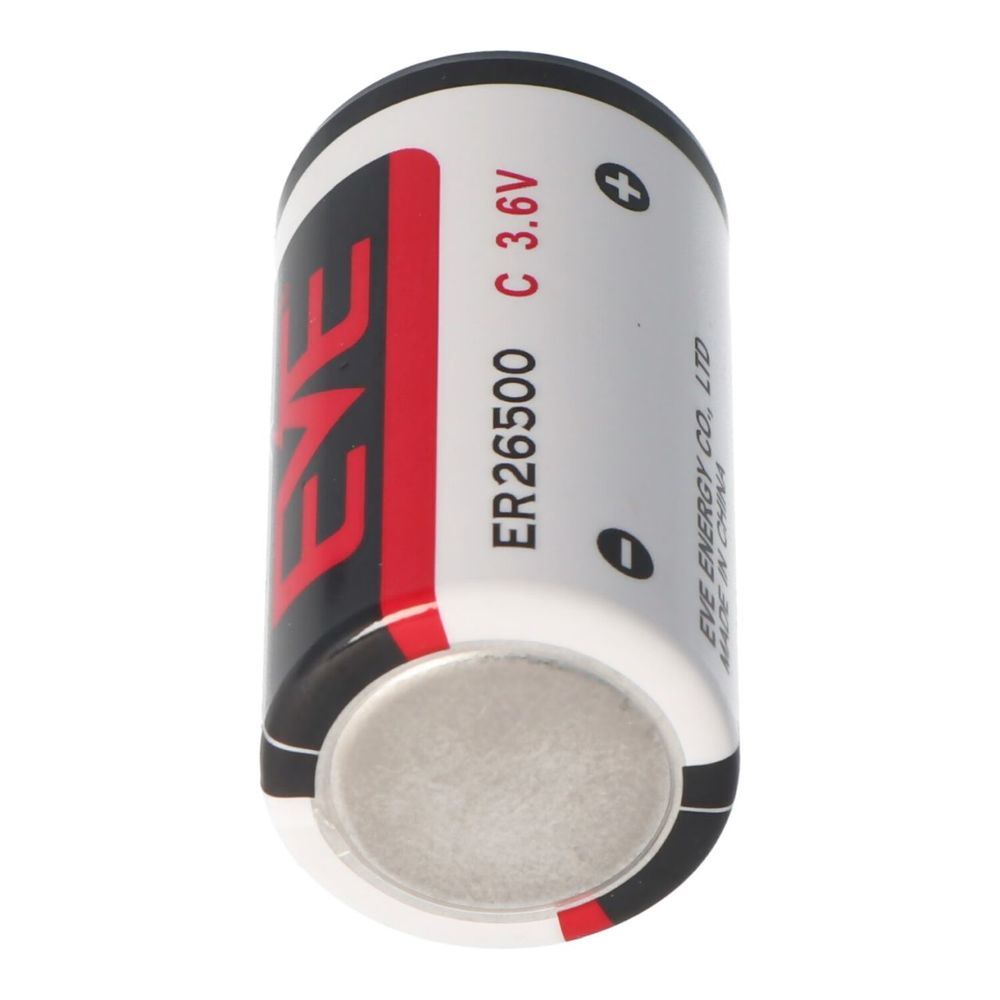

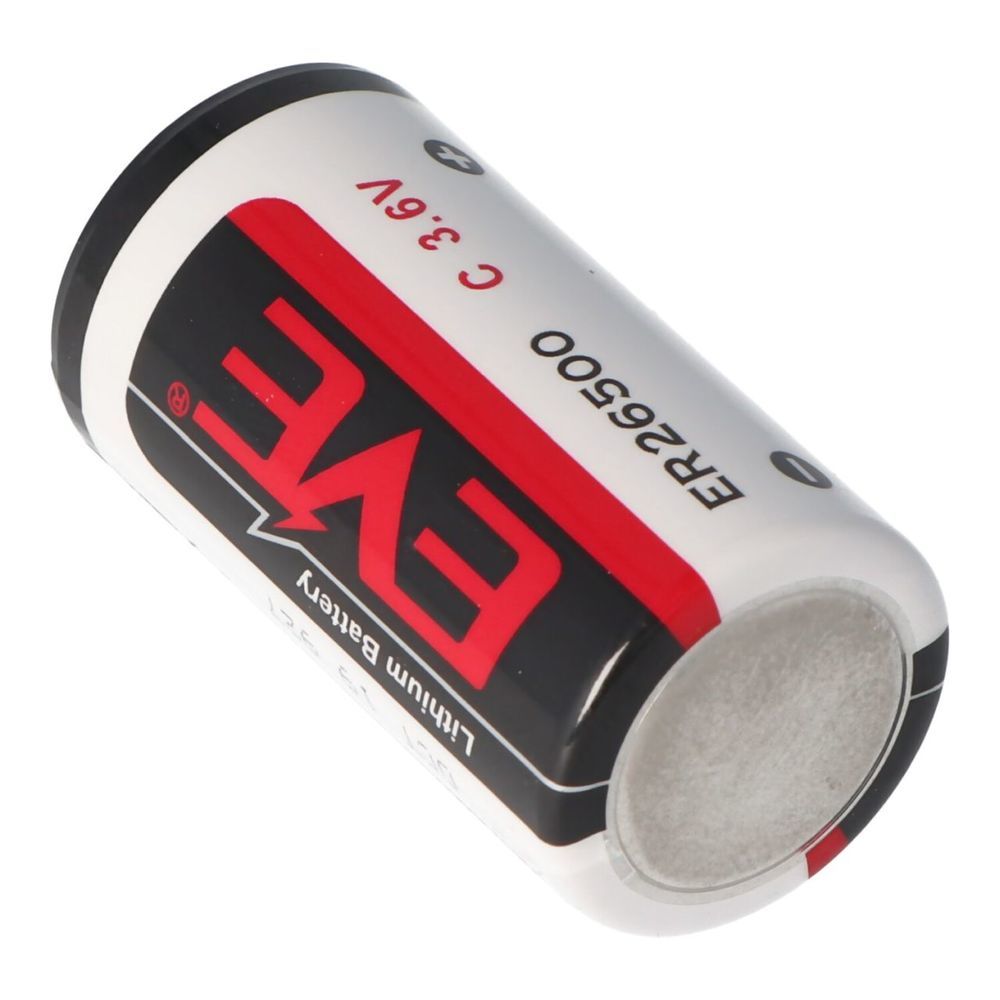

Eve Energy ER26500
Battery IoT 3.6V 8500mAH *EVE*C Size Bobbin Lithium battery with narrow positive pole min. 0.3mm, max. 0.5mm

Product information ER26500 Lithium Battery C Size Bobbin ER 26500, 3.6 Volt 8500mAh with narrow positive pole min. 0.3mm, max. 0.5mm ER26500 Lithium Battery C Size ER 26500, 3.6 Volt 8500mAh
The new Lithium ER26500 C- Size standard battery with 3.6 volts and up to 8500mAh capacity. It has a length of 50mm and a diameter of 26.5mm and weighs just 55grams. Can be stored for up to 10 years, disposable lithium battery, not rechargeable. Standard discharge current 2.0mA, max. recommended discharge current 200mA. Also suitable as a replacement battery ER26500, E EMB ER26500 e.g. for gate drives, eemb ER26500 The ER26500 is characterized by a high operating voltage and ensures the greatest possible stability. It also impresses with its wide temperature range from -55 degrees °C to +85 degrees °C. Thanks to all the features, the ER26500 is predicted to have a long service life and high reliability; under optimal conditions, it can provide up to 10 years of performance. Very low self-discharge rate of approx. 1%. Its internal bobbin structure makes it ideal for almost all applications with low or very low discharge currents such as remote controls, CMOS memory backup, measuring devices, PC real-time clocks, medical devices, gas measuring devices, alarm sensors and other electronic devices with low up to very low loads.Technical data Model: ER26500 (C Size) IEC ER26500 Lithium:System Lithium Thionyl Chloride Battery Disposable Bobbin Design, voltage 3.6 volts
, capacity 8500mAh, dimensions 50x26.5mm, cell size C Baby LR14,
weight 55 grams, standard Discharge Current: 2mA
Capacity: 8.5Ah (@2.0m A Discharge Current to 2.0V Cut-off, +23°C), ISO9001 Certified, UL Certified MH20555
Maximum recommended current under continuous discharge 200mA
Maximum recommended current under pulse discharge 400mA Further information:
The Lithium ER26500 standard battery C-Size with 3.6 volts and a capacity of up to 8500mAh is a classic disposable lithium battery and cannot be recharged after use. With a diameter of 26.5 mm and a length of 50 mm, it weighs just 55 g and can be stored for up to 10 years. The standard discharge current of the ER26500 is 2.0 mA and the recommended discharge current is max. 200mA.
The ER26500 ensures maximum stability and impresses with its high operating range. It also offers a wide temperature range, ranging from - 55 degrees °C to + 85 degrees °C. Due to these excellent properties, the disposable lithium battery not only has a high level of reliability, but also a long service life, meaning that it offers more than 10 years of performance under optimal conditions. In addition, the self-discharge rate is extremely low and is just around 1 percent. The disposable lithium battery ER26500 has a bobbin structure in its internal structure and is therefore ideal for almost all applications with very low or low discharge currents such as measuring devices, CMOS memory backup and remote controls but also for gas measuring devices, medical devices and alarm sensors and PC real-time clocks and for other electronic devices with low to very low loads.Technical details: Technical data - ER26500 lithium battery C size bobbin ER 26500, 3.6 volts 8500mAh with narrow positive pole min. 0.3mm, max. 0.5mm Product type: Battery Voltage V: 3.6 Capacity mAh: 8500 Capacity Wh: 30.6 Design: 14A, AM2, BA3042, C - Baby LR14, E93, KC, LR14, LR15, R14, U7522, UM2 suitable for manufacturer/brand: Universal
