Euchner 084275 TP4-4141A024M safety switch

Your rating:
Average rating
product review for Euchner 084275 TP4-4141A024M safety switch
( 4.5 / 5 ) 86 ratings

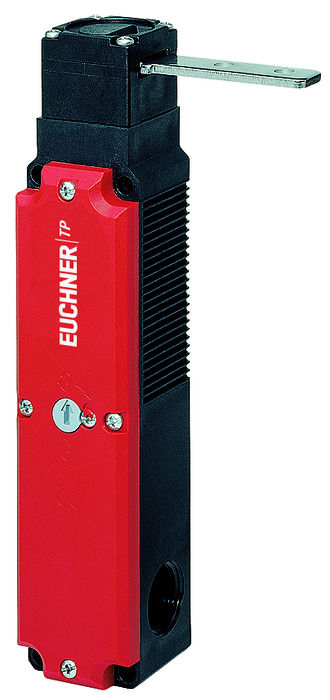

Euchner 084275
This image may differ from the desired article.
294,63 EUR 307,04 EUR
( 350,61 EUR incl. VAT )
≈ £246.61  |  ≈ $323.80
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Euchner 084275 TP4-4141A024M safety switch
Lieske Part No.:1237621
Mfg Part No: 084275
Weight:0.123 kg
Type:TP4-4141A024M
Graduated prices net
From piecesPrice per pieces
4283,58 EUR
8272,53 EUR
12261,48 EUR
16250,44 EUR

Product information for Euchner 084275:

The safety switch TP4-4141A024M from Euchner, manufacturer's number 084275, is a mechanical safety component for use in industrial plants, particularly in machines with moving parts, where safe disconnection is required upon opening of protective covers. It functions as a safety switch that interrupts the power supply to machine parts as soon as a protective door is opened, to prevent injury risks.

Auxiliary unlocking on the front side
The switch features an auxiliary unlocking mechanism on the front side, allowing the switch to be manually unlocked in certain operating conditions without having to shut down the entire machine. This function is useful for maintenance work or during tests where a temporary bypass function is required, without fully deactivating the safety function.

With door position contact
Integrated is a door position contact that monitors the position of the protective door. This contact signals whether the door is closed or open and can be integrated into the machine's control system to trigger, for example, a warning message or interrupt operation. The door position contact is thus an integral part of safety monitoring and enables precise state monitoring.

Increased horizontal overtravel
The switch features an increased overtravel in the horizontal direction. This overtravel ensures that the switch is reliably triggered even with slight movement of the protective door or imprecise alignment. The horizontal orientation of the overtravel is suitable for applications where the door is opened in horizontal motion, for example, sliding doors or sliding elements in machine fronts.

Application areas
The safety switch is intended for use in industrial machines and plants, particularly in manufacturing and processing industries, where mechanical protective devices are required. It is suitable for installations where the protective door is frequently opened and closed, and where a reliable safety function is necessary to minimize the risk of accidents.

Functions and equipment in detail
The combination of auxiliary unlocking, door position contact, and increased horizontal overtravel enables flexible and reliable integration into existing safety concepts. The auxiliary unlocking provides a controlled way to enable temporary bypass functionality, while the door position contact ensures state monitoring. The increased overtravel ensures robust triggering even with minor movements, increasing reliability.

Technology explained simply
The switch operates mechanically: when the protective door is opened, the switch is triggered by the door's movement, interrupting the electrical contact. The auxiliary unlocking allows for manual unlocking, which can only be activated in specific operating conditions. The door position contact is an additional sensor that monitors the door position and can be integrated into the control system. The horizontal overtravel ensures sufficient movement freedom to guarantee that the switch is triggered even with slight door displacement.

Similarly, information regarding mechanical dimensions, weight, protection rating, or specific standards the switch complies with is not provided.

Compatibility and accessories
The switch is used in conjunction with protective doors and safety control systems integrated into the respective installation.

Mounting and installation
Mounting is carried out on the protective door or machine housing, with positioning such that the switch is triggered when the door is opened. Installation is performed within the context of the specific machine construction and safety requirements.

Advantages in operation
The switch provides a reliable safety function through mechanical triggering upon door opening. The auxiliary unlocking enables controlled maintenance without shutting down the entire machine. The door position contact ensures precise state monitoring, and the increased horizontal overtravel enhances the robustness of triggering. These features contribute to safety and efficiency in operation.

General
Auxiliary unlockingon the front side
Coast-downenlarged horizontal


Questions & answers

What is the delivery time of Euchner 084275 TP4-4141A024M safety switch ?

The article Euchner 084275 TP4-4141A024M safety switch is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Euchner 084275 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Euchner 084275 TP4-4141A024M safety switch always at the best possible price. We can give you a discount of 2% on Euchner 084275 TP4-4141A024M safety switch if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Euchner 084275 TP4-4141A024M safety switch we can offer you a price of 283,58 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
