ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole

Your rating:
Average rating
product review for ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole
( 4.5 / 5 ) 13 ratings

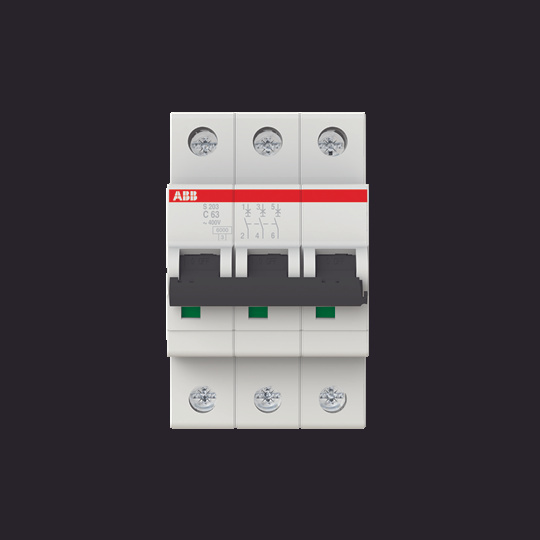

ESL 2CDS253001R0634
This image may differ from the desired article.
ESL 2CDS253001R0634ESL 2CDS253001R0634ESL 2CDS253001R0634
292,60 EUR
( 348,19 EUR incl. VAT )
≈ £244.91  |  ≈ $321.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole
Lieske Part No.:368718
Mfg Part No: 2CDS253001R0634
UPC/EAN: 4016779551076
Weight:0.36 kg
Type:S203-C63
Graduated prices net
From piecesPrice per pieces
4272,85 EUR
8253,10 EUR
12233,35 EUR
16213,60 EUR

Product information for ESL 2CDS253001R0634:

The S203-C63 circuit breaker from ESL belongs to the S 200 series and serves the protection function of electrical cables and lines against overload and short circuit. It is designed for use in installation systems and complies with relevant standards and construction regulations, including DIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, as well as UL1077. These approvals ensure the device's suitability for various markets and application areas.

Applications

The switch is intended for use in electrical distribution systems, particularly in buildings and industrial facilities, where reliable protection of circuits is required. It protects lines against thermal overload and short-circuit currents, thereby preventing damage to the installation and reducing fire hazards. Compliance with the mentioned standards ensures conformity with applicable safety and quality requirements.

Functions and Equipment in Detail

The S203-C63 is a 3-pole circuit breaker with a rated current of 63 A. It features a patented connection terminal that enables simple and secure contact. The terminal is operated via a pressure plate, which speeds up installation and ensures a reliable connection. The cable entry opening is positioned above the phase bar entry opening, facilitating wiring and improving visibility during installation. The terminal allows direct connection of conductors with cross-sections up to 35 mm², with insulation in the terminal area maintained at protection class IP20.

Technology Explained Simply

The protection function of the device is based on a thermal-magnetic tripping mechanism. In case of overload, a bimetal strip heats up and trips the switch when a certain temperature is reached. In case of short-circuit currents, a magnetic tripping device reacts quickly to the high current flow and disconnects the contacts. The combination of both principles ensures precise and fast protection. The protection class IP20 means the device is protected against contact with fingers and against solid foreign objects with a diameter of at least 12.5 mm, but not against water or dust.

Compatibility and Accessories

The device is compatible with various accessories that support installation and operation. Suitable accessories include the row terminals CMS-102PS and CMS-101PS, which are suitable for secure and fast connections in row installations. These terminals enable efficient wiring in distribution boxes and increase the reliability of electrical connections.

Mounting and Installation

Mounting is carried out in standard distribution boxes, where the patented connection terminal enables simple and secure fastening of the cables. The positioning of the connection openings facilitates the installer's work, especially in complex wiring configurations. The terminal is designed for conductor cross-sections up to 35 mm², ensuring broad applicability in various installation scenarios.

Advantages in Operation

The S203-C63 offers high reliability through triple quality inspection before delivery. The patented connection terminal reduces installation time and minimizes error sources. Compliance with international standards and approvals enables use in various markets. The clear structure and visible arrangement of connections improve maintainability and safety during operation.

General
Degree of protectionIP20
Nominal current63 A
Number of poles3
Conductor cross section35 mm²
ApprovalsDIN VDE 0100-430, DIN VDE 0100-530, DIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077
Connection typepatented connection terminal with pressure plate


Questions & answers

What is the delivery time of ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole?

The article ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS253001R0634 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole always at the best possible price. We can give you a discount of 2% on ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole we can offer you a price of 272,85 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for ESL 2CDS253001R0634 S203-C63 fuse switch disconnector 63 A 3-pole

ABB 2CCA880102R0001 CMS-102PS terminal block ABB LogoABB 2CCA880102R0001 CMS-102PS terminal block The CMS current sensors are part of the ABB energy monitoring InSite with the control units SCU100 and SCU200. The sensors measure TRMS, AC and DC currents (instantaneous, min/max and hold values) and ...

Lieske Part No.: 875555
Mfg Part No: 2CCA880102R0001
Type: CMS-102PS
62,62 EUR
ABB 2CCA880102R0001 plus VAT
≈ £52.41  |  ≈ $68.82
Made to order · Delivery time approx. 14 workdaysinfo_outline
ABB 2CCA880101R0001 CMS-101PS terminal block ABB LogoABB 2CCA880101R0001 CMS-101PS terminal block The CMS current sensors are part of the ABB energy monitoring InSite with the control units SCU100 and SCU200. The sensors measure TRMS, AC and DC currents (instantaneous, min/max and hold values) and ...

Lieske Part No.: 875562
Mfg Part No: 2CCA880101R0001
Type: CMS-101PS
62,62 EUR
ABB 2CCA880101R0001 plus VAT
≈ £52.41  |  ≈ $68.82
Made to order · Delivery time approx. 14 workdaysinfo_outline
