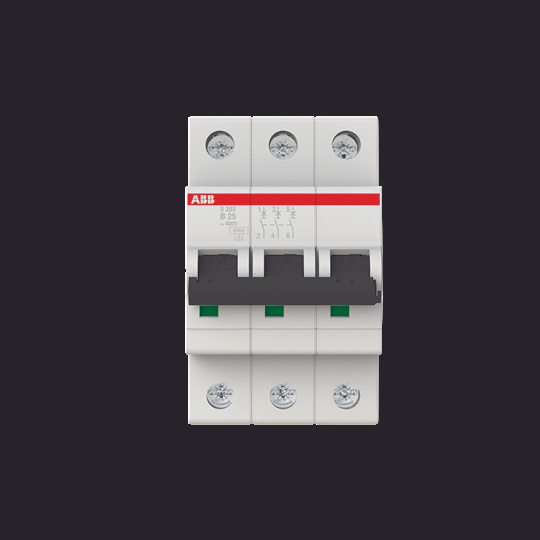

ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic

Your rating:
Average rating
product review for ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic
( 4.6 / 5 ) 7 ratings
ESL 2CDS253001R0255
This image may differ from the desired article.
ESL 2CDS253001R0255ESL 2CDS253001R0255
98,80 EUR
( 117,57 EUR incl. VAT )
≈ £82.70  |  ≈ $108.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic
Lieske Part No.:570688
Mfg Part No: 2CDS253001R0255
UPC/EAN: 4016779469203
Weight:0.428 kg
Type:S203-B25
Graduated prices net
From piecesPrice per pieces
688,43 EUR
1278,05 EUR
2467,68 EUR
3657,30 EUR

Product information for ESL 2CDS253001R0255:

The S203-B25 circuit breaker from the S 200 series by ESL is a 3-pole fuse switch with B characteristic, designed for use in electrical installations. It protects cables and wiring against overload and short-circuit in accordance with standards DIN VDE 0100-430 and DIN VDE 0100-530. The device is intended for installation in System Compact and complies with construction regulations DIN VDE 0641-11 as well as IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2 and UL1077. The patented connection terminal enables simple and secure connection via a pressure plate, simplifying installation and maintenance.

Applications

The S203-B25 is intended for use in electrical distributions within low-voltage installations, particularly in residential and commercial buildings as well as industrial facilities. It protects electrical wiring and consumers against thermal overloads and short-circuits. Compliance with the mentioned standards ensures safe and reliable operation in the network. The approvals according to IEC/EN 60898-1 and IEC/EN 60947-2 make the device suitable for worldwide use.

Functions and Equipment in Detail

The switch features a B characteristic, ensuring selective disconnection in case of overloads and short-circuits. The connection opening for wiring is located above the connection opening for the phase bar, providing better visibility during wiring. Conductor cross-sections up to 35 mm² can be directly connected to the device, with the connection terminal equipped with insulation in protection class IP20. The pressure plate of the connection terminal ensures a secure and durable connection without additional tools.

Technology Explained Simply

The B characteristic means that the switch disconnects at a current of approximately 1.13 times the rated value (here 25 A) within 1 hour, at 1.45 times within 1 minute, and at 5 times within 0.1 seconds. This ensures protection against thermal overload and rapid short-circuits. The protection class IP20 protects against finger contact and solid foreign objects, but not against splashing water or dust. The connection terminal is designed to allow direct connection to conductors without requiring additional tools.

Compatibility and Accessories

The S203-B25 is designed for installation in System Compact and can be combined with various busbars, including PS3/60, PS3/9, PS3/12, and PS3/6 System Compact. The PS3/60 busbar is designed for 10 mm² conductors and can be cut to 60 modules. The 710SPM three-phase set with 10 mm² and a length of 1056 mm is also compatible and serves to connect multiple modules. These accessories enable flexible and modular installation.

Installation and Mounting

Installation is carried out in a suitable distribution box or enclosure that meets the requirements of the respective standards. The connection terminal allows direct connection to conductors up to 35 mm², with insulation in protection class IP20. The positioning of the connection openings (wiring on top, phase bar below) facilitates wiring. The pressure plate of the terminal enables a secure connection without additional tools.

Operational Advantages

The S203-B25 provides reliable protection for electrical wiring and consumers. The patented connection terminal reduces installation time and increases safety. Compliance with international standards and approvals enables use in various markets. The direct connection capability for conductor cross-sections up to 35 mm² reduces the need for additional transition terminals. The B characteristic ensures selective disconnection, limiting the fault to the affected device.

General
Degree of protectionIP20
Nominal current25 A
Number of poles3
CharacteristicB
Max. conductor cross section35 mm²
SystemCompact
ApprovalsDIN VDE 0641-11, IEC/EN 60898-1, DIN VDE 0660-101, IEC/EN 60947-2, UL1077
Connection typePressure plate
CompatibilitySystem Compact, busbars PS3/60, PS3/9, PS3/12, PS3/6, 710SPM three-phase set


Questions & answers

What is the delivery time of ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic?

The article ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ESL 2CDS253001R0255 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic always at the best possible price. We can give you a discount of 2% on ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of ESL 2CDS253001R0255 S203-B25 safety switch 25A System compact 3-pole B-characteristic we can offer you a price of 88,43 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
